6t 10t 12t 15t Hydraulic Mobile Container Forklift Load/Loading Dock Ramp

Jinan Morn Technology Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Telescoping Lift
  • Carrying Capacity：Special Weight Level
  • Moves：Moving
  • Driven Type：Hydraulic
  • Running Mode：Moving

Base Info

  • Model NO.：MDR-10
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Solid Iron Blocks：High Strength Manganese Steel
  • Platform：Anti-Skid
  • OEM：Acceptable
  • Trailing Device：Offer Convenience When Moving
  • Power：Manual or AC or DC
  • Transport Package：40FT Container
  • Specification：11.4*2*1.4m
  • Trademark：MORN
  • Origin：China
  • HS Code：8479899990
  • Production Capacity：100unit,Month

Description

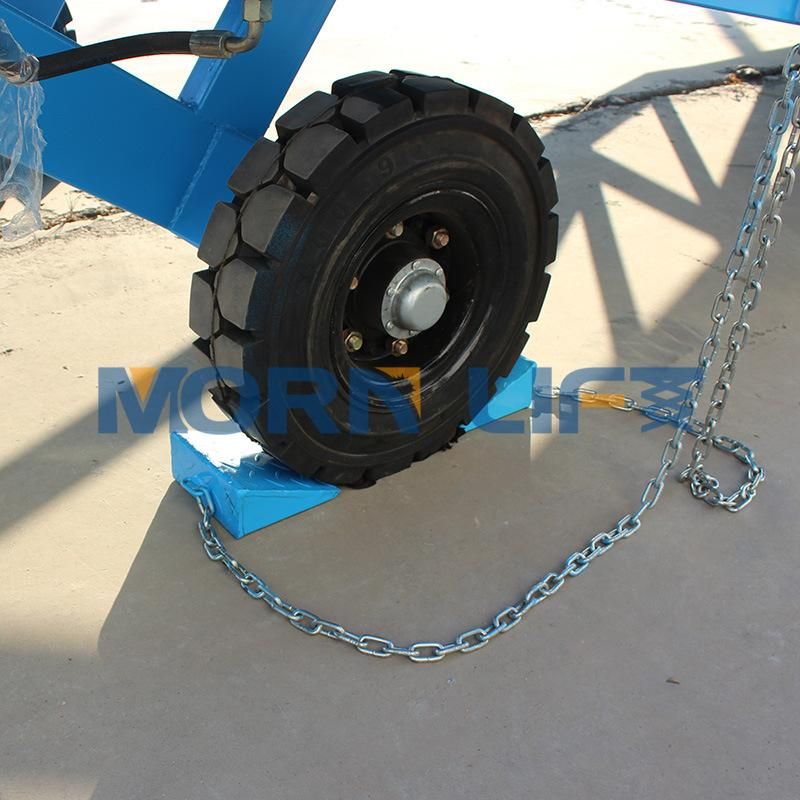

Solid iron blocks



To stabilize the wheels in case the ramp begins to move while working. Guaranteen forklift and worker move safely on ramp.

6t 10t 12t 15t Hydraulic Mobile Container Forklift Load/Loading Dock Ramp6t 10t 12t 15t Hydraulic Mobile Container Forklift Load/Loading Dock Ramp

Trailing device



It joints truck or trailer to move ramp to different work places, convenient and flexible.

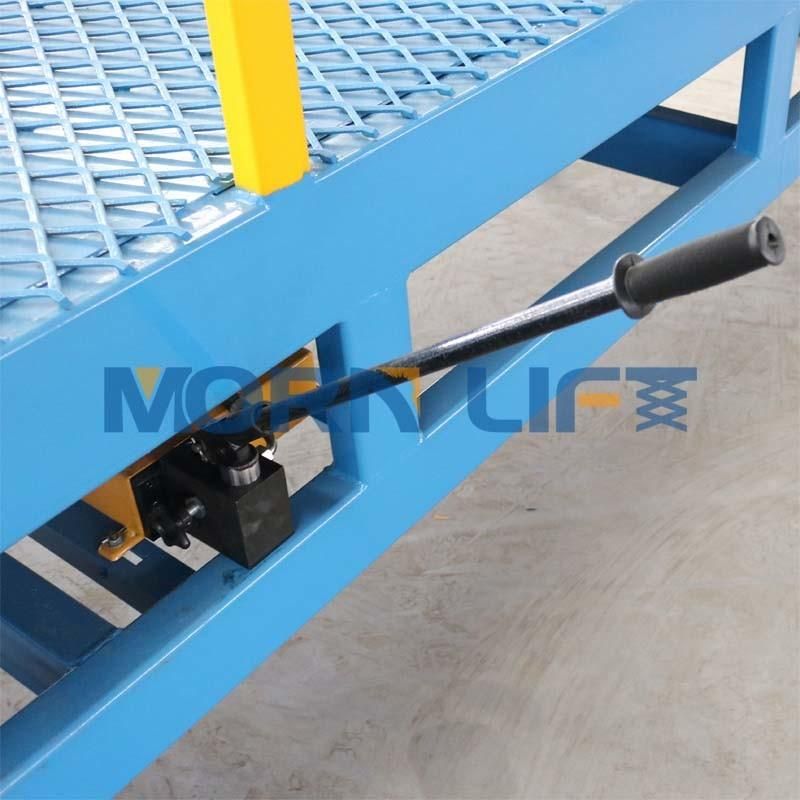

Adjusting bar



It's one hydraulic pump handle, to adjust height of loading ramp. One worker can easily lift up the ramp up to the bottom surface of container or truck.  DC power for option.

6t 10t 12t 15t Hydraulic Mobile Container Forklift Load/Loading Dock Ramp6t 10t 12t 15t Hydraulic Mobile Container Forklift Load/Loading Dock Ramp

Heavy duty legs



Adjustable hegiht, keep safety supporting when the dock ramp is in the non-working state.


2. Standard model list for 5-15ton load:
 MDR seriesLoad(T)Working height(m)Working gradeDimensions(m)Driving forceMDR-550.9 ~ 1.8≤13°11.4*2*1.4Manual or
electric driveMDR-660.9 ~ 1.8≤13°11.4*2*1.4MDR-880.9 ~ 1.8≤13°11.4*2*1.4MDR-10100.9 ~ 1.8≤13°11.4*2*1.4MDR-12120.9 ~ 1.8≤13°11.4*2*1.4MDR-15150.9 ~ 1.8≤13°11.4*2*1.4
3. Safety Precaution:

1.      Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2.      Spillover valve: It can prevent high pressure when the machine moves up.
3.      Emergency decline valve: it can go down when you meet an emergency or the power off.

4. Optional: Folding type to save space:

5. Warranty:

1.      User-friendly English manual for machine using and maintenance.
2.      One year warranty for whole machine without man-made fault
3.      We will send you parts for free if there are any non-human factors problem during warranty time
4.      24-hours technical support by email, telephone or other communication online
5.      We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
