Portable Light Weight Man Lift with 100kg Loading Weight
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Moving
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：TAM0.1-6
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Model No.：Tam0.1-6
- Max Platform Height：6m
- Max Working Height：8m
- Platform Size：0.6*0.6m
- Load Capacity：100kg
- Weight：280kg
- Dimension：1.28*0.80*1.88m
- Voltage：220V, Single Phase, 50Hz
- Wheels：4PCS Solid Rubber Wheel
- HS Code：8428909090, 8428909090
- Transport Package：Plywood Packing
- Specification：1.28*0.80*1.88m
- Trademark：MORN LIFT
- Origin：Shandong, China
- Production Capacity：200 Units Per Month
Description
Working Height
6.7m
8.2m
9.7m
11.2m
12.2m
12.7m
Platform Height
4.7m
6.2m
7.7m
9.2m
10.4m
10.7m
Load Capacity
150kg
150kg
150kg
136kg
136kg
120kg
Platform Size
0.67m x 0.66m
0.67m x 0.66m
0.67m x 0.66m
0.67m x 0.66m
0.67mx0.66m
0.67m x 0.66m
Overall Size
Height
1.97m
1.97m
1.97m
1.97m
1.97m
2.3m
Width
0.81m
0.81m
0.81m
0.81m
0.81m
0.81m
Length
1.35m
1.24m
1.24m
1.28m
1.28m
1.5m
Outrigger Coverage
1.69m x 1.69m
1.69m x 1.69m
1.69m x 1.69m
1.69m x 1.69m
1.8m x
18m
2.2m x
2.2m
Weight
AC
275kg
305kg
335kg
365kg
385kg
455kg
DC
297kg
327kg
357kg
387kg
407kg
477kg
Power
AC
220V/110V
220V/110V
220V/110V
220V/110V
220V/110V
220V/110V
DC
12V
12V
12V
12V
12V
12V
The dull polish platform is safer. It is anti-skid, will protect the user on the platform.
There is a "power" button on the control panel. Press "power" and "up" meanwhile, the lift will go up. This is a safety design to protect the user from suddenly lifting of the user's press the "up" or "down" button negligently.
The vertical mast lift needs to work on the smooth ground. The gradient on the lift helps you to confirm whether it is horizontal.

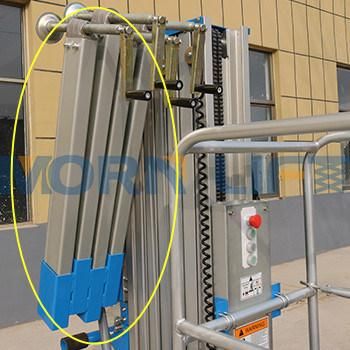

The lift has four support legs when the machine working And the support legs prevent the machine from shaking.
Application:

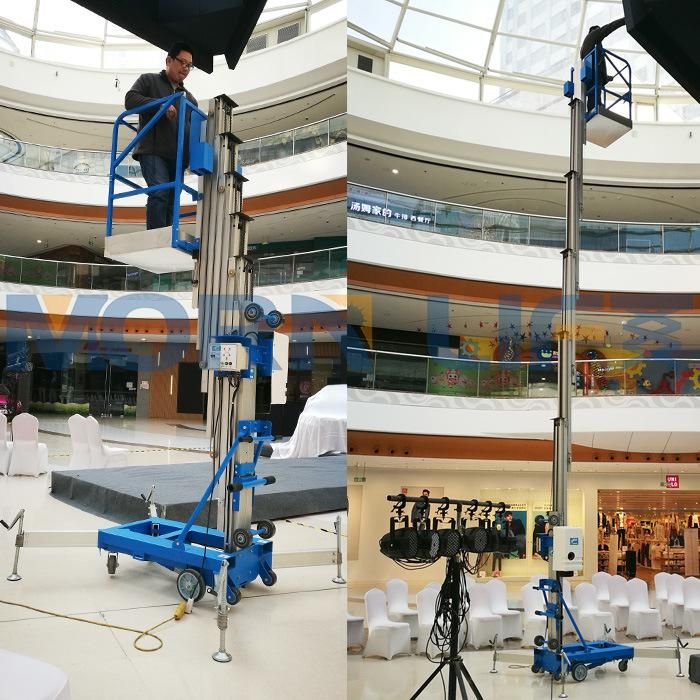

Single mast lift is easy to operate and suitable for one man or two-man operation.
Mainly works for maintenance, installation, electric wiring etc.
The narrow design makes sure it can go in and out the buildings easily.
Such as offices, hotels, shopping malls, workshops and other public places.

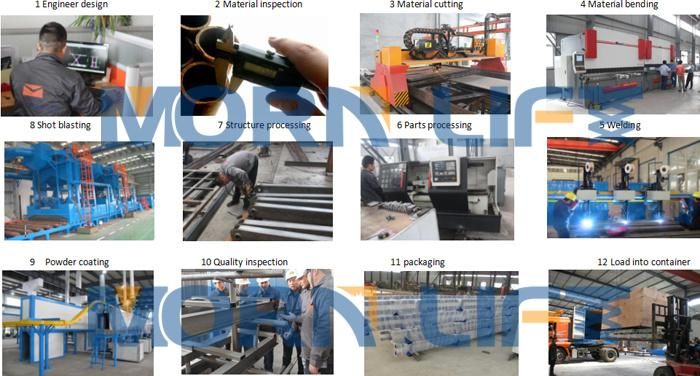

Manufacturing technology & process
1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery.
Contact us freely if you have interest.
The vertical mast lift needs to work on the smooth ground. The gradient on the lift helps you to confirm whether it is horizontal.
