• Model NO.：WL0.25-2.8
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Model：Wl0.25-2.8
• Loading Capacity：250kg
• Max. Lifting Height：2.8m
• Min. Lifting Height：60mm
• Self-Weight：750kg
• Platform Size：1420*900mm
• Warranty：12 Months
• Certificate：Ce
• Voltary：220V ,240V,380V,415V, Optional
• Control：Post Control, Platform Control, Remote Control
• Transport Package：Stretch Film & Plywood Case Outside of Wheelchair
• Specification：1430x1500x3650MM
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：20 Units Per Month

Basic Info.

Model NO. WL0.25-2.8 Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Model Wl0.25-2.8 Loading Capacity 250kg Max. Lifting Height 2.8m Min. Lifting Height 60mm Self-Weight 750kg Platform Size 1420*900mm Warranty 12 Months Certificate Ce Voltary 220V /240V/380V/415V, Optional Control Post Control, Platform Control, Remote Control Transport Package Stretch Film & Plywood Case Outside of Wheelchair Specification 1430x1500x3650MM Trademark MORN LIFT Origin Shandong, China HS Code 842890 Production Capacity 20 Units Per Month

Product Description

Product Detail

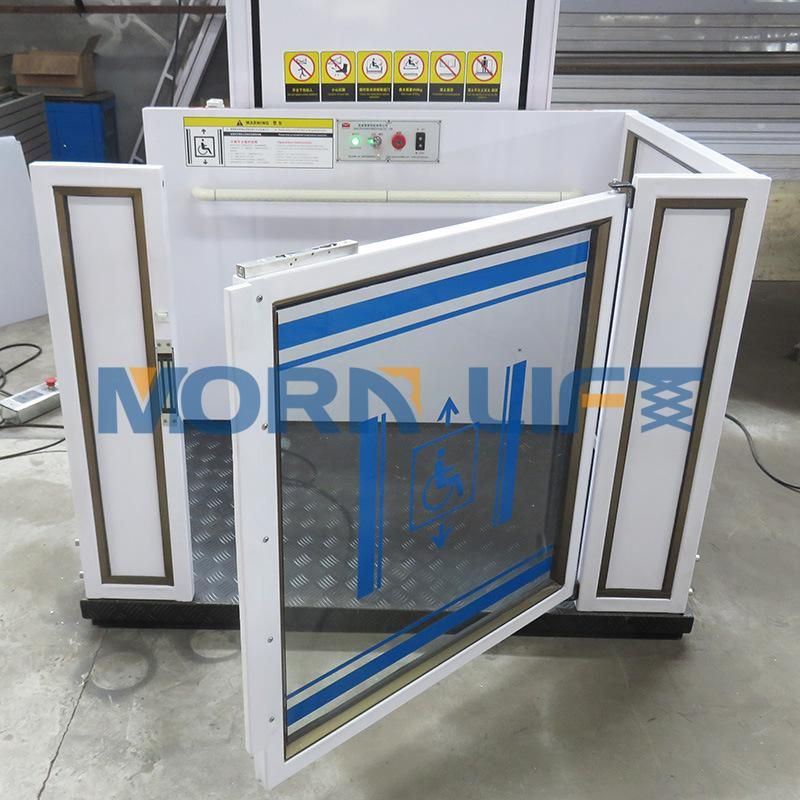

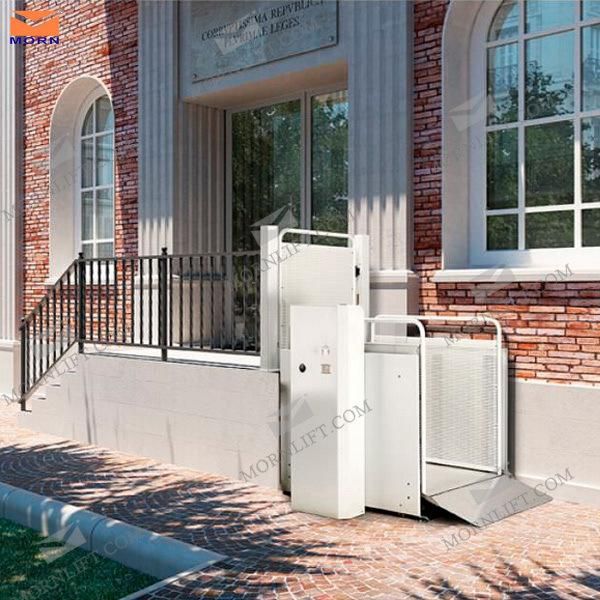

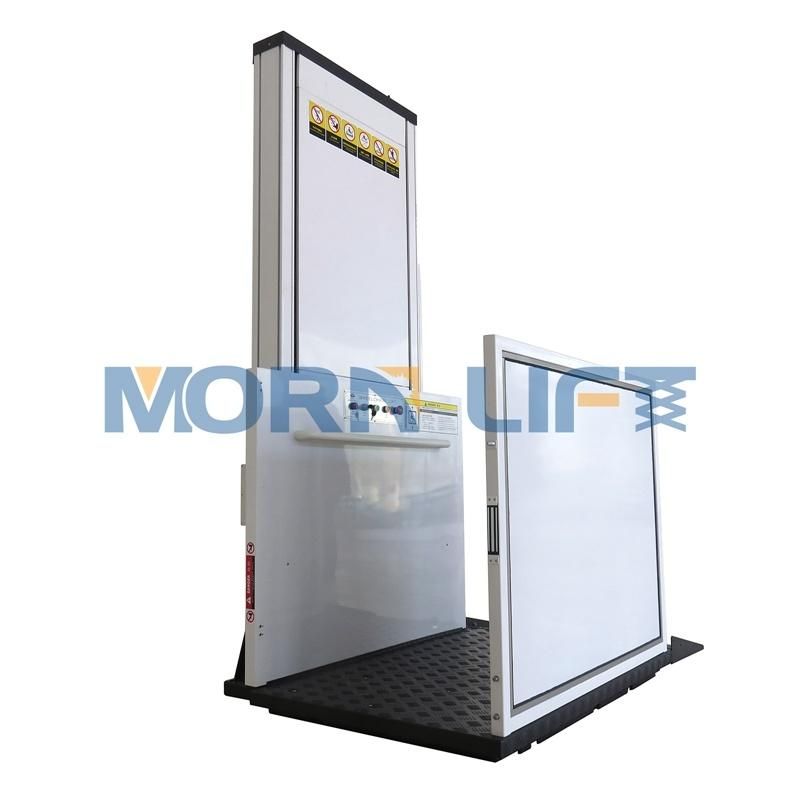

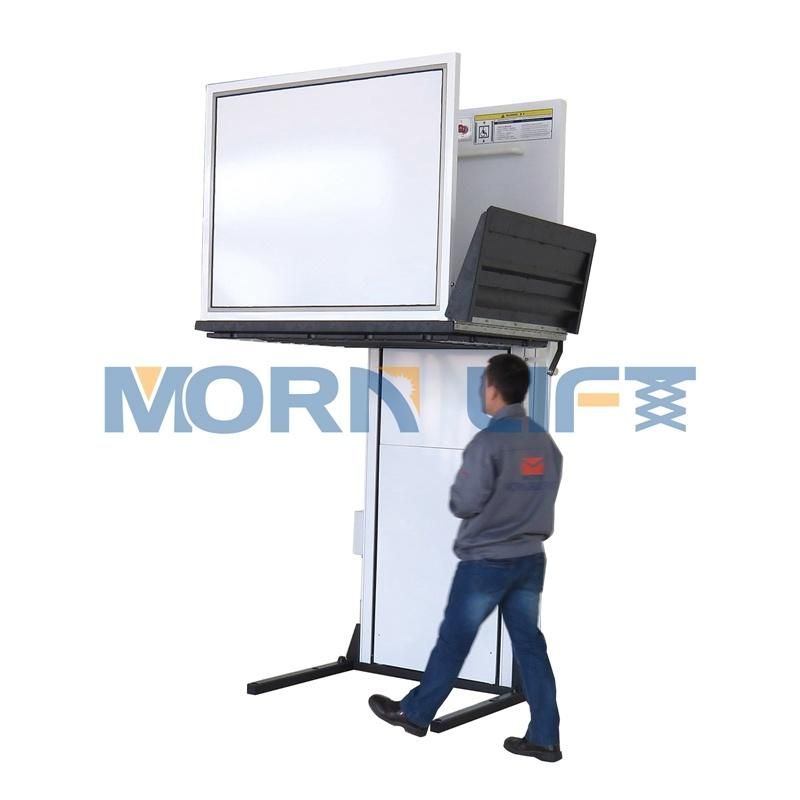

Disabled Step Lift Exterior Wheelchair Lift

The MORN Brand hydraulic wheelchair lift provides a convenient, easy and reliable access to the second floor, it can easily accommodate a wheelchair with the max capacity 550 lbs(250kg). Built with durability in mind, the MORN handicap lift is up for the challenge of tough climate conditions.
You can count on this lift for reliable performance and ease of operation.

An ideal lift for home use, the handicap lift is approved for certain commercial accessibility
projects as well

Platform size	1420x900mm
Min Platform height	80mm
Speed	60mm/s
Lift height	1000 to 10000mm
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Operation Panel	Stainless steel(Up Down and Emergency Stop)
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Non-pit installation	directly fixed to the concrete floor
Control Device	Calling box and remote controller
Optional	Landing door
	Customized-LOGO
	the customers' local Voltage

Safety devices for Disabled Step Lift Exterior Wheelchair Lift

   Safety sensor on the platform bottom
    It could make sure the machine stops immediately when touching something under the platform, especially there is children or pet. This could avoid many accidents because of sightless spot vision.



   The interlocking, electromagnetic lock and manual lock

    The machine would not start if the interlock is open.

    And the electromagnetic lock would make sure that the enter and exit door would not open when the machine up and down.

   The manual lock is a lock by hand after getting onto the lift to protect the safety in case of falling down.

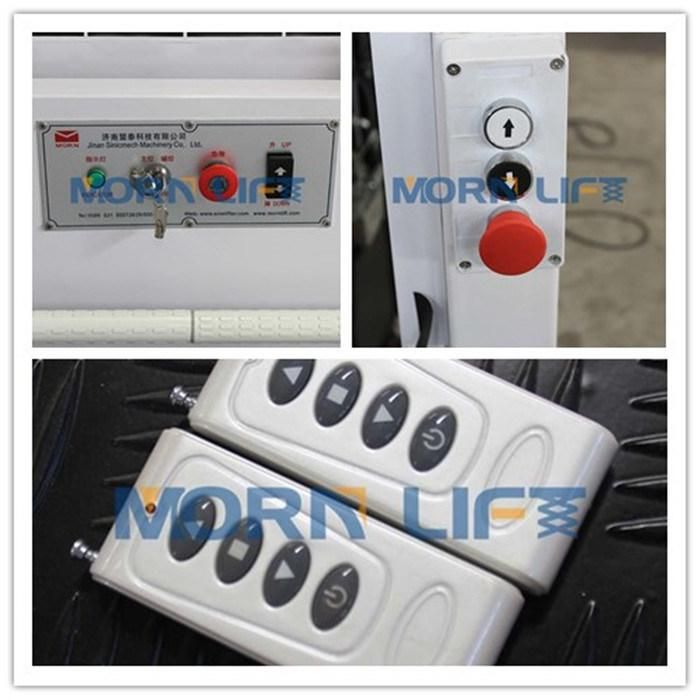

Three kinds of control: post control, platform control, remote control

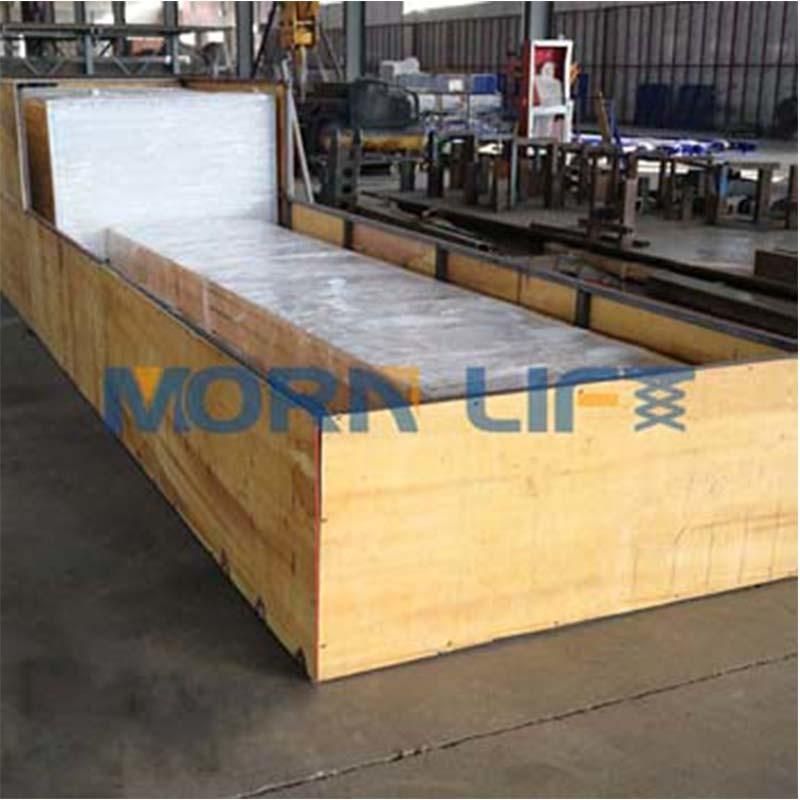

Packing

Disabled Step Lift Exterior Wheelchair Lift will be packed into steel framed veneer case for safe shipment.




Application

This lift is specifically designed to provide convenient and safe access for those in wheelchairs, or those who cannot use the stairs because of a physical disability.
