• Model NO.：QY55V532
• Max.Speed of Single Rope on The Drum of：120 M,Min
• Max. Travel Speed：80km,H
• Min. Turning Diameter：24m
• Max. Rated Total Lifting Capacity：50 Mt
• Transport Package：in Nude
• Specification：ISO, CE
• Trademark：zoomline
• Origin：Hunan China
• HS Code：8703241201
• Production Capacity：3000

Dimension
Unit
QY50KA
Overall length
mm
13770
Overall width
mm
2800
Overall height
mm
3570
Weight

Total weight in travel
kg
41000
Front axle load
kg
15000
Rear axle load
kg
26000
Power

Engine model
WD615.334(domestic III)
Engine rated power
kW/(r/min)
247/2200
Engine rated torque
N.m/(r/min)
1350/1400
Travel

Max. travel speed
km/h
80
Min. turning diameter
m
24
Min. ground clearance
mm
291
Approach angle
°
17
Departure angle
°
11
Max. grade ability
%
40
Fuel consumption for 100km
L
45
Main performance

Max. rated total lifting capacity
t
50
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.482
Max. lifting torque
kN.m
1764
Base boom
m
11.3
Fully extended boom
m
42.7
Fully extended boom+ jib
m
57.7
Longitudinal outrigger span
m
5.91
Lateral outrigger span
m
6.9
Working speed

Boom luffing time
s
80
Specifications

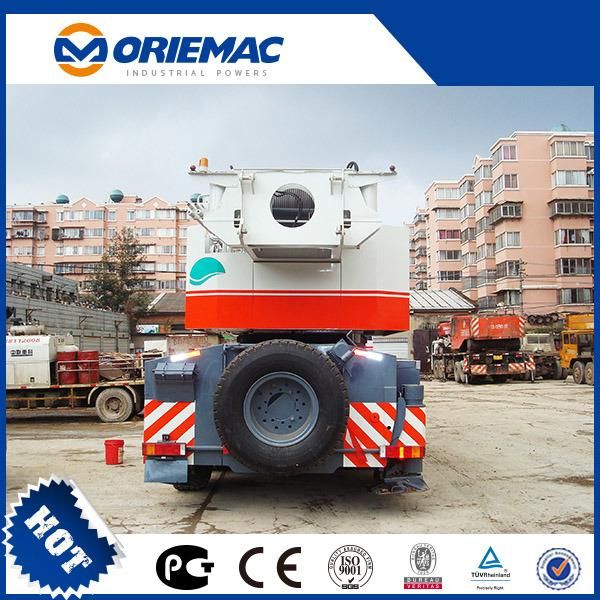

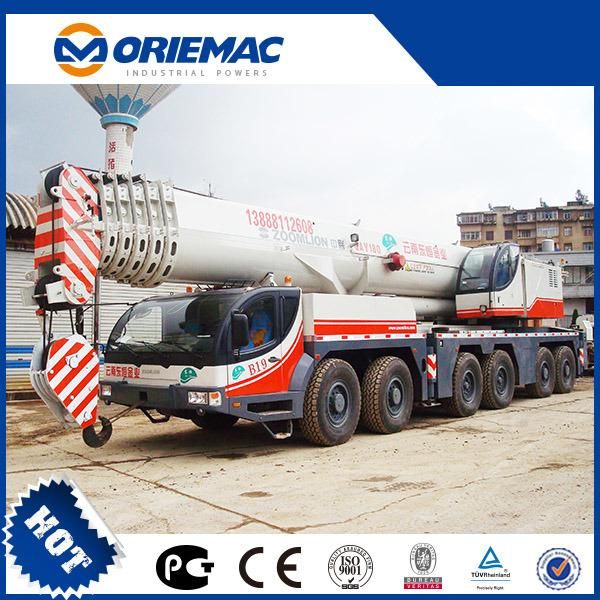

ZOOMLION brand new 55tons truck crane QY55V532,right hand drive chassis, four axles, weichai steyr engine,42m length
ZOOMLION brand new 55t truck crane,right hand drive chassis, four axles, weichai steyr engine,42m length of five-section boom

Performance:

Limited moment control system is mature, which merges microelectronic techinique illtelligent malfuction dagnosis

Main Spec:

QY55V532
Max. rated total lifting capacity: 55000kg
Overall dimensions (L×W×H): 13300x2750x3650mm
Full Hydraulic Control



Product Description
Product Description


Type	Ser. No.	Item	Unit	Value
Working performance	1	Max. rated lifting weight × working radius	kg.m	30000×3.0
	2	Max. lifting torque of basic boom	kN.m	1132
	3	Max.lifting torque of longest main boom	kN.m	617.5
	4	Max. lifting height of longest main boom	m	40.5
	5	Max. lifting height of jib	m	48.5
Dimensions	6	Outline dimensions (L×W×H)	mm	12900×2500×3465
	7	Distance between outriggers (longitudinal × transversal)	mm	5360×6100
	8	Main boom length (completely retracted - completely extended)	m	10.6~40
	9	Jib length	m	8
	10	Main boom angle of elevation	°	-2~80
	11	Swing range		360°continuously
Working speed	12	Max.speed of single rope on the drum of main winch	m/min	120
	13	Boom extension time	s	80
	14	Boom derricking up time	s	40
	15	Swing speed	r/min	0~2.2
Mass	16	Complete vehicle kerb mass	kg	31870
	17	Front axle load	kg	7000
	18	Rear axle load	kg	25000
Traveling	19	Max. traveling speed	km/h	78
	20	Max. gradeability	%	37
	21	Min. turn radius	m	11
	22	Min. ground clearance	mm	220
