China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard Ramp

Jinan Morn Technology Co., Ltd.
  • Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Telescoping Lift
  • Carrying Capacity:Special Weight Level
  • Moves:Moving
  • Driven Type:Hydraulic
  • Running Mode:Moving

Base Info

  • Model NO.:MDR-5
  • Feature:Explosion-Proof
  • Certification:CE, ISO 9001
  • Junction:400*1950mm
  • Forklift Suspensive Board:2500*2000mm
  • Floor:7500*2000mm
  • Leading Board:600*500mm
  • Overall Width:2010mm
  • Usable Width:2000mm
  • Max Working Grade:≤13°
  • Color:Blue, Green,Yellow or as Your Requirements
  • Supporting Legs:No Need
  • Platform:Antiskid
  • Capacity:5t
  • Working Height Range:1100-1800mm
  • Lifting Power:Manual Hydraulic Rod
  • Transport Package:Nude Packing or According Your Requirement
  • Specification:CE, ISO
  • Trademark:MORN
  • Origin:China
  • HS Code:8428909090
  • Production Capacity:500 Units,Year

Description

China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard RampModelMDR-10Load capacity10tWorking height range1100-1800mmLifting powerManually or DC powerTravel powerVehicular / trailerPlatform length9000mmDimension1120*2000*1400mmMin. Lifting Height1000mm
Detail Show:China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard RampAdjusting bar

It's one hydraulic pump handle, to adjust height of loading ramp. One worker can easily lift up the ramp up to the bottom surface of container or truck. DC power for option.









Solid iron blocks

To stabilize the wheels in case the ramp begins to move while working. Guaranteen forklift and worker move safely on ramp.









Trailing device

It joints truck or trailer to move ramp to different work places, convenient and flexible.

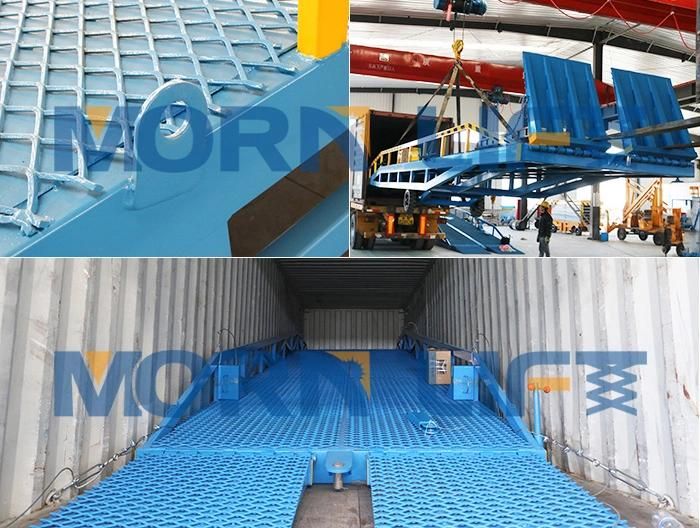

Delivery:
Hook is free to loading ramp to container or truck. Ramp is deliveried by one 40ft container.
Our ramp can be loaded 5 units in one 40ft container. Save double delivery cost.

China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard Ramp

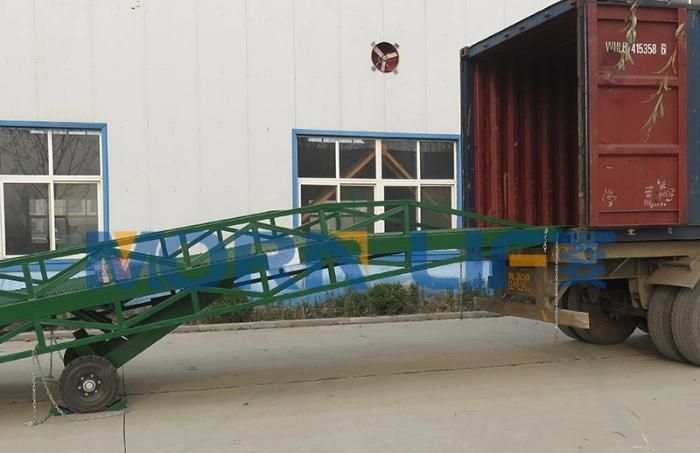

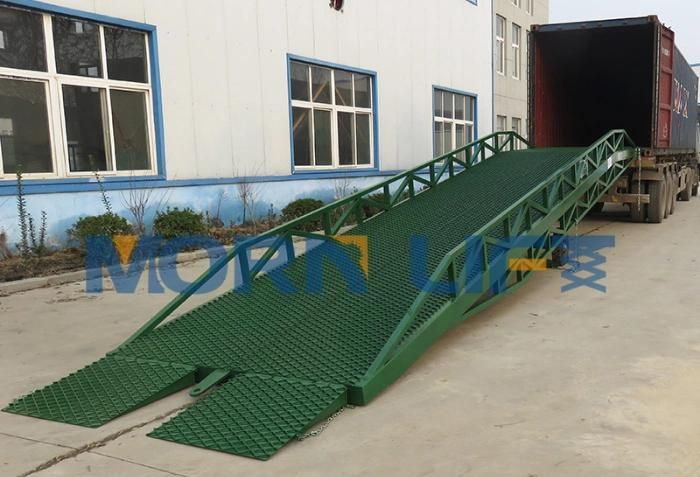

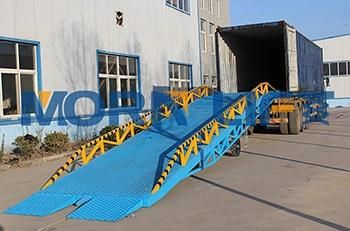

Application

China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard Ramp
China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard Ramp

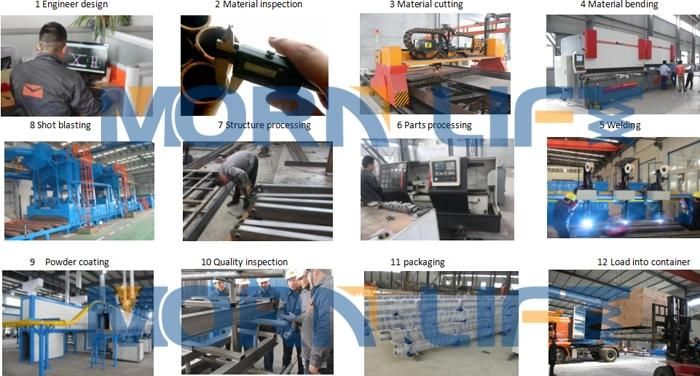

Manufacturing Technology & Process
1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery with sufficient stocks.
China 5t Hydraulic Electric/Manual Truck/Mobile Container Forklift Load/Loading Dock Leveler Platform Yard Ramp

MORN service:

1) Installation drawing and manual will be provided after the order.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) User-friendly English manual for machine using and maintaining.
6) Several sets wearing parts will be free for you.
