• Model NO.：CLL
• Max Height：30mm-125mm
• Certification：CE, ISO 9001:2008
• Condition：New
• Body Height(mm)：164-695
• Ltinerary(mm)：50-300
• Outer Diamond(mm)：125-560
• Effective Area：71.3-1465 Cm2
• Capacity(Load)：55-1080 Ton
• Oil Capacity：356-36625 Cm3
• Working Pressure：70 MPa
• Transport Package：Wooden Packing
• Specification：25x30x45
• Trademark：Baier
• Origin：China
• HS Code：8412210000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. CLL Max Height 30mm-125mm Certification CE, ISO 9001:2008 Condition New Body Height(mm) 164-695 Ltinerary(mm) 50-300 Outer Diamond(mm) 125-560 Effective Area 71.3-1465 Cm2 Capacity(Load) 55-1080 Ton Oil Capacity 356-36625 Cm3 Working Pressure 70 MPa Transport Package Wooden Packing Specification 25x30x45 Trademark Baier Origin China HS Code 8412210000 Production Capacity 5000PCS/Year

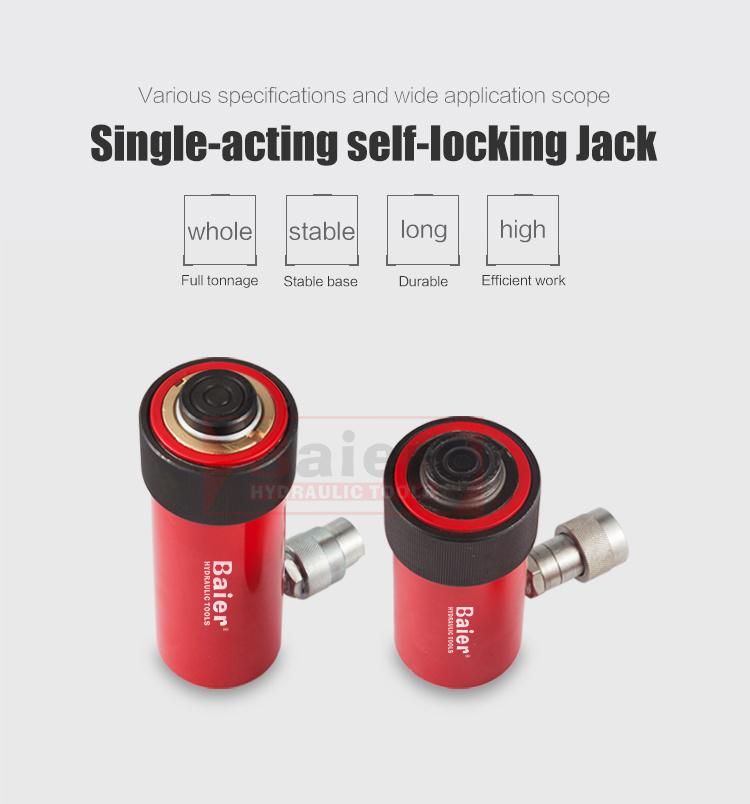

Product Description

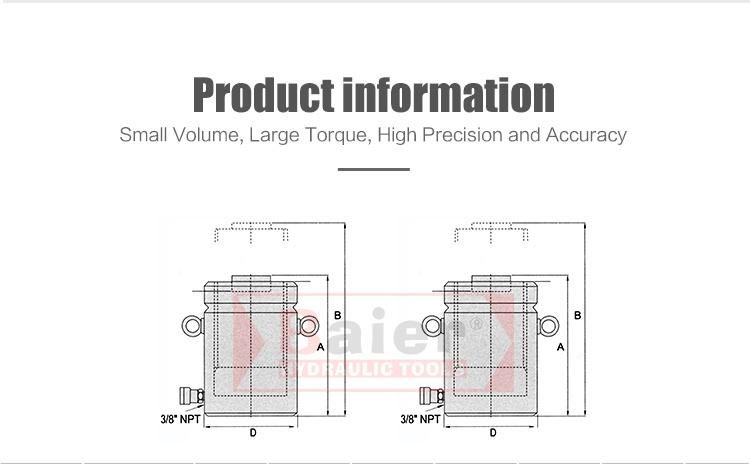

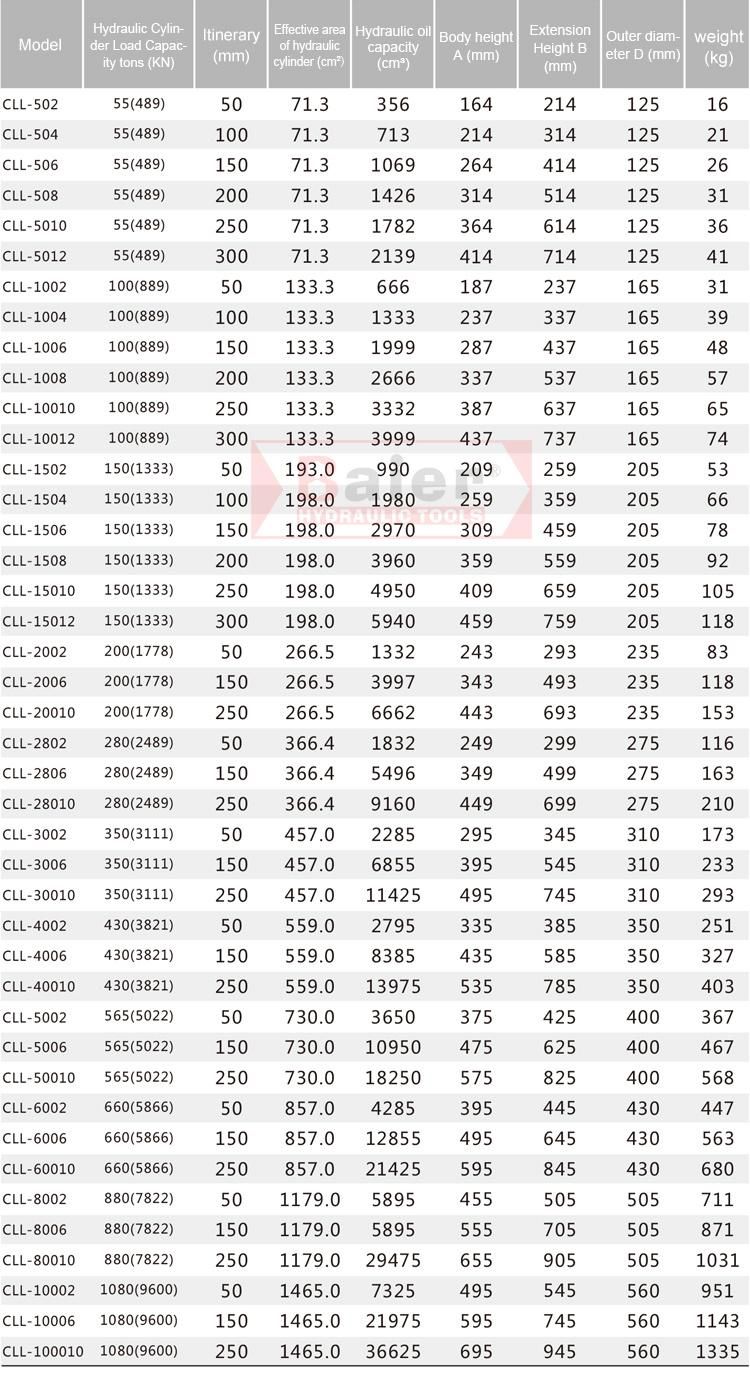

Product Specification

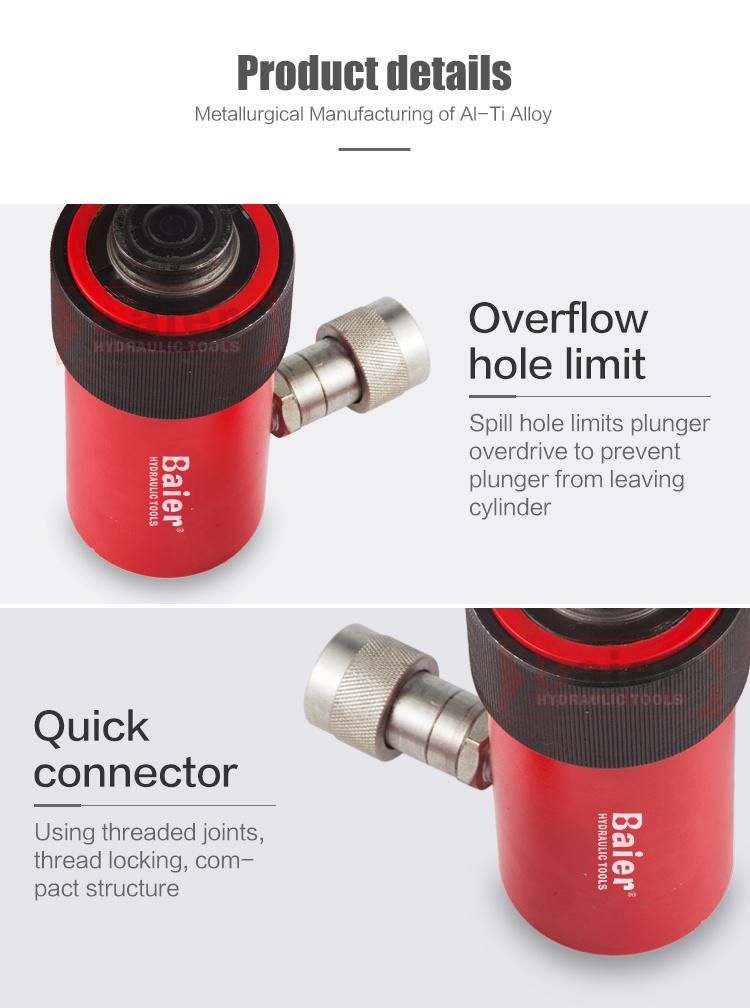

1.Spill hole limits plungeroverdrive to preventplunger from leaving cylinder
2.Using threaded joints,thread locking, com-pact structure

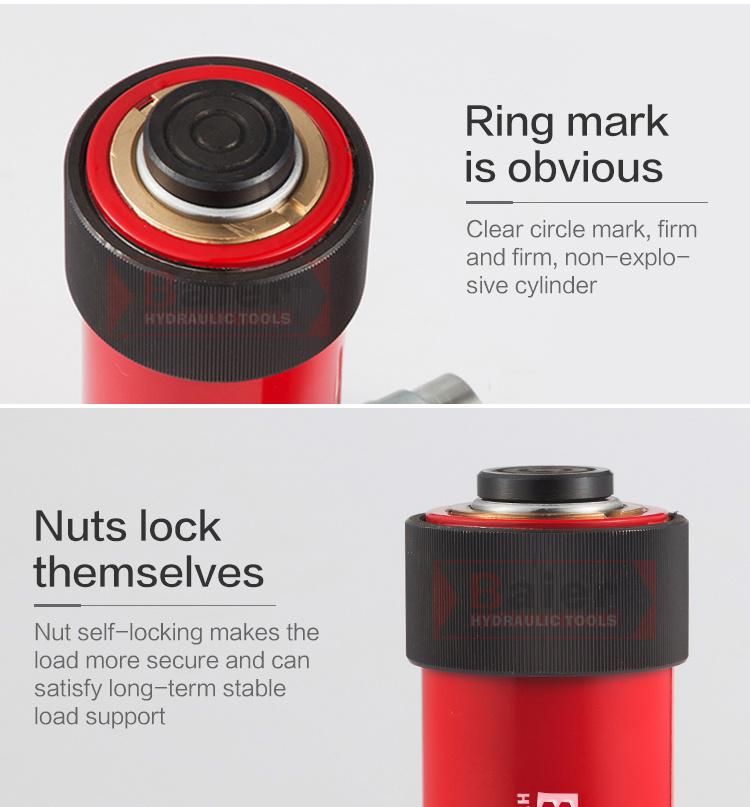

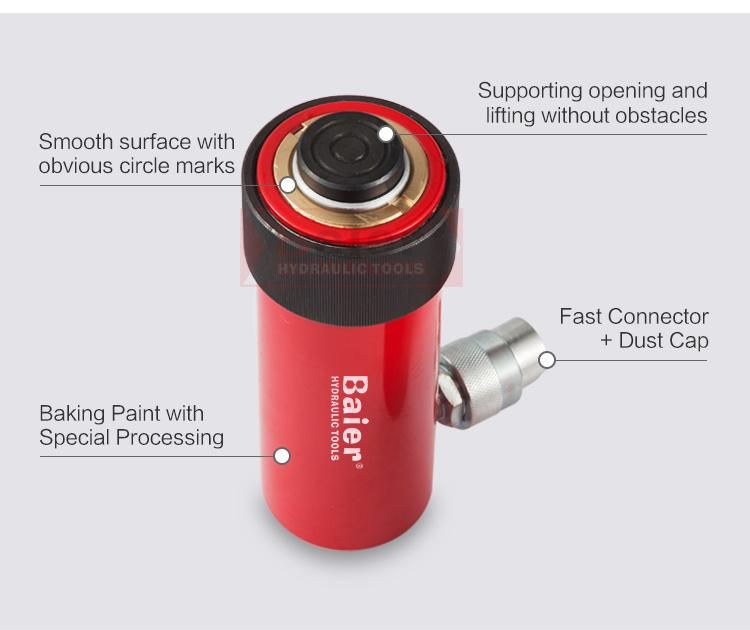

3.Clear circle mark, firmand firm,non-explo-sive cylinder
4.Nut self-locking makes theload more secure and cansatisfy long-term stableload support
