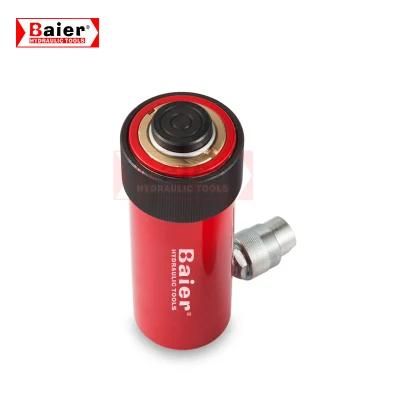

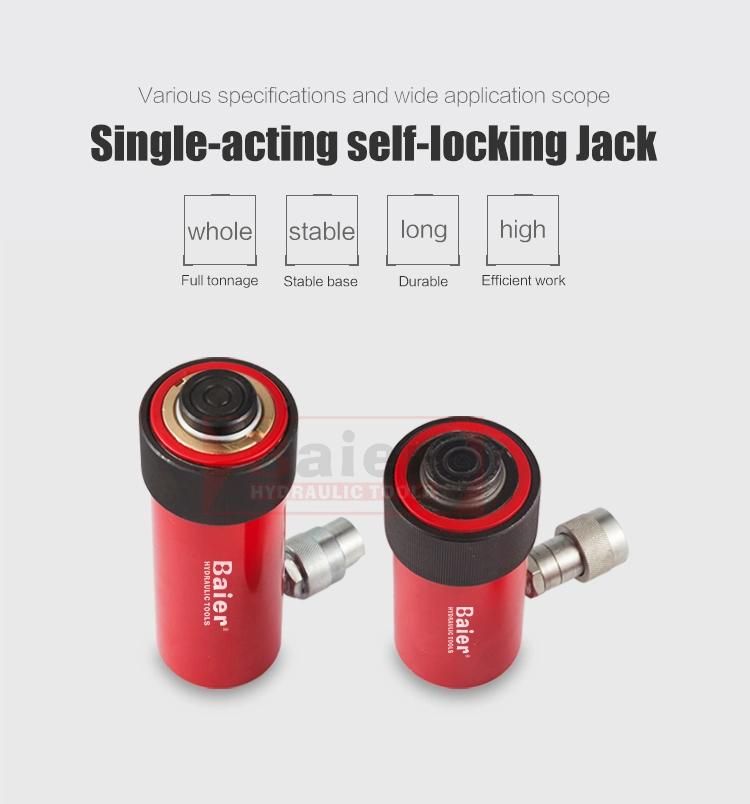

1080 Ton Single Acting Hollow Hydraulic Cylinder Jack with Self -Locking Cll
Baier Hydraulic Power (Wuhan) Co., Ltd.- After-sales Service：Quality Guarantee
- Warranty：One Year
- Type：Hydraulic Jack
- Structure：Hydraulic Jack
- Capacity (Load)：100kn-400kn
- Power Source：Hydraulic
Base Info
- Model NO.：CLL
- Max Height：30mm-125mm
- Certification：CE, ISO 9001:2008
- Condition：New
- Body Height(mm)：164-695
- Ltinerary(mm)：50-300
- Outer Diamond(mm)：125-560
- Effective Area：71.3-1465 Cm2
- Capacity(Load)：55-1080 Ton
- Oil Capacity：356-36625 Cm3
- Working Pressure：70 MPa
- Transport Package：Wooden Packing
- Specification：25x30x45
- Trademark：Baier
- Origin：China
- HS Code：8412210000
- Production Capacity：5000PCS,Year
Description
Basic Info.

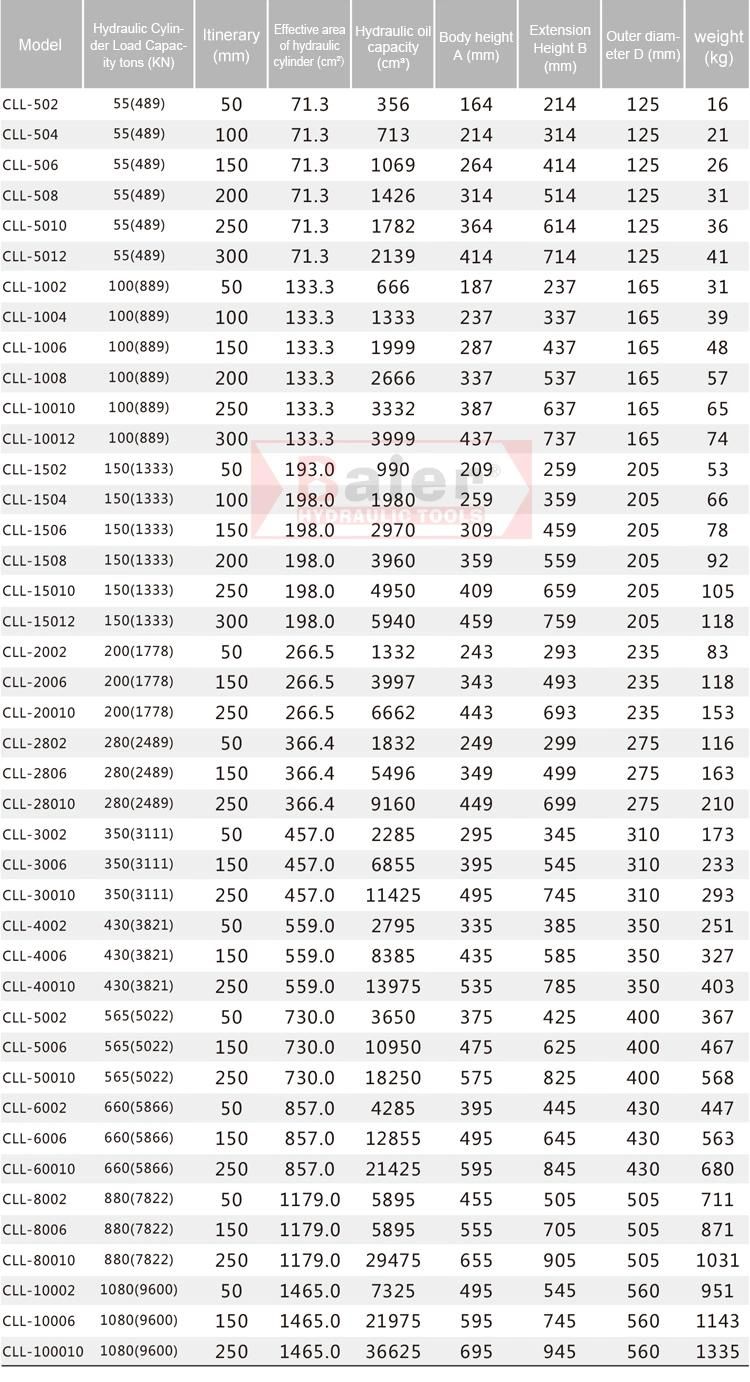

Model NO. CLL Max Height 30mm-125mm Certification CE, ISO 9001:2008 Condition New Body Height(mm) 164-695 Ltinerary(mm) 50-300 Outer Diamond(mm) 125-560 Effective Area 71.3-1465 Cm2 Capacity(Load) 55-1080 Ton Oil Capacity 356-36625 Cm3 Working Pressure 70 MPa Transport Package Wooden Packing Specification 25x30x45 Trademark Baier Origin China HS Code 8412210000 Production Capacity 5000PCS/YearProduct Description

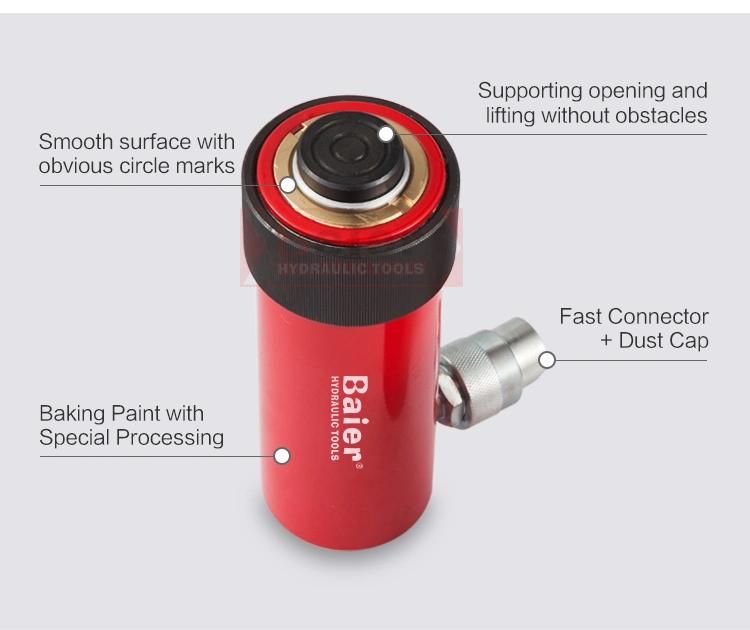

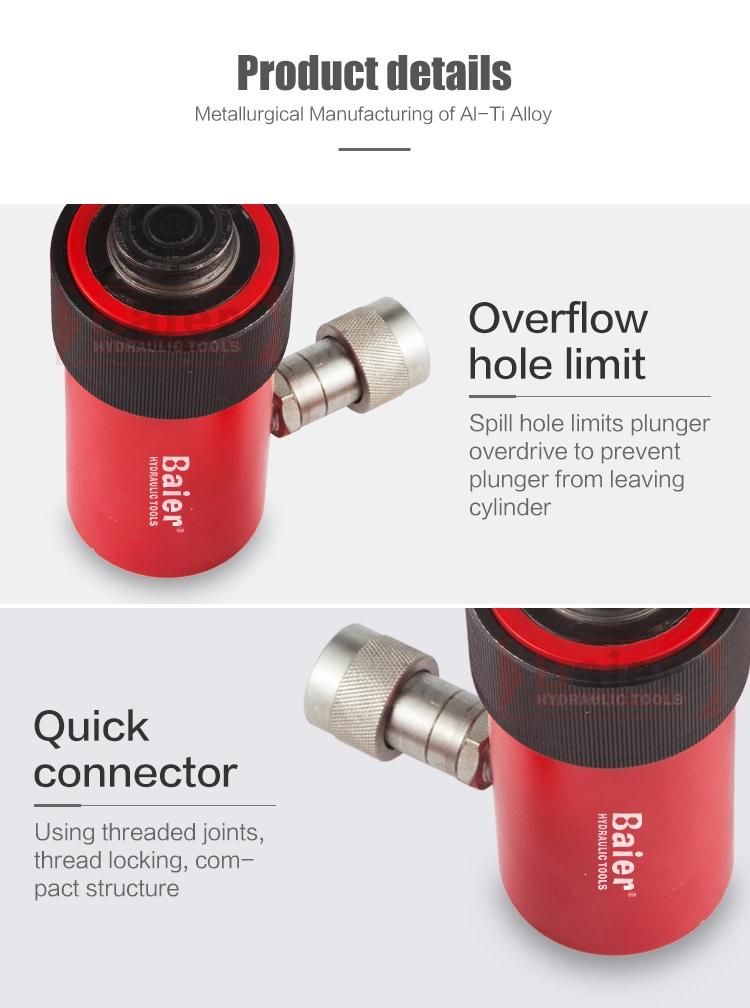

Product Specification1.Spill hole limits plungeroverdrive to preventplunger from leaving cylinder
2.Using threaded joints,thread locking, com-pact structure

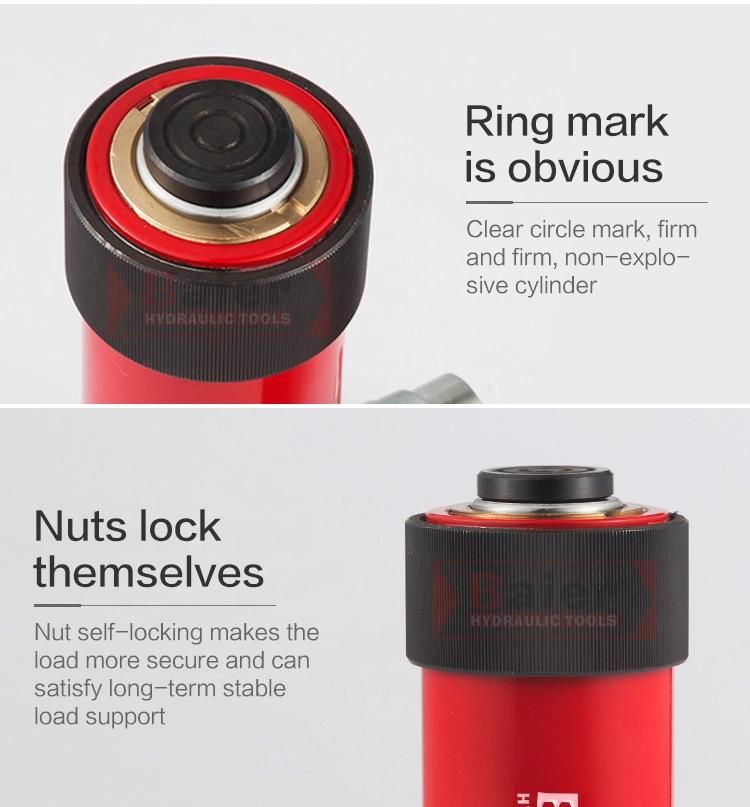

3.Clear circle mark, firmand firm,non-explo-sive cylinder
4.Nut self-locking makes theload more secure and cansatisfy long-term stableload support
