• Model NO.：HS-VT
• Certification：CE, SGS
• Condition：New
• Color：Orange
• Hoist Brand Name：Hugo
• Cover：Alloy
• Hoist Warranty：2 Years
• Request Lifting Capacity：Available
• Request Lifting Height：Available
• Zinc Hand Chain：Available
• Hoist Hook：Forged
• Delivery Time：10 Days
• Hoist Color：Orange or Optional
• Hoist Chain：G80
• Transport Package：Carton, Plywood, Pallet
• Specification：CE, ISO, TUV
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：10000,Month

 Service Payment term:   T/T Warranty Period:  1 year Delivery time:  5 days after order Packing:  export carton and pallet

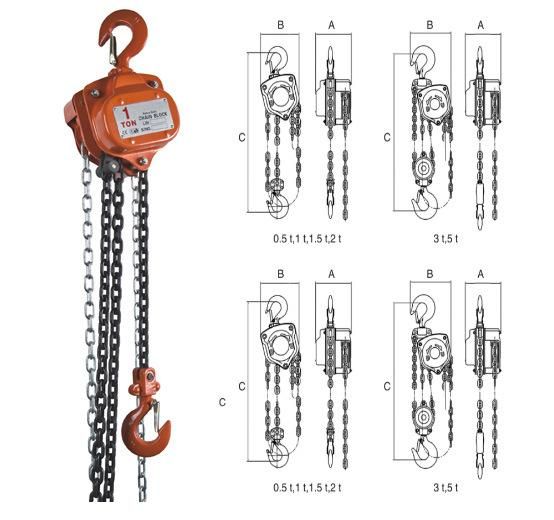

Parameters of VC-B Hand Chain HoistModelVC-B 0.5VC-B 1VC-B 1.5VC-B 2VC-B  5 3VC-B 5VC-B 10VC-B 20VC-B 30VC-B 50Capacity(t)0.511.523510203050Standard lift(m)2.52.52.53333333Running test
load(t)
0.751.52.2534.57.515304575No.of falls of load
chain111122481224Load chain diameter (mm)56.37.187.199999Dimension(mm) A129149.5157.5161.5151.5163207215350406B136145164.5187164.5211398650680962C27031739941446563679889013802578Net weight(kg)8.41216.2202441791932201092Packing(L*W*H)
(cm)22x14
x1525x19
x1633x24
x1633x24
x1934.5x24
x1640x30
x1948x42
x18.578x68
x2085x67
x30110x100
x130
 Our service :

1. Many OEM producers choose our products . we may accept small first trial order.
2. We have more than 50 professional technical teams, provide best global after-sales service.
3. All  products have acquired the CE , ISO,PICC.SGS,TUV  certificate.
4.we are one of the market leaders  in crane hoist designing and manufacturing in China.
5.."HUGO" is our brand ,it is well-known brand and is selling well abroad .

FAQ:

1.Is your product customized?Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
 2. How many operation methods for my selection?Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
 3. The space of my workshop is limited, can the crane ok for mine?Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
 4. What's the information should i provide when inquiry?a. How much is the maximus lifting weight of the hoist?b. Have you installed the rails? Do you need us supply the rails? How long is it?c. Where are the working environment?
