• Model NO.：CD1
• Lift Speed：>8m,min
• Maximum Lifting Height：>20m
• Chain Falls：Wire Rope
• Certification：CE
• Condition：New
• Color：Blue
• Name：CD1,Md1 Wire Rope Electric Hoist
• Factory：More Than 20 Years Manufactory Experience
• Brand Name：Hugo
• Loading Port：Shanghai Port,Shanghai Port
• Warranty：1 Years
• Painting Color：as Your Order
• Quality Control：According to EU Standard
• Standard Lifting：8 M,Min
• Payment Term：T,T L,C
• After-Sales Service：Overseas Srevice Provided
• Transport Package：Packing by Carton, Woodon Case
• Specification：CE ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425110000
• Production Capacity：100000PCS ,Month
• Package size per unit product：40.00cm * 50.00cm * 60.00cm
• Gross weight per unit product：80.000kg

  Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.4.Protection grade: IP54, work grade: M35.Over load limit is available. Hook is widen and thicken 6.Power-Off protection, Emergency stop system.

Model

CD1-0.25

CD1-0.5

CD1-1

CD1-2

CD1-3

CD1-5

CD1-10

Capacity(t)

0.25

0.5

1

2

3

5

10

Standard lift(m)

3-9

6-12

6-30

6-30

6-30

6-30

9-30

Lifting speed(m/min)



88/0.8

88/0.8

88/0.8

88/0.8

88/0.8

77/0.7

Running speed(m/min)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

Wire rope type



6x37-4.8-180

6x37-7.4-180

6x37-11-155

6x37-13-170

6x37-15-200

6x37-17.5-200

I Beam track type

16-22b

16-28b

16-28b

20a-32c

20a-32c

25a-63c

28a-63c

Motor

Power(KW)

04

0.8

1.5

3.0

4.5

7.5

13

R.P.M(r/min)

1400

1380

1380

1380

1380

1380

1380

Voltage(V)

380

380

380

380

380

380

380

Frequency(Hz)

50

50

50

50

50

50

50

Phase

3

3

3

3

3

3

3

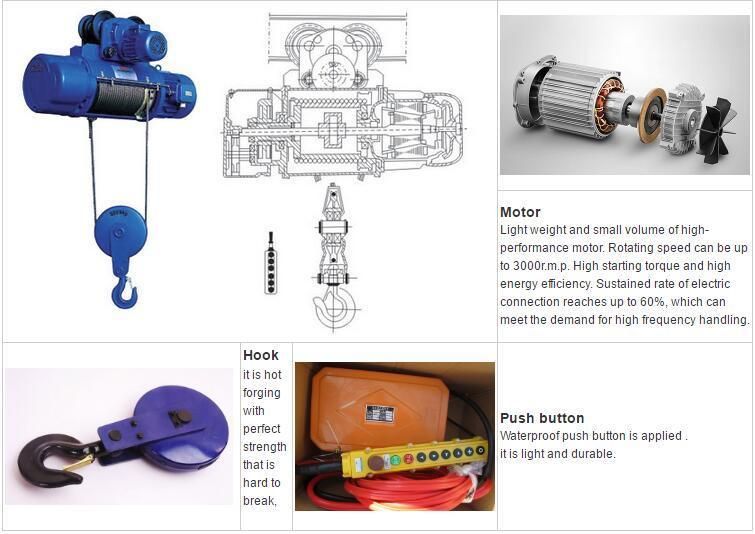

CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

CD1 Model wire rope electric hoist Material object

CD1 Model wire rope electric hoist lifting block production process

Company Information
Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.
1. Annual production in 5 million units production area 3600 square meters;
2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.
3. 120 production lines;
4. More than 500 employees;
5. Annual export value over 50 million RMB.
