• Model NO.：SPS-10
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Lifting Height：10m
• Max Working Height：12m
• Platform Size：2270*1120mm
• Load Capacity：230kg
• Extend Platform：900mm
• Max. Drive Speed(Stowed)：3.2km,H
• Color：Orange, Blue or According to Request
• Grade-Ability：25%
• Warranty：12 Months Apart From Man-Made Faults
• Maintenance-Free Battery：4*6,230V,Ah
• Transport Package：Nude Packing
• Specification：CE, SGS
• Trademark：MORN
• Origin：Shandong China
• HS Code：8428909090
• Production Capacity：200 Units Per Month

Basic Info.

Model NO. SPS-10 Feature Explosion-Proof Certification CE, ISO 9001 Max Lifting Height 10m Max Working Height 12m Platform Size 2270*1120mm Load Capacity 230kg Extend Platform 900mm Max. Drive Speed(Stowed) 3.2km/H Color Orange, Blue or According to Request Grade-Ability 25% Warranty 12 Months Apart From Man-Made Faults Maintenance-Free Battery 4*6/230V/Ah Transport Package Nude Packing Specification CE, SGS Trademark MORN Origin Shandong China HS Code 8428909090 Production Capacity 200 Units Per Month

Product Description

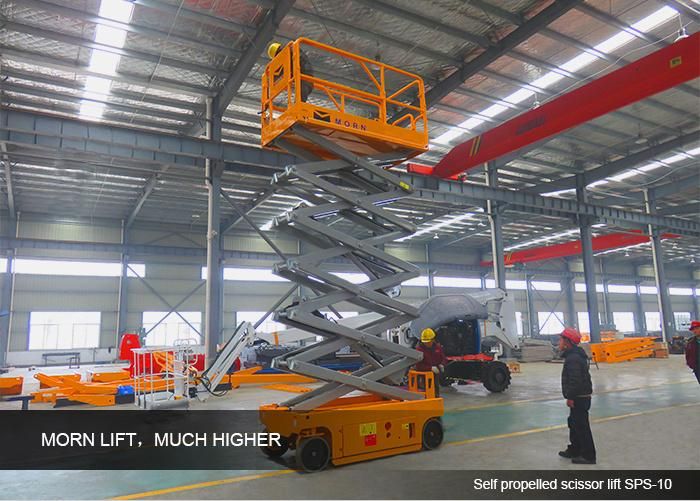

Self propelled Electric Elevated Work Platform Lift with CE Certification

Morn self propelled scissor lifts are used for lifting workers to the high level which are made electric powered with Trojan battery provides the power to move and steer around.
Fully self walk and up&down system makes it more convenient for one person operate on the platform.

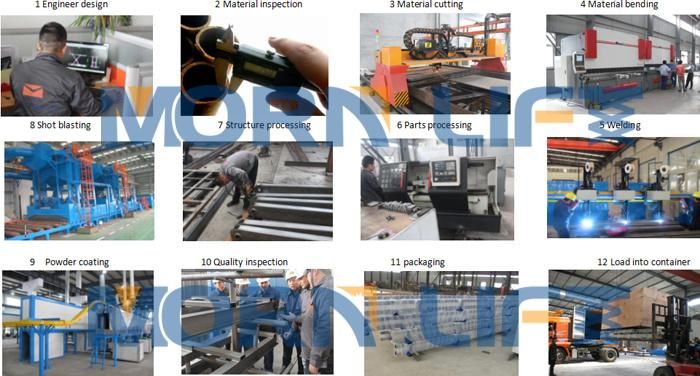

Manufacturing technology & process

1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery.




MORN service:
1) User-friendly English manual for machine using and maintenance.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) Several sets wearing parts will be free for you.

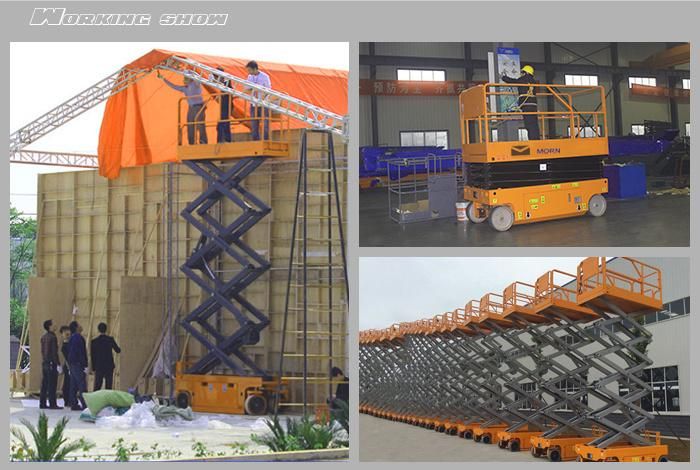

With the advantage of energy saving,low noise and environmental working and easy & flexible operation, electrical scissors are widely used in the indoor environment like workshops , warehouses, hotel,etc. Quiet and Convenient Devices Compact Structure Larger Working Space Swing-out Tray.

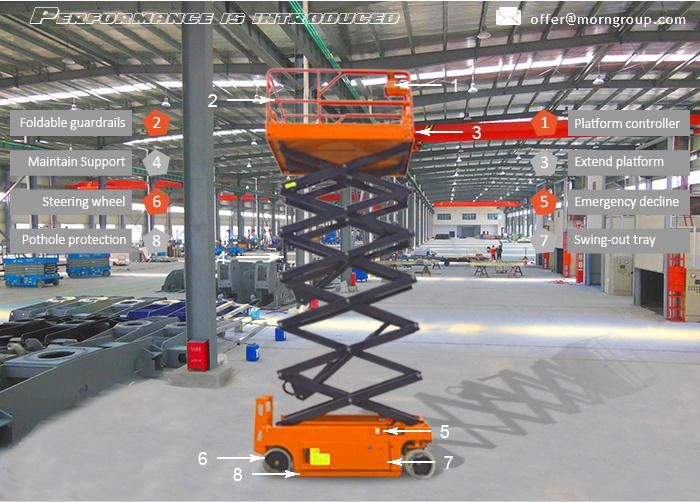

1, Extendable Platform
Extended mesa guardrail with automatic locking doors which could pass through in small space, outspread platform to enlarge working range, more convenient for workers
2, Working guardrails can be folded
Which enables it go through small openings and operate in small space and can reduce the height of the whole machine, which facilitates the transportation and pass of places such as openings.
3, Electric Control Handle
America CUITIS Electric Control Handle on the Platform. Each control button has the instruction mark, the user can understand how it works and easy to operate to up down or turn.
4, Scissors
High Strength Scissors, produced by Rectangle Tubes, which make the lift more
Stable.

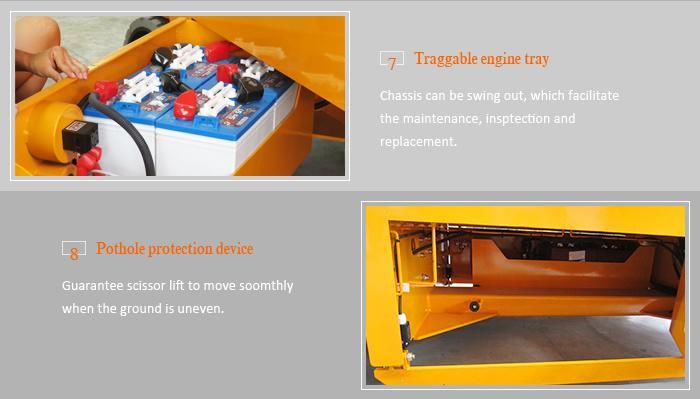

5, Pit protection
In order to ensure the smooth operation of the scissor lift with pit protection Settings,
It also keeps workers safe when the roads are rough.

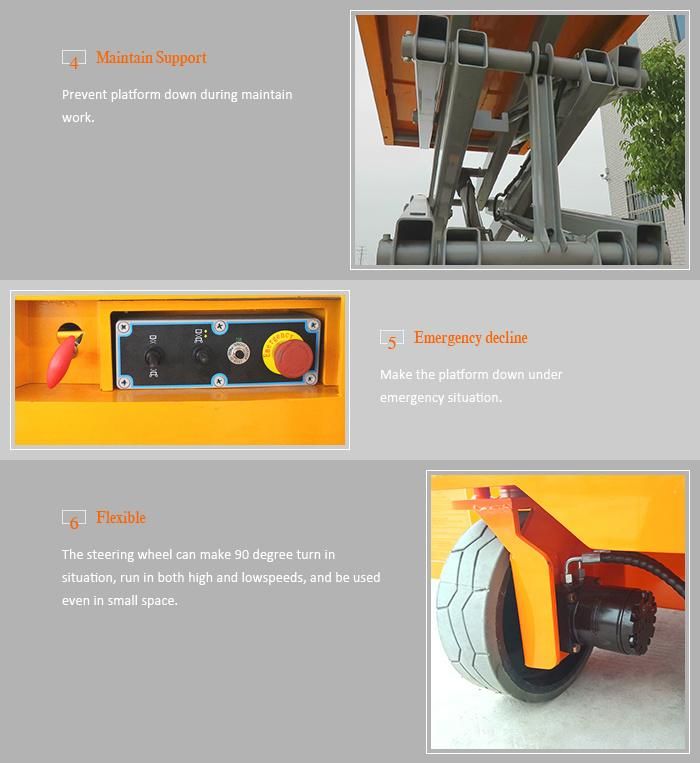

6, Control panel on the chassis
1.Emergency stop
2.key switch which could choose ground control or platform control
7, Battery group
America TORJAN Battery Group and Shanghai SHINENG Intelligent Charger
8, Power Switch
Power Switch.
And Battery Charger Hole

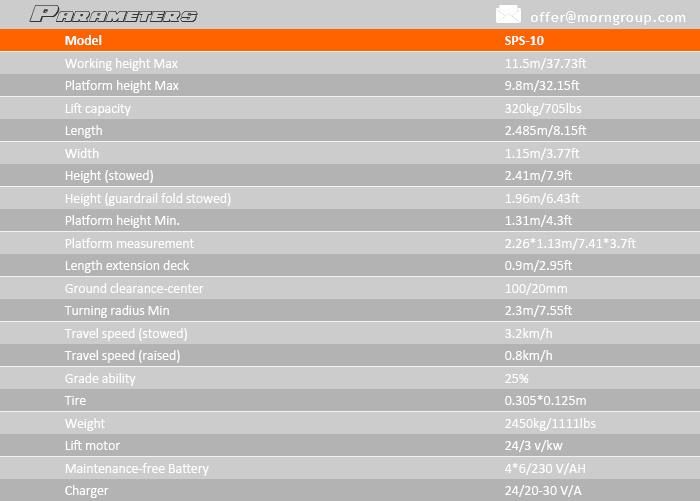

Model	SPS-6	SPS-8	SPS-10	SPS-12	SPS-14
Lifting Height	5.8 m	8 m	10m	11.8 m	13.8 m
Working Height	7.8 m	10m	12m	13.8m	15.8m
Lifting capacity	230/113 kg	450/113kg	320/113kg	320/113kg	227/1130kg
Height(Stowed)	1.84m	1.836m	1.964m	2.094m	2.058m
Platform Height minimum	1.08m	1.186m	1.314m	1.442m	1.49m
Overall Length	1.86m	2.475m	2.475m	2.475m	2.84m
Width	0.76m	1.15m	1.15m	1.15m	1.39m
Platform size	1.67*0.74m	2.26*1.13m	2.26*1.13m	2.26*1.13m	2.64*1.13m
Length extension deck	0.9m	0.9m	0.9m	0.9m	0.9m
Turning radius Minimum	0/1.7m	0/2.2m	0/2.2m	0/2.2m	0/3m
Travel speed(stowed)	3.2km/h	3.2km/h	3.2km/h	3.2km/h	3.2km/h
Travel speed(raised)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Maximum allowable working angle	1.5°/3°	2°/3°	2°/3°	1.5°/3°	1.5°/3°
Grade ability	14°(25%)	14°(25%)	14°(25%)	14°(25%)	14°(25%)
Tire	Φ305*100mm	Φ381*127mm	Φ381*127mm	Φ381*127mm	Φ381*127mm
Wight	1435kg	2190kg	2430kg	2960kg	3320kg
Lift Motor	24/3V/KW	24/3V/KW	24/4.5V/KW	24/4.5V/KW	24/4.5V/KW
Battery	4*6/225V/Ah	4*6/216V/Ah	4*12/150V/Ah	4*12/150V/Ah	4*6/251V/Ah
Charge	24/30V/A	24/30V/A	24/30V/A	24/30V/A	24/30V/A
