• Model NO.：TS0.3-16
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Lifting Height：16m
• Platform Size：2812*1600mm
• Guardrail(Optional)：1100mm
• Lift Speed：4-6m,Min
• Supporting Legs：Four Manual Supporting Legs
• Platform：Antiskid
• Power Source：AC, DC or Diesel Optional
• Color：Yellow, Blue, or as Your Requirement
• Self Weight：3065kg
• Transport Package：Plywood Case
• Specification：3067*1810*2080mm
• Trademark：MORN
• Origin：Shandong China
• HS Code：8428909090
• Production Capacity：200 Units Per Month

Basic Info.

Model NO. TS0.3-16 Feature Explosion-Proof Certification CE, ISO 9001 Lifting Height 16m Platform Size 2812*1600mm Guardrail(Optional) 1100mm Lift Speed 4-6m/Min Supporting Legs Four Manual Supporting Legs Platform Antiskid Power Source AC, DC or Diesel Optional Color Yellow, Blue, or as Your Requirement Self Weight 3065kg Transport Package Plywood Case Specification 3067*1810*2080mm Trademark MORN Origin Shandong China HS Code 8428909090 Production Capacity 200 Units Per Month

Product Description

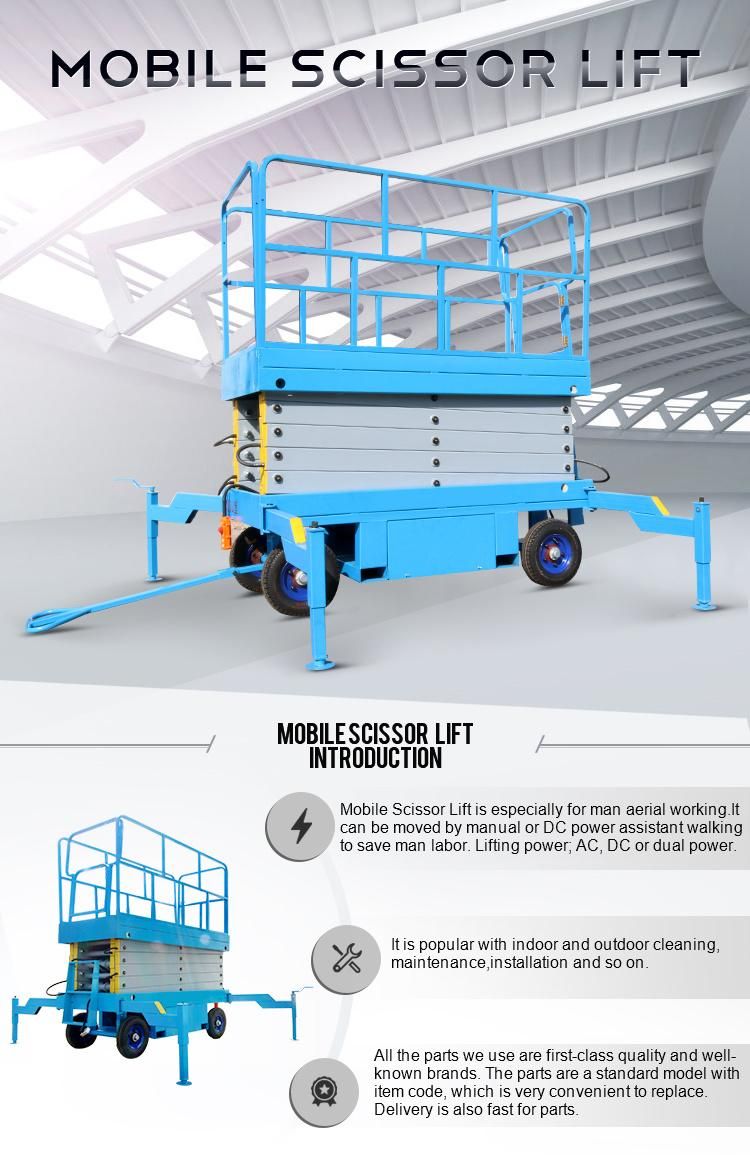

300kg Hydraulic Scissor Towable Lift Platform for Aerial Man Work

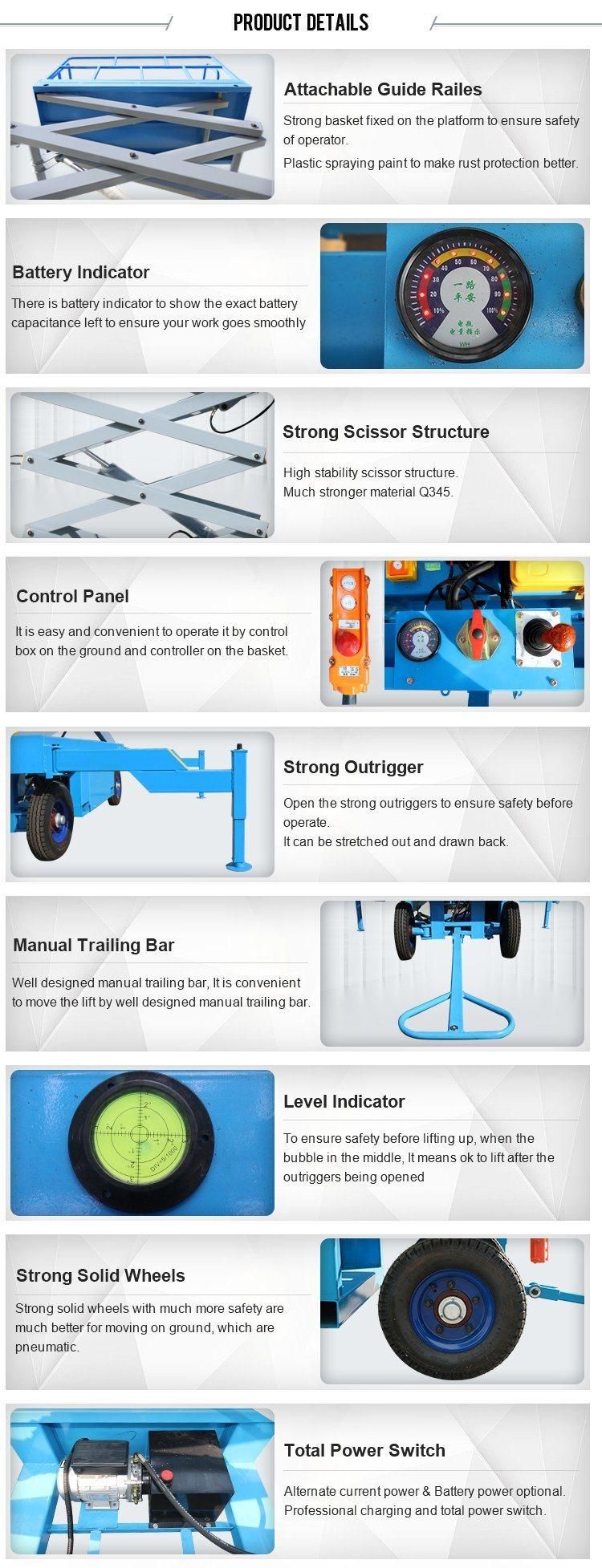

Features:
1. Mobile scissor lift table is mainly used to lift workers to higher places for maintenance, cleaning or installation.
2. It is characterized by manual move and great loading capacity.
3. Lift power: AC(110V, 220V, 380V, 415V), DC or diesel available.
4. Both ground and platform can control the lift, easily operated.
5. Steady ascending and descending
6. Mobile convenient, easy to work.
7. Custom-made according to the requirement

Walking assistant (optional)

Package & Delivery
1. Film package to prevent humidity and rust. (if large quanity)
2. Iron frame to keep lift stable in container.
3. The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. If large quantity, stretch film package.

Application of Mobile Scissor Lift
It is widely used for the equipment installations and maintenance at the following places
like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.

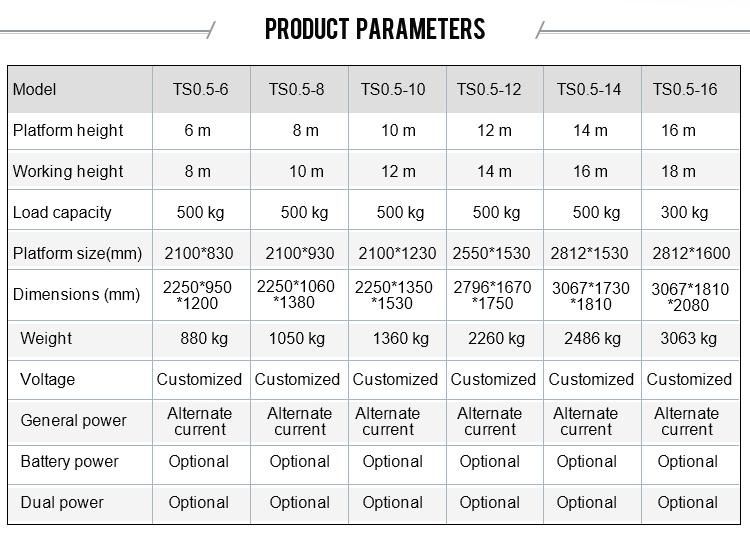

Model List for reference:

Model	Platform Size (m)	Capacity (kg)	Platform height (m)	Overall Size (mm)	Weight(kg)
TS0.5-6	2100*830	500	6	2250*950*1200	880
TS0.5-7	2100*830	500	7	2250*950*1280	970
TS0.5-8	2100*930	500	8	2250*1060*1380	1050
TS0.5-9	2100*930	500	9	2250*1060*1500	1165
TS0.5-10	2100*1230	500	10	2250*1350*1530	1360
TS0.5-11	2100*1230	500	11	2250*1350*1650	1400
TS0.5-12	2550*1530	500	12	2796*1670*1750	2260
TS0.5-14	2812*1530	500	14	3067*1730*1810	2486
TS0.3-16	2812*1600	300	16	3067*1810*2080	3063
TS0.3-18	3070*1600	300	18	3321*1810*2080	3900

Manufacturing technology & process
1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery.

MORN service:
1) User-friendly English manual for machine using and maintaining.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) Several sets wearing parts will be free for you.
