• Model NO.：Single Arm Type Davit
• Rope Capacity of The Reel：30m
• Max.Hoisting Load：30kn,15kn
• Maximum Rotation Angle：≤330°
• Transport Package：Deyuan Marine Standard Export Packing
• Specification：ccs
• Trademark：DEYUAN MARINE
• Origin：China
• Production Capacity：100sets Per Month

Basic Info.

Model NO. Single Arm Type Davit Rope Capacity of The Reel 30m Max.Hoisting Load 30kn/15kn Maximum Rotation Angle ≤330° Transport Package Deyuan Marine Standard Export Packing Specification ccs Trademark DEYUAN MARINE Origin China Production Capacity 100sets Per Month

Product Description

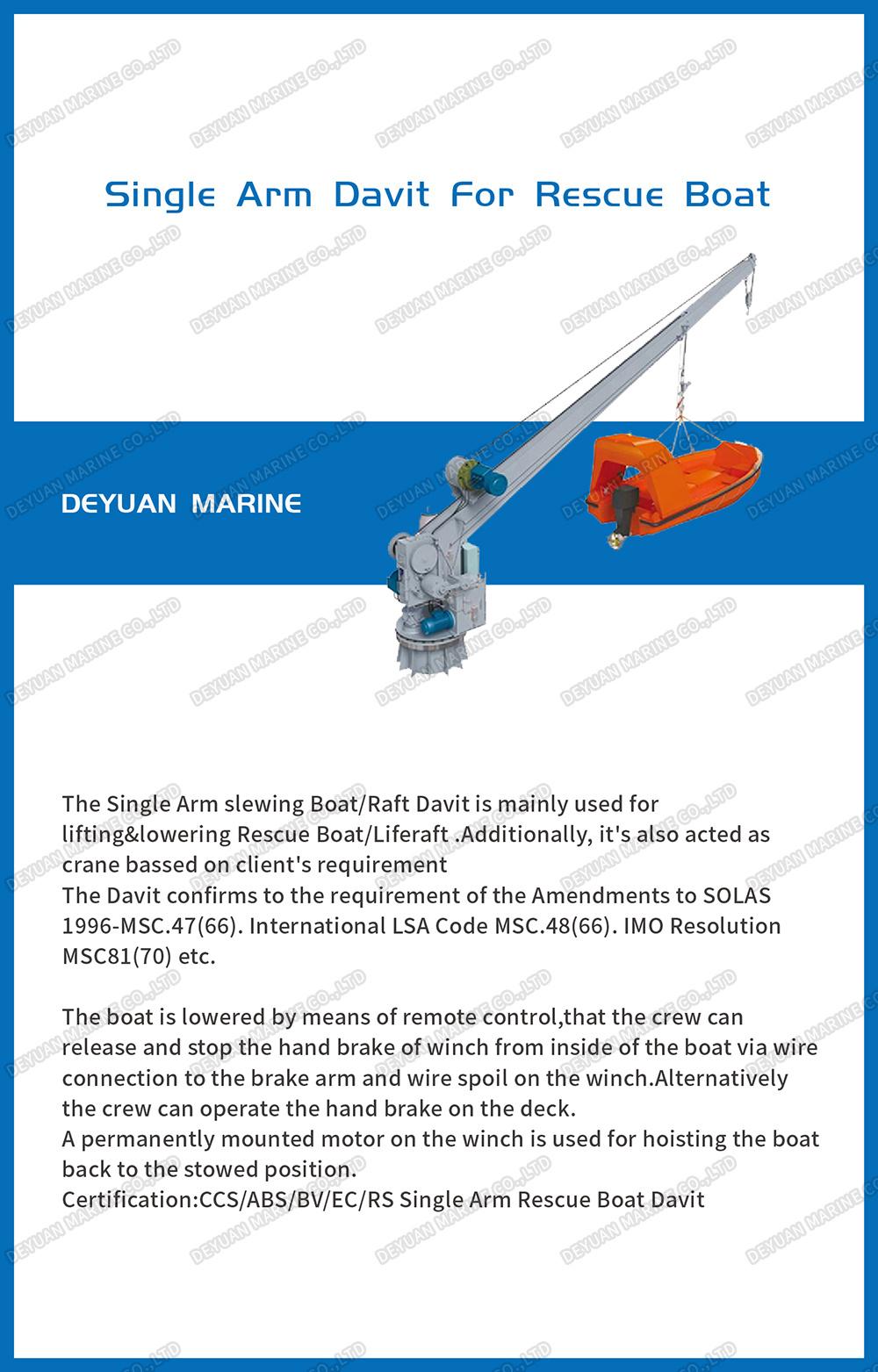

Single Arm Type Davit for Solas Fast Rescue Boat
Single Arm Type Davit Crane for Solas Fast Rescue Boat: The Single Arm slewing Boat/Raft Davit is mainly used for lifting&lowering Rescue Boat/Liferaft .Additionally, it's also acted as crane bassed on client's requirement
The Davit confirms to the requirement of the Amendments to SOLAS 1996-MSC.47(66). International LSA Code MSC.48(66). IMO Resolution MSC81(70) etc.
The boat is lowered by means of remote control,that the crew can release and stop the hand brake of winch from inside of the boat via wire connection to the brake arm and wire spoil on the winch.Alternatively the crew can operate the hand brake on the deck.
A permanently mounted motor on the winch is used for hoisting the boat back to the stowed position.
The requirements as stated in the current SOLAS regulations.It has CCS, BV, RINA, ABS approval.
  More details of Single Arm Type Davit Main Details: *The Single Arm Slewing Davit is a free-standing, deck-mounted davit consisting of a davit arm, column and electric winch
*Manual slewing type and hydraulic slewing type are both available
*Easy to operate
*For the hydraulic slewing type davit, slewing out the fully manned rescue boat from its stowed position into launch position is done by means of the accumulated power obtained from a self-contained hydraulic power pack unit.
*Other sizes/dimensions available on request
 Basic specification for enquiry:
Required lifting capacity
Outreach - min / max
Lifting height
Lifting speed
Luffing time
Self-weight of the davit
Power pack: (hydraulic, electric, or any other)
Power source
Required Classification societies

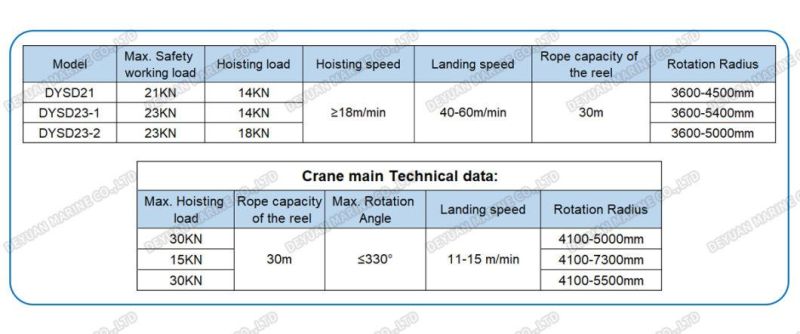

Technical Parameters of Single Arm Type Davit for Solas Fast Rescue Boat
