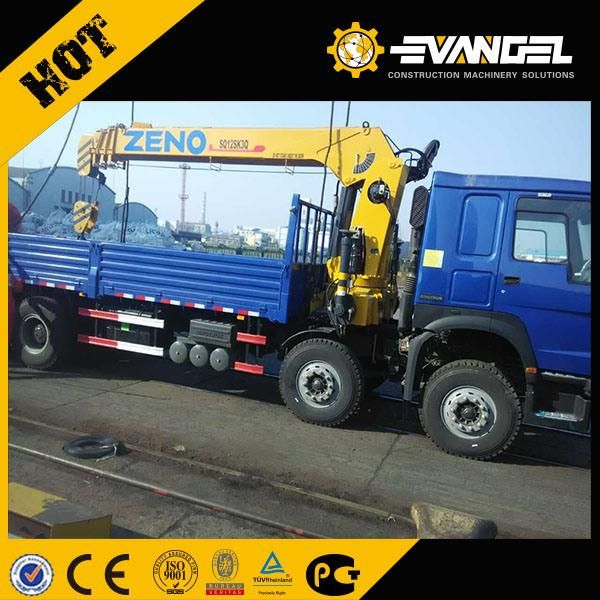

12 Ton Truck Mounted Crane Xzj5350jsqz for Vietnam

Evangel Industrial (Shanghai) Co., Ltd.
  • Kerb Mass：18090kg
  • Distributed on 1st and 2：1020kg
  • Distributed on 3th and 4th：7860kg
  • Dimension Inside：8000*2300*600mm
  • Overall Dimension L*W*H：12100*2496*3900mm
  • Wheelbase：1800+4600+1350mm

Base Info

  • Model NO.：XZJ5350JSQZ
  • Front Track：2022mm
  • Rear Track：1830mm
  • Front Over Bang：1500mm
  • Rear Over Bang：2850mm
  • Transport Package：Nude
  • Specification：ISO
  • Trademark：EVANGEL
  • Origin：Xuzhou, China
  • Production Capacity：for Example: 50, 000 PCS,Year.

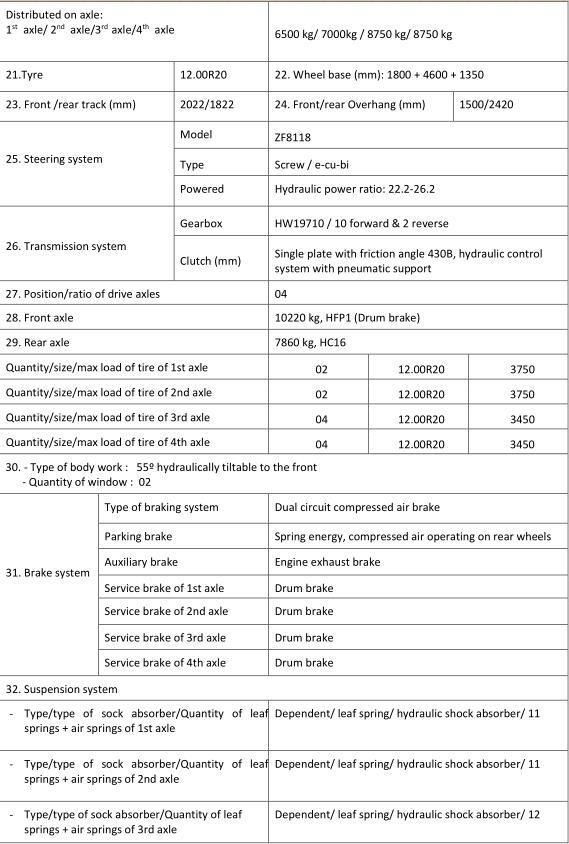

Description

SINOTRUK HOWO 8Cab HW76 cab ,two doorsDimension(Lx W xH)mm12100Kerb masskg14560Total masskg31000Approach / departure angel  16/14Front/rear suspension mm1500/2734,2709Fuel typeDiesel EngineModel/Rated PowerSINOTRUK ENGINE,WD615.69Displacement/ power 9726/247kwEmission StandardEuro IITorque1350Displacement(ML)9726manufacturerChina National Heavy Duty Truck Group Corp., Ltd.Diesel 4-stroke, 6-cylinder in line with water cooling, turbo- chargingDriving type 8Wheel base 1800+4600+1350mm GearboxHW19710    10 forward&2 reverseType12.00R20    10pc   ColorOptionalMax SpeedKm/h90Cargo size8000
UNITSCrane model SQ12SK3Q
Max lifting capacityKG12000
Max lifting capacityT.M30
Recommend powerKW30
Max oil flowL/MIN63
Max pressureMPA26
Oil Tank CapacityL160
Crane weightKG4200
Installation spaceMM1300
Rotation angleDEGREE360
Extension lengthMM13000
Lifting heightMM15000
Max elevationDEGREE7512 Ton Truck Mounted Crane Xzj5350jsqz for Vietnam
12 Ton Truck Mounted Crane Xzj5350jsqz for Vietnam
12 Ton Truck Mounted Crane Xzj5350jsqz for Vietnam

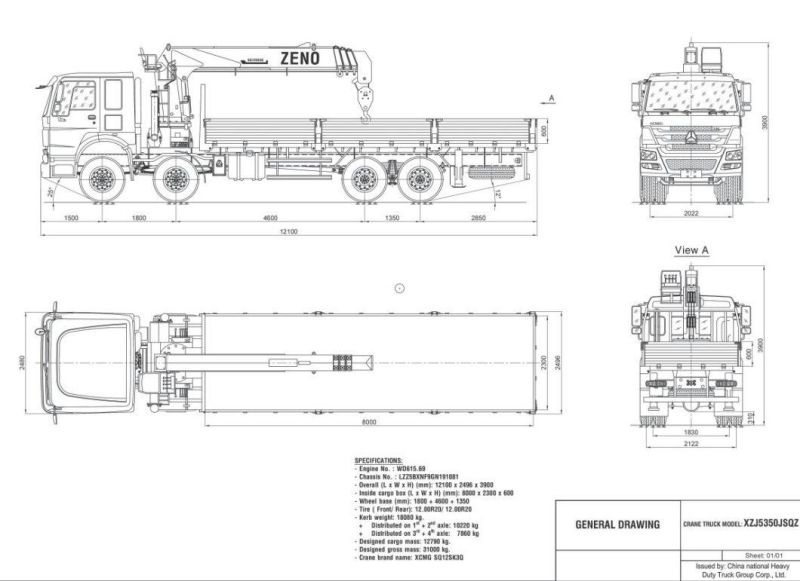

Drawing of finished truck mounted crane:

12 Ton Truck Mounted Crane Xzj5350jsqz for Vietnam

Photos
:12 Ton Truck Mounted Crane Xzj5350jsqz for Vietnam
