• Model NO.：CTY. E
• Trademark：NIU LI
• Origin：Heshan City, Guangdong Province, China.
• HS Code：8427900000
• Production Capacity：10000

Basic Info.

Model NO. CTY. E Trademark NIU LI Origin Heshan City, Guangdong Province, China. HS Code 8427900000 Production Capacity 10000

Product Description

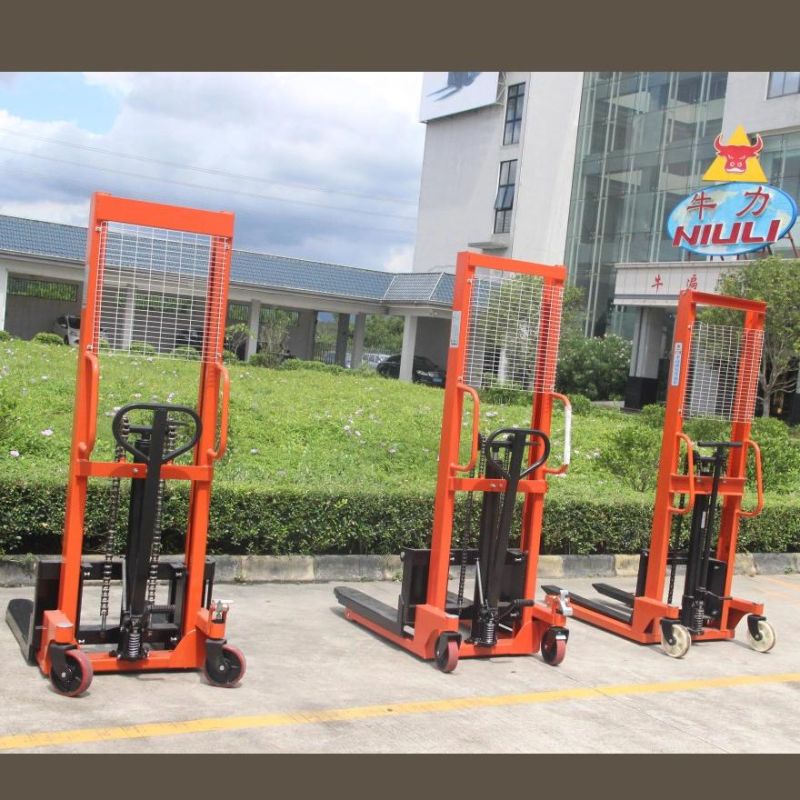

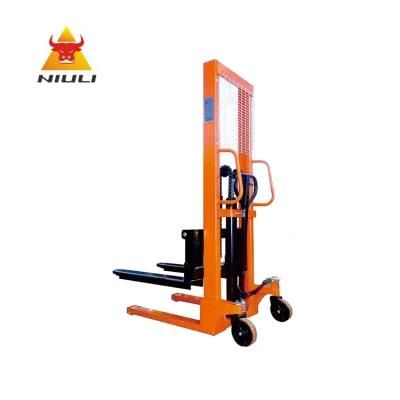

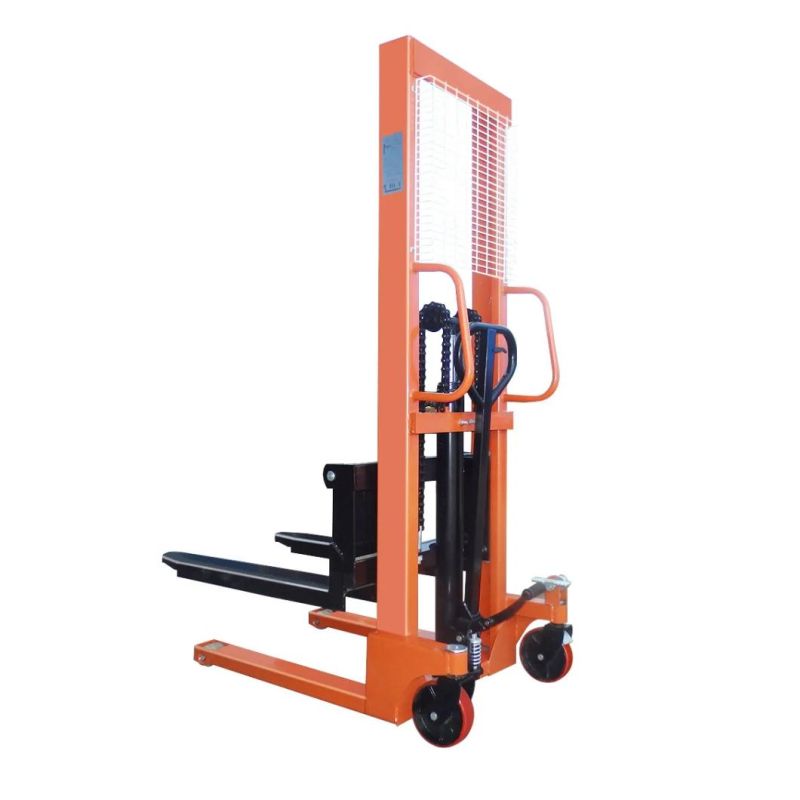

1.5ton Hand Pallet Lifter Manual Stacker Hydraulic Stacker

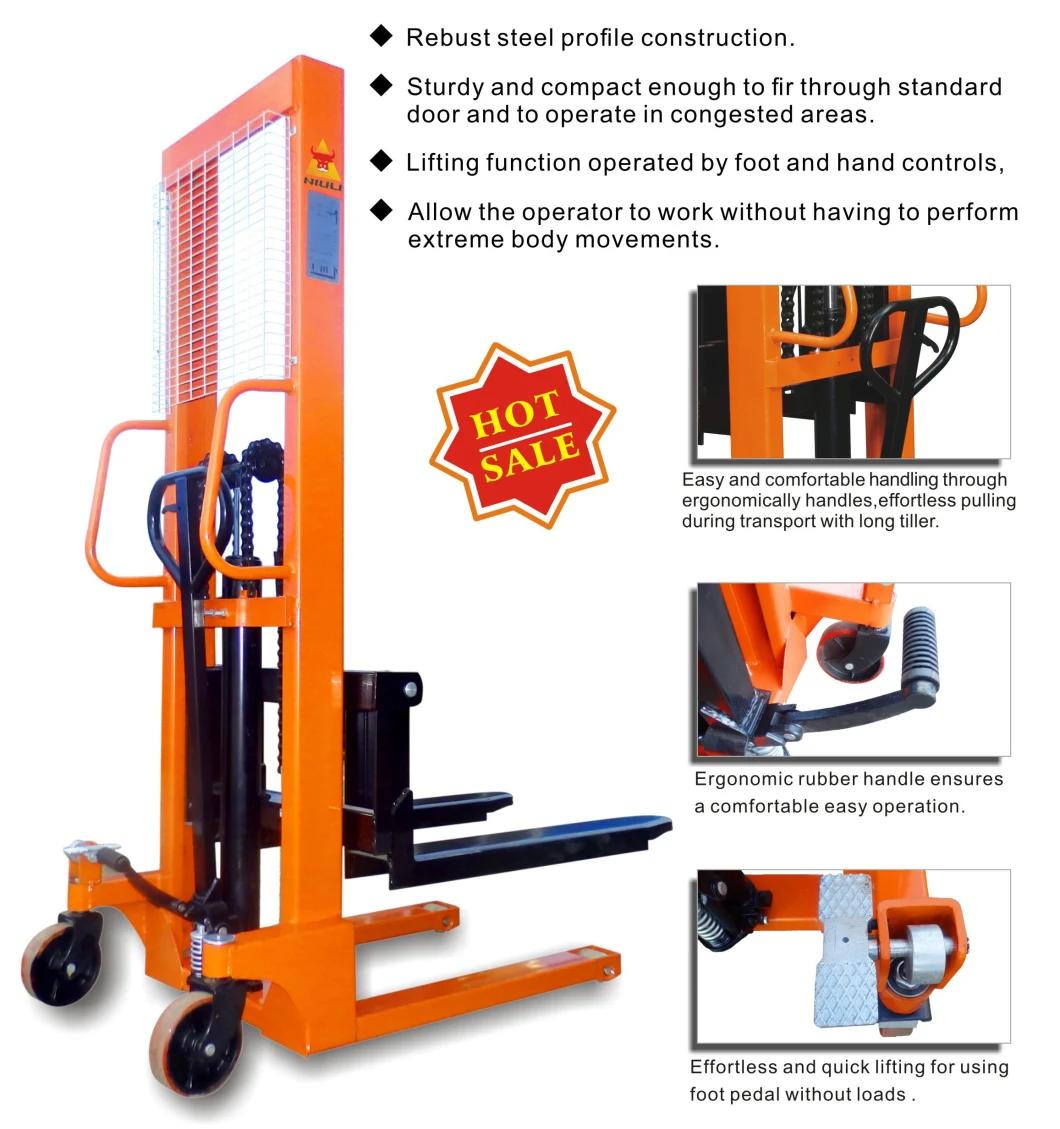

Hydraulic stacker, also known as hydraulic forklift, is a low-cost, non-polluting, non-powered loading and unloading product. It is compact, flexible and easy to operate. It is widely used in factories, workshops, warehouses, stations and other places.




Equipped with a constant velocity controlling value, Variation of loads do not effect forks lowering speed.
Top quality hydraulic pump and cylinder.
Compact design and strong steel construction

1. Capacity: 1000kg, 1500kg, 2000kg, 3000kg.
2. Max Lifting Height: 1600mm, 2500mm.
3. Height Of Forks: 80-100mm.
4. Fork Of Length: 900mm.
5. Adjustable Width Of The Forks: 320-700mm.
6. Self Weight: 110kg-280kg.

Model	CTY-E1.0	CTY-E2.0
Capacity(kg)	1000	2000
Max.lifting height(mm)	1600	1600
Lowered height of forks(mm)	90	90
Fork length (mm)	900	900
Adjustable Width of fork(mm)	320-740	360-740
Lifting speed(mm/stroke)	20	14
lowering speed(mm/stroke)	Controllable	Controllable
Outer width of front legs (mm)	690	690
Operation power of crank(kg)	24	32
Min.refuel volume of fuel tank(L)	1.5	2.0
Front wheel size(mm)	φ75x52	φ75x70
Rear wheel size(mm)	φ180x50	φ180x50
Overall size(mm)	2030x780x1450	2040x780x1470
Self Weight(kg)	150	250
