• Model NO.：GTWY
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Capacity：227kg
• Lift Height：3.6m, 4.8m
• Platform Size：1.3m×0.70m
• Standard Lifting Power：AC Electrical Power Supply
• Optional Lifting Power：Battery Operated
• Voltage：110V, 220V, 230V, Customize
• Machine Size：1.45*0.88*1.75m; 1.65*0.88*2.05m Depending Models
• Moving Way：Self Propelled
• Optional Moving Way：Battery Powered
• Safety Precaution：Deadman Switch
• Advantage 1：Standard Forklift Hole for Safe Loading
• Advantage 2：AC Power on Platform for Use Electric Tools
• Advantage 3：Cylinder Holding Valve, Anti-Explosion Function
• Transport Package：Plastic Film
• Specification：2.2 CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Set Per Year

Basic Info.

Model NO. GTWY Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Capacity 227kg Lift Height 3.6m, 4.8m Platform Size 1.3m×0.70m Standard Lifting Power AC Electrical Power Supply Optional Lifting Power Battery Operated Voltage 110V, 220V, 230V, Customize Machine Size 1.45*0.88*1.75m; 1.65*0.88*2.05m Depending Models Moving Way Self Propelled Optional Moving Way Battery Powered Safety Precaution Deadman Switch Advantage 1 Standard Forklift Hole for Safe Loading Advantage 2 AC Power on Platform for Use Electric Tools Advantage 3 Cylinder Holding Valve, Anti-Explosion Function Transport Package Plastic Film Specification 2.2 CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description

Europe 3m 5m Self Propelled Telescopic Single Mast Man Lift Introduction:

Jinan PLK GTWY Series aluminum alloy aerial work platforms are easy to use and cost effective, making them the best choice for a wide range of applications. One person can easily set them up and get to work within minutes, providing the ideal tool for almost any access application. Their lightweight and compact size makes the platforms convenient to use in schools, churches, flower shop, warehouses and more. GTWY series aluminum lift platforms also provide solutions for inside work on construction sites, such as high rises, it can go in and out the elevator smoothly as well as being perfect for easy construction purposes.

Date Sheet

Model	GTWY-T3.6	GTWY-T4.8
Max. Working Height	5.60m	6.80m
Max. Platform Height	3.60m	4.80m
Loading Capacity	227kg	227kg
Occupants	(indoor)2/(outdoor)1	(indoor)2/(outdoor)1
Overall Length	1.36m	1.36m
Overall Width	0.76m	0.76m
Overall Height	1.7m	1.98m
Platform Dimension	1.3m×0.70m	1.3m×0.70m
Wheel Base	1.04m	1.04m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	43/35sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.5kW	2×12VDC/0.5kW
Lifting Motor	24VDC/1.3kW	24VDC/1.3kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	820kg	980kg

Standard Features:

Cylinder holding valve

Emergency stop button

Two controllers operation

Emergency lowering system

Leveling sensor

Forklift pockets

All motion alarm

Transport tie hole

Battery charger indicator

Electric limit switch

Automatic pothole protection

Derivable at full height

Onboard diagnostic system

Options:

AC power on platform

Overload sensor with alarm

Flashing Beacon

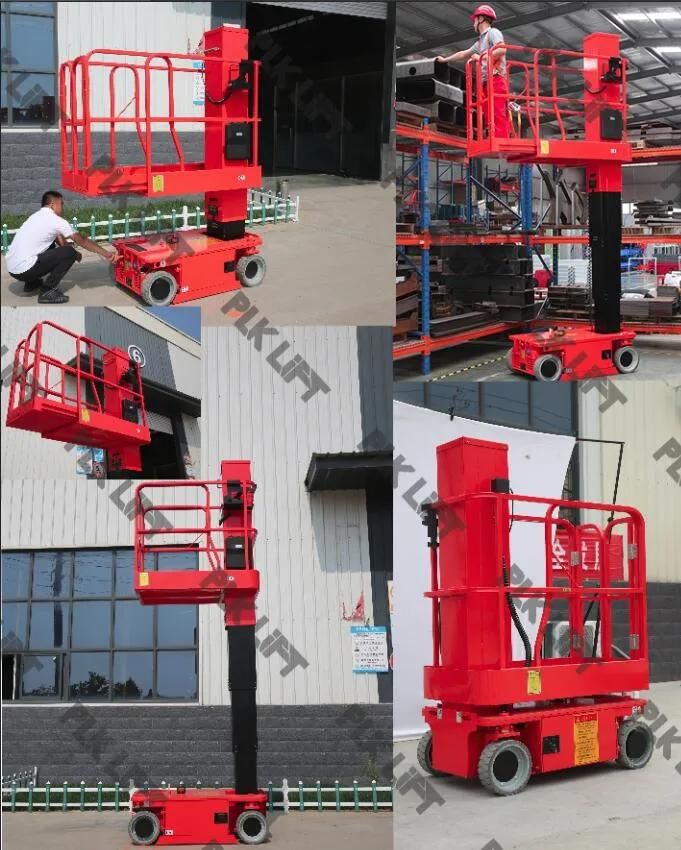

Photos Display
