• Model NO.：GL-SC
• Tilting：90 Degree Manual
• Color：Yello
• Cap Qty：4, 6, 8, 10, 12
• Power Supply：Battery
• Lifting Method：Vacuum
• Control：Wire Controller
• OEM：Accepted
• Coating：Powder Spray
• Transport Package：Wooden Box
• Specification：600kg or customized
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Sets,Month

Basic Info.

Model NO. GL-SC Tilting 90 Degree Manual Color Yello Cap Qty 4, 6, 8, 10, 12 Power Supply Battery Lifting Method Vacuum Control Wire Controller OEM Accepted Coating Powder Spray Transport Package Wooden Box Specification 600kg or customized Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Sets/Month

Product Description

600kgs 800kgs Forklift Mounted Metal Steel Sheet Suction Vacuum Lift

This is the vacuum lifting system specially designed for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. It can be connected to the forklift or stacker to lift and transport various panels.

Data sheet:


Model	GL-SC-600H
Lifting Capacity	600 kg
Cup Qty	6
Single Cup Size	250mm
Frame size	see the drawing on the next page
Turning up/down side	Automatic 90° electrically
Rotation	Manual 360° Rotation
Tilting left/right side	Manual 90° Turnning

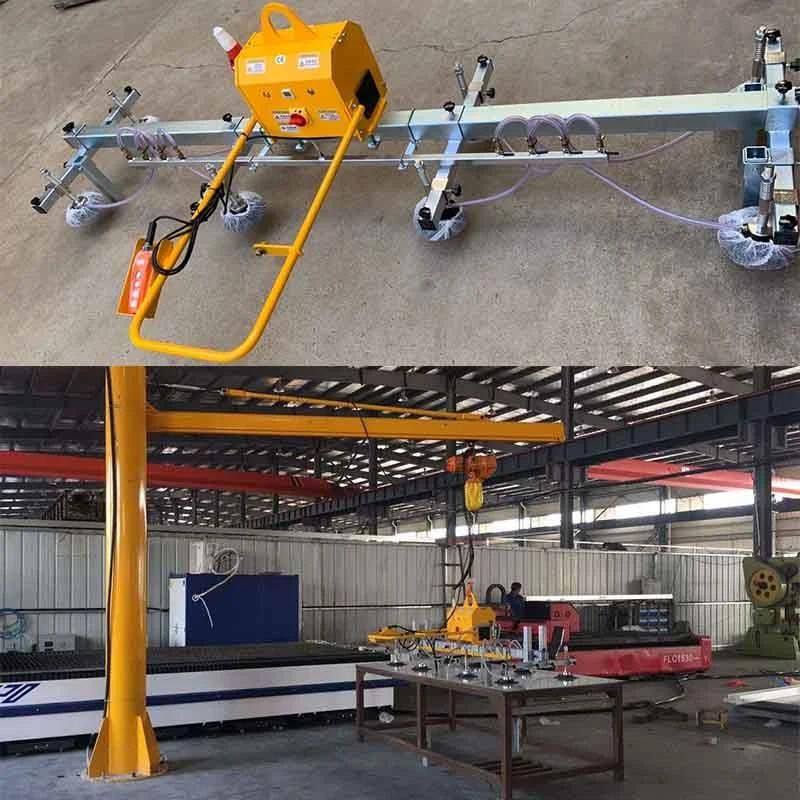

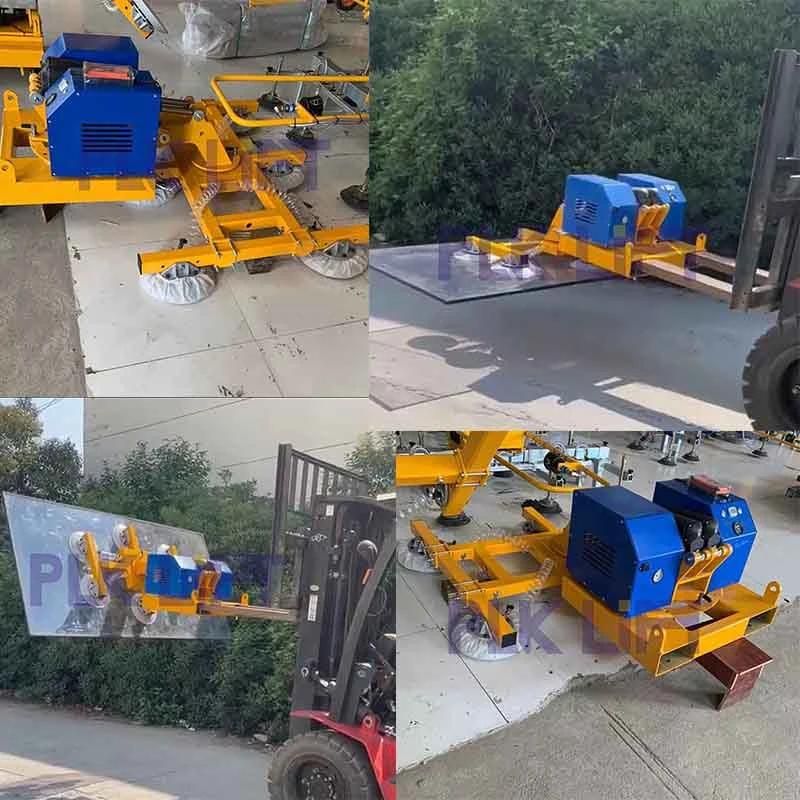

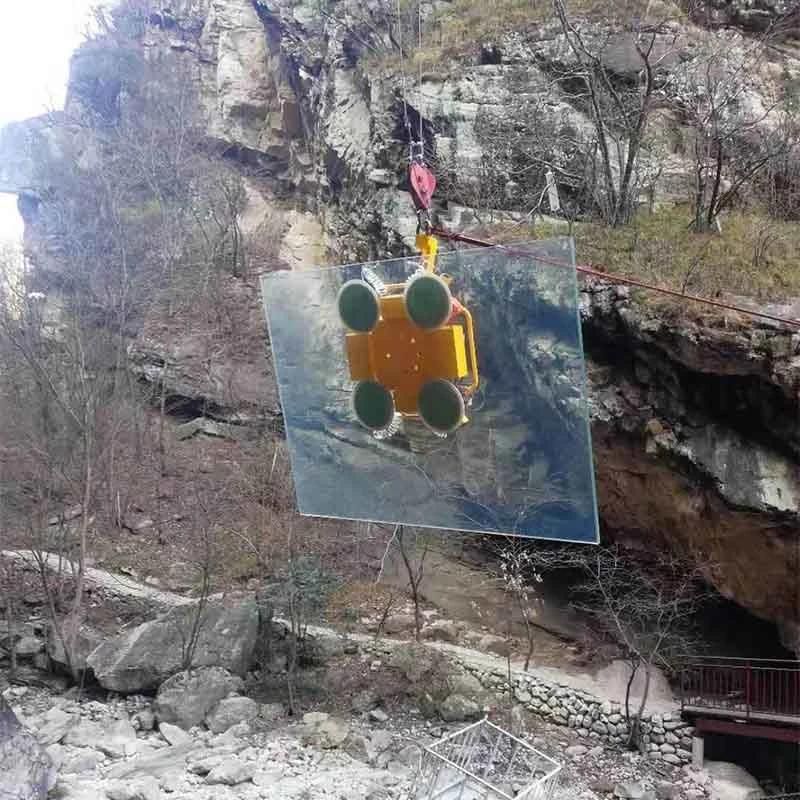

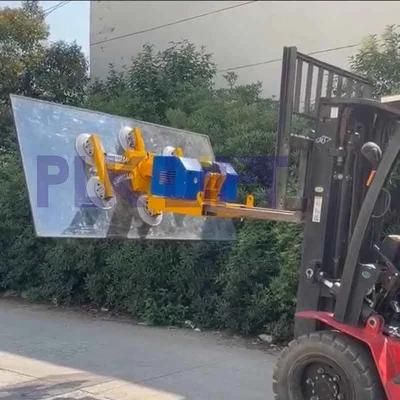

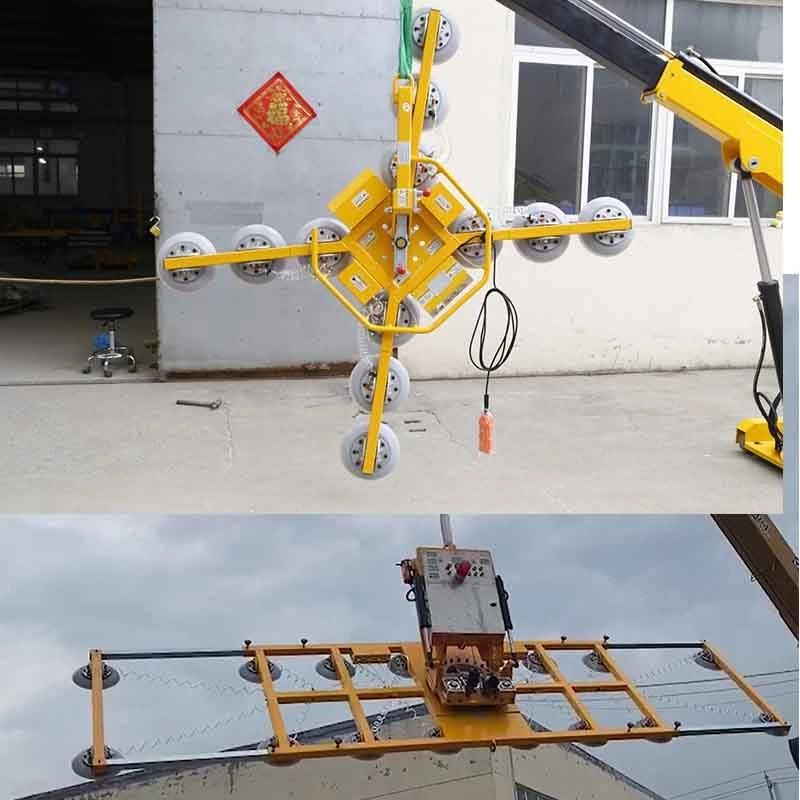

Some pictures display:

Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

Features & Advantages:

1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt good quality vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device.

If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8. Various customized voltage and battery charger is available to meet client from all over the world
