Morn Brand 8m Towable Articulating Spider Boom Lift
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Tree Care and Maintance
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Middle-Level
- Moves：Vehicular
- Driven Type：AC
- Running Mode：Moving
Base Info
- Model NO.：ATB0.2-8
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Working Height：10m
- Outreach：8m
- Load Capacity：200kg
- Lift Power：AC,Battery, or Petrol Engin or Bi-Engine
- Moving：by Car or Truck Tow
- Transport Package：Film Packed and Load in One 20FT Container
- Specification：package size
- Trademark：MORN BRAND
- Origin：China
- HS Code：84289090
- Production Capacity：10 Sets Per Month
Description
Item
ATB0.2-8
Platform size(mm)
900*700
Rated capacity(kg)
200
Lifting height (m)
8.0
Max. work height (m)
10.0
Horizontal length(m)
4.0
Guardrail height (m)
1.1
Turn around angle(°)
360
Power
AC power or(optional:battery, diesel engine or Bi-energey)
3. Optional for MORN brand 8m towable articulating spider boom lift

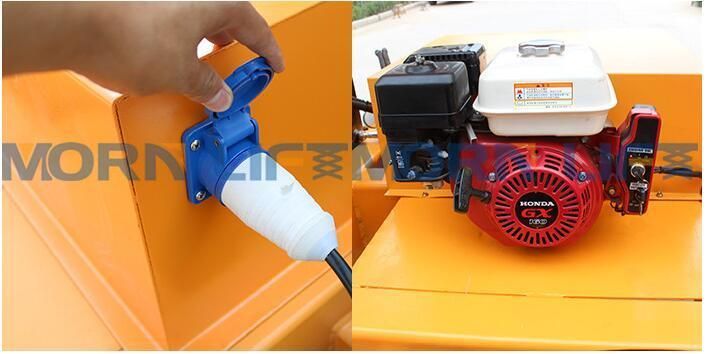

Lift power:Electric lift power, battery lift power, petrol engine lift power
Lift power also could be double lift power, eg: Battery lift powre and electric lift power, towable boom lift
working indoor use electric lift, outdoor use battery lift power.
4. MORN brand 8m trailing articulated boom lift details show

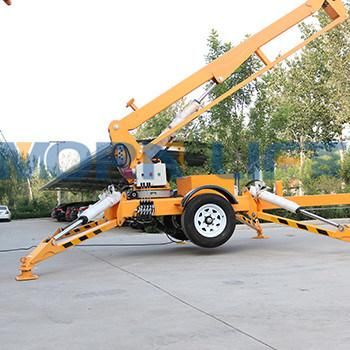

Support legs keep towable boom lift working safety, Hydraulic support legs could be controlled by control bar.
Morn will test all the boom lift before delivery.

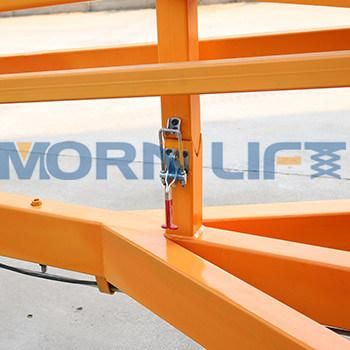

In case of boom shake, lock the boom before tow by the car

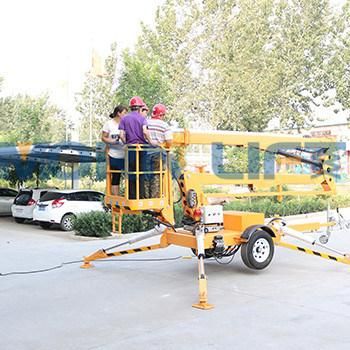

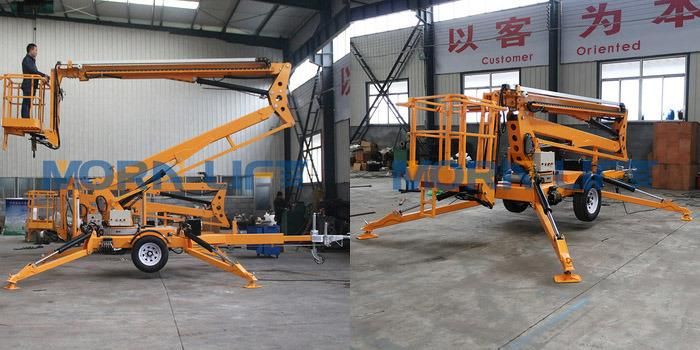

5. Finished machine pictures.
