11m Working Height Mobile Scissor Lift with CE Certificate

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Weight Level
  • Moves：Moving
  • Driven Type：Hydraulic

Base Info

  • Model NO.：MK900
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Platform Height：9 M
  • Working Height：11 M
  • Loading Capacity：500kg
  • Platform Size：1.8*1.00m
  • Lifting Time：80s
  • Power Voltage：1.5kw
  • Weight：1260kg
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：1.95*1.18*1.91m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

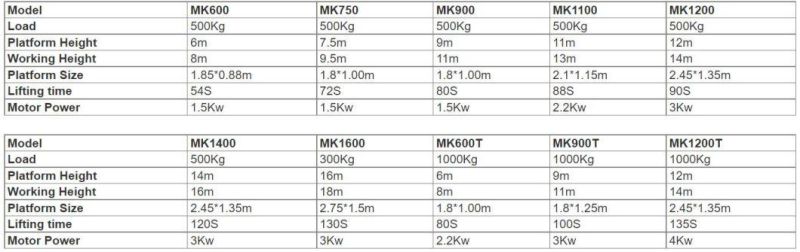

 Model List
 11m Working Height Mobile Scissor Lift with CE Certificate
Standard Configuration for Manual Pushing Around Scissor Lift
  1. AC power : 220V 50Hz/60Hz, single phase or 380V 50Hz/60Hz, three phases
  2. Rain-proof electric cabinet
  3. Beacon light
  4. Inflated Tyre
  5. Forklift slot
  6. Towing hook
  7. Chinese domestic brand hydraulic power pack
  8. Pressure gauge
  9. Auxiliary release valve
  10. Level gauge
  11. Emergency stop button both on platform and ground
  12. Key lock power switch
  13. Lockable stabilizer
  14. Anti-skid floor on platform with removable handrails
  15. Toe protection boards on the platform
  16. Operation voltage at 24V
  17. Ladders for access to the stowed platform (Ladder for easy accessibility)
  18. Limit switch provided for top motor shut off
  19. Removable control box on platform
  20. Interlock doors on platform
  21. Detachable/Foldable Fence
  22. Powder coating painting
  23. Spring mounted handles
  24. Nylon bush assembled in between each scissor
  25. Short Circuit and leakage protection system
11m Working Height Mobile Scissor Lift with CE Certificate
Optional Configuration for Manual Pushing Around Scissor Lift

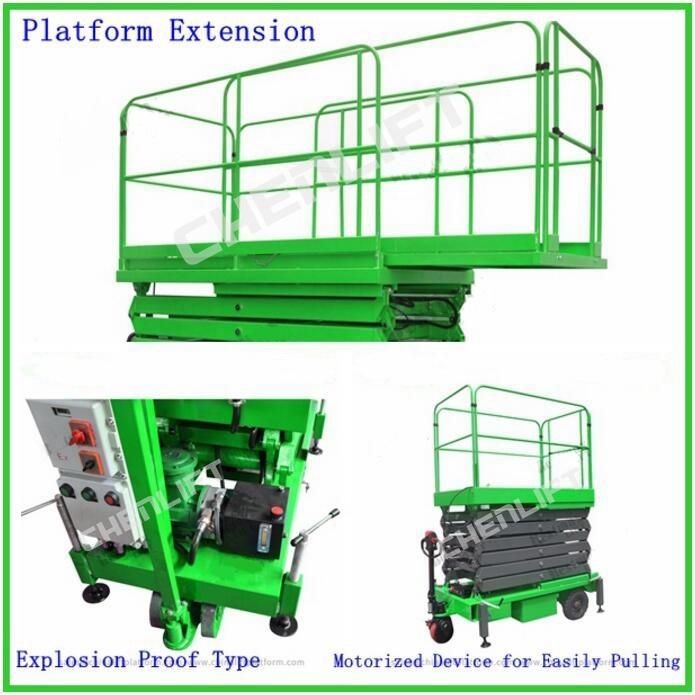

  1. Platform extension
  2. Overloading protection
  3. DC power supply
  4. Battery Indicator for DC power
  5. Hour meter for DC power
  6. AC&DC power supply
  7. Motorized device for easily pulling
  8. Horn available for motorized device
  9. Explosion proof type
  10. Maintenance supporting bar
  11. Solid Tyre
  12. Overseas brand hydraulic power pack
  13. Outrigger sensor
  14. Horn on the platform
  15. AC power to the platform
  16. Platform working light
  17. Anti-burst valve on cylinder
11m Working Height Mobile Scissor Lift with CE Certificate
Our Company
Our company, CHENLIFT (SUZHOU) MACHINERY CO., TLD. is founded in 2001 and is located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu) Our company has professional organization in manufacturing, sales and services of hydraulic lifting machinery and aerial working platform

We, Bestmax, have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa
11m Working Height Mobile Scissor Lift with CE Certificate

Certificates
11m Working Height Mobile Scissor Lift with CE Certificate

Factory Equipment
11m Working Height Mobile Scissor Lift with CE Certificate

Client &Exhibition
11m Working Height Mobile Scissor Lift with CE Certificate

Other Related Product
11m Working Height Mobile Scissor Lift with CE Certificate

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
