• Model NO.：MK600(SJY0.5-6)
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：6 M
• Max Working Height：8 M
• Load Capacity：500 Kg
• Platform Size：1.85*0.88m
• Platform Extension Length：Optional Configuration
• Charger：1.5kw
• Lifting Time：Lifting Time
• Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
• Specification：1.95*1.08*1.28m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MK600(SJY0.5-6) Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Max Platform Height 6 M Max Working Height 8 M Load Capacity 500 Kg Platform Size 1.85*0.88m Platform Extension Length Optional Configuration Charger 1.5kw Lifting Time Lifting Time Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.95*1.08*1.28m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

Manual Pushing Scissor Lift

Mini Mobile Scissor Lift has compact design structure(without outrigger, so the preparation time will be less, and enhance the working efficiency) less weight(can push easily by manpower)
The operators can operate the machine up&down on platform and ground. (It lifts by battery power)Product Description
Manual Pushing Scissor Lift is a scissor structure man lift for aerial work which can be towed by man power.
It is for one or two persons aerial working purpose.
The maximum platform height is 3m,6m,7.5m,9m,11m,12m,14m,16m.
And the maximum loading capacity is 300Kg, 500Kg, 1000Kg.
The mechanical structure make the platform stability, wide operating and high loading capacity.
Normal scissor lift lifting power is AC power, DC and both AC&DC power are also available for option.

Scissor lift platform is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for workers working on the platform with the guardrail. Besides the AC power, you also can add motorized device for assist walking.

Application for Scissor Lift
Scissor lift platform can be used in the factory, warehouse, public places , stations and so on.
It provides you a good choice for aerial working.

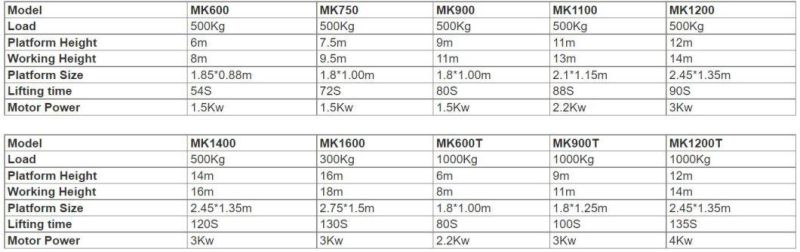

Specification

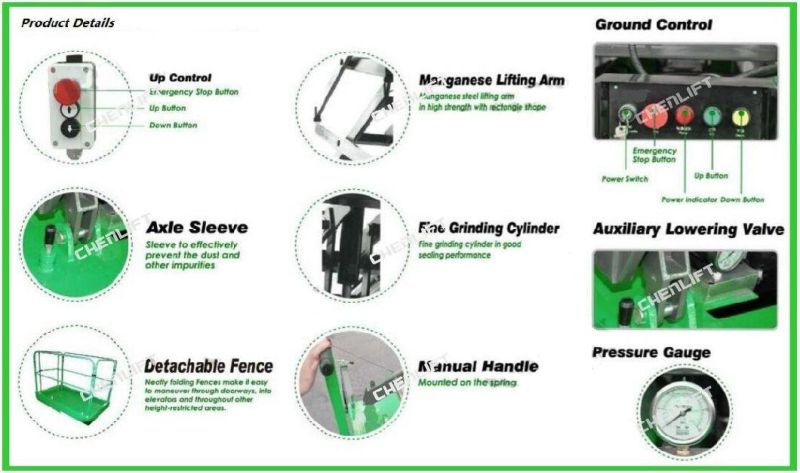

Details

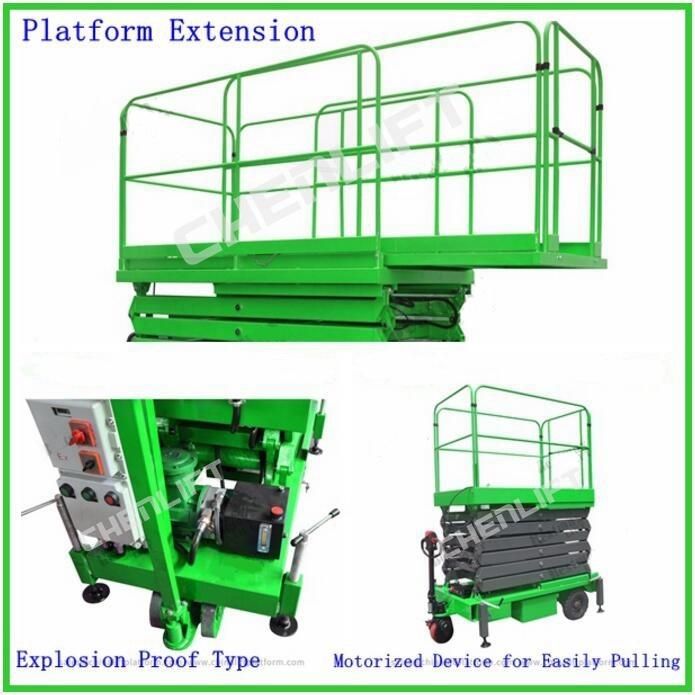

  Optional Configuration for Manual Pushing Around Scissor Lift

1. Platform extension
2. Overloading protection
3. DC power supply
4. Battery Indicator for DC power
5. Hour meter for DC power
6. AC&DC power supply
7. Motorized device for easily pulling
8. Horn available for motorized device
9. Explosion proof type
10. Maintenance supporting bar
11. Solid Tyre
12. Overseas brand hydraulic power pack
13. Outrigger sensor
14. Horn on the platform
15. AC power to the platform
16. Platform working light
17. Anti-burst valve on cylinder

Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa


Certificates


Factory Equipment


Client & Exhibition

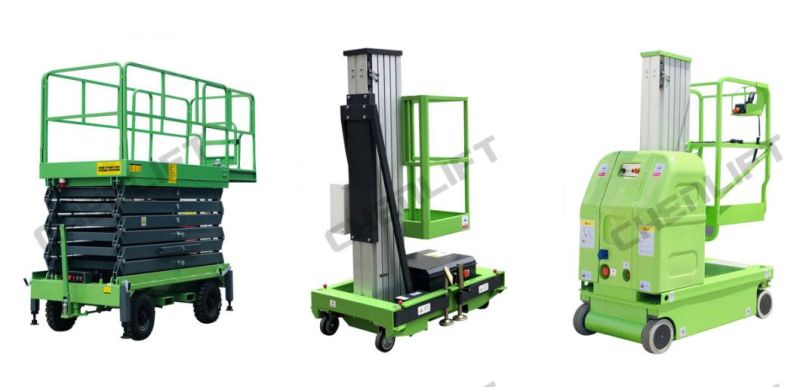

Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
