• Model NO.：GTZZ16D
• Moves：Self-propelled
• Driven Type：Hydraulic
• Running Mode：Aerial Work Platform
• Feature：Aerial Work Platform
• Certification：CE, ISO 9001
• Structure：Articulated
• Working Height Maximum：17.7m
• Platform Height Maximum：16m
• Horizontal Reach Maximum：9.5m
• Ground Clearance-Center：430mm
• Lift Capacity (Restricted)：230kg
• Platform Rotation：180°
• Drive Speed -Stowed：6.3 Km,H
• Turning Radius - Inside：3m
• Turning Radius – Outside：5.2m
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100PCS,Month
• Package size per unit product：130.00cm * 60.00cm * 150.00cm
• Gross weight per unit product：1800.000kg

Basic Info.

Model NO. GTZZ16D Moves Self-propelled Driven Type Hydraulic Running Mode Aerial Work Platform Feature Aerial Work Platform Certification CE, ISO 9001 Structure Articulated Working Height Maximum 17.7m Platform Height Maximum 16m Horizontal Reach Maximum 9.5m Ground Clearance-Center 430mm Lift Capacity (Restricted) 230kg Platform Rotation 180° Drive Speed -Stowed 6.3 Km/H Turning Radius - Inside 3m Turning Radius – Outside 5.2m Transport Package Bulk Specification SGS CE Trademark KUDAT Origin China HS Code 8428909090 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 130.00cm * 60.00cm * 150.00cm Gross weight per unit product 1800.000kg

Product Description

Description:

Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.

Features:

1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 10m to 20m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.

Item	GTZZ16D
Working height maximum	17.8m
Platform height maximum	15.8m
Working Radius Maximum	10m
Lifting Capacity	230kgs
Crossing Height Maximum	7.6m
Length-stowed	7.9m
Width-stowed	2m
Height-stowed	2m
Wheel Base	2.2m
Ground clearance	200mm
Platform Measurement	1.53×0.76m
Tailswing	0
Turning Radius Maximum	4.5m
Travel speed(stowed)	5km/h
Travel speed(raised or extend )	0.8km/h
Grade ability	30%
Solid Tire	28×9-15
Swing Speed	0~0.8rpm
Turntable Swing	360° Continuously
Platform Levelling	Automatical Levelling
Platform Rotation	±80°
Hydraulic Tank Volumne	70L
Total Weight	6720kgs
Control Voltage	24V
Travel Electric Motor	2×6.5KW
Battery	48/420V/Ah
Charger	48/40V/A

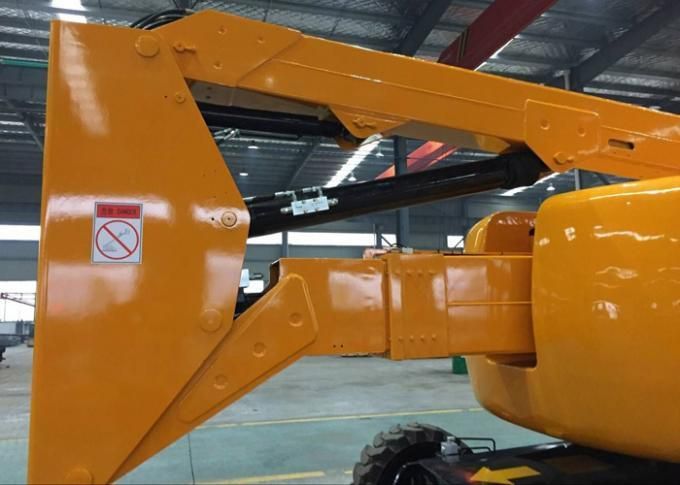

1.  Functions of positioning upward&outward and crossing

Functions of positioningupward&outward and crossingThearticulating boom machine offers muti-faceted functions of positioningupward,outward and crossing, so that you can reach whatever placeyouwant to go through various ways.

2. Complete safety devices

Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.

3. Compact structure
Thestructures with size lower than 16m and electric motor type arecompact,which make the boom can go through small opening and operateinsmall space.

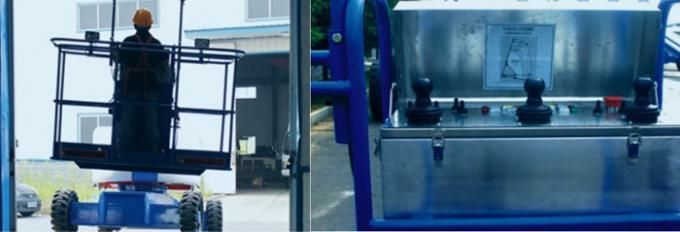

4. Control box
Fullproportion joysticks and CAN bus as well as PLC control system With high positioning accuracy are easy to be controlled and can beoperatedby the users at will. The stainless steel control box with sealingcoverand box cap, which can help prevent the electrical components formoistureand prevent the damage from welding slag.

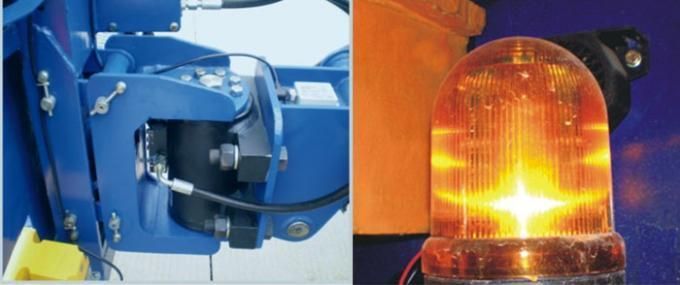

5. Strobe light------Give alerting signal when working

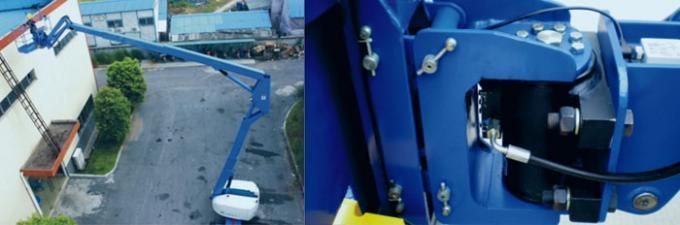

6. Rotary platform------The rotary actuator with standard configuration can make the rotation range of the platform reach ±80°, which makes your work more flexible.

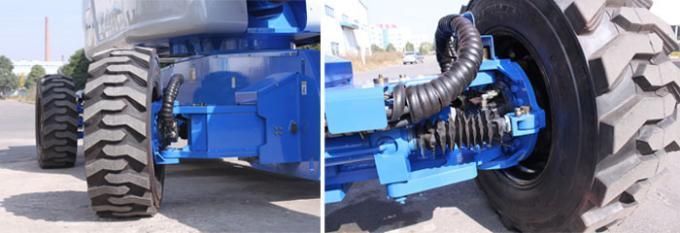

7. Active oscillation axle

Active oscillation axle can preceive the terrain, and can guarantee that the machine can land on four wheels even on uneven road without reducing the driving force

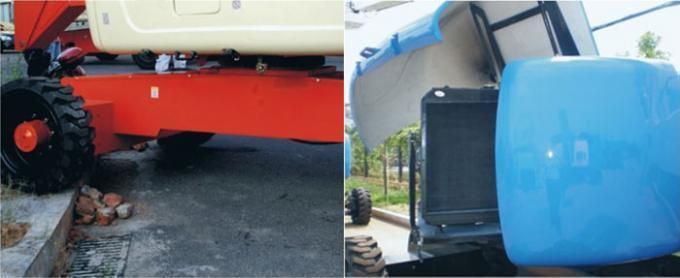

8. Swing-out engine tray   It is easy for maintenance and repair

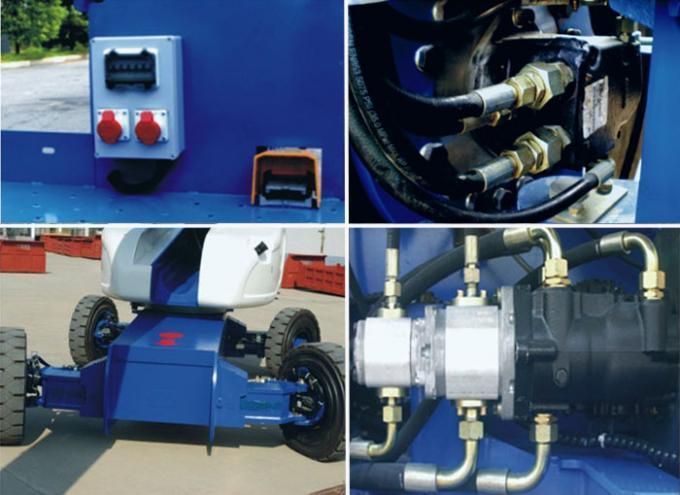

9. Hydraulic system

Closed circuit hydraulic traveling system has speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double value core circuit. which enhance the safety. The hydraulic components adopt European and North American pure brands.

10. Driving mode 4*4(optional)

The four-wheel drive is powerful with great grade-ability

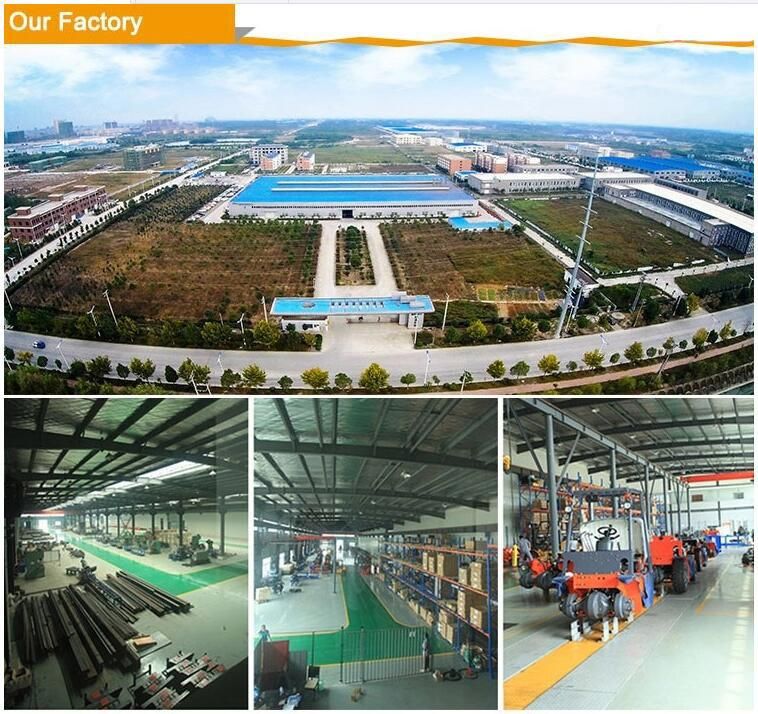

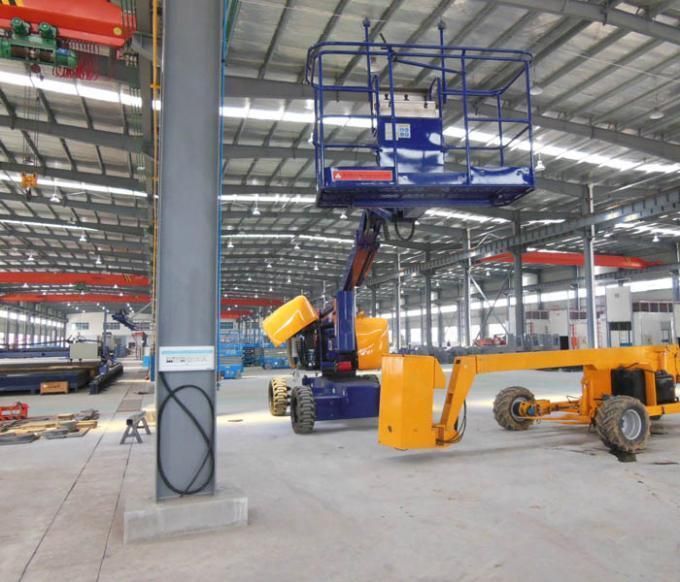

11.   Production plant
