• Model NO.：YS
• Origin：China
• HS Code：8425110000
• Production Capacity：5000 Sets Per Month

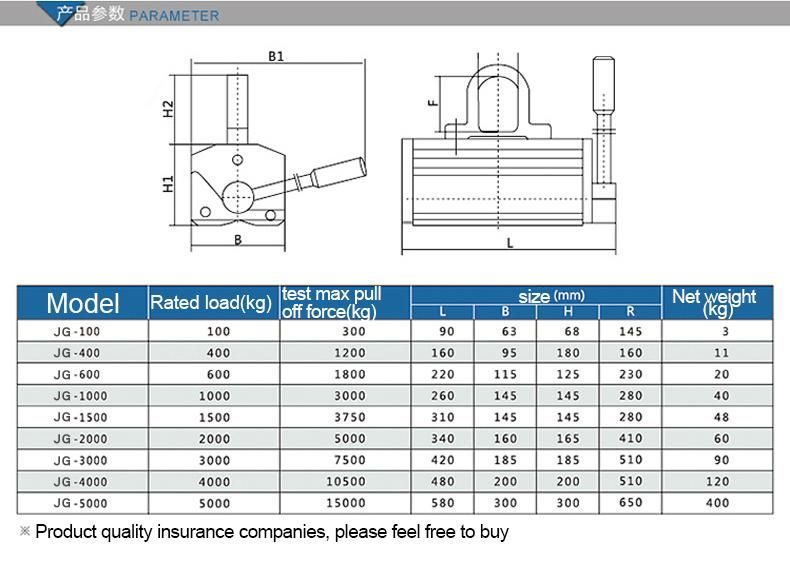

ModelRated capacity(Ton)Max tension(kg)Size(mm)Net weight(kg)LBHRYS-1001003009063681453YS-40040012001609518016011YS-600600180022011512523020YS-10001000300026014514528040YS-15001500375031014514528048YS-20002000500034016016541060YS-30003000750042018518551090YS-4000400010500480200200510120YS-5000500015000580300300650400Feature:

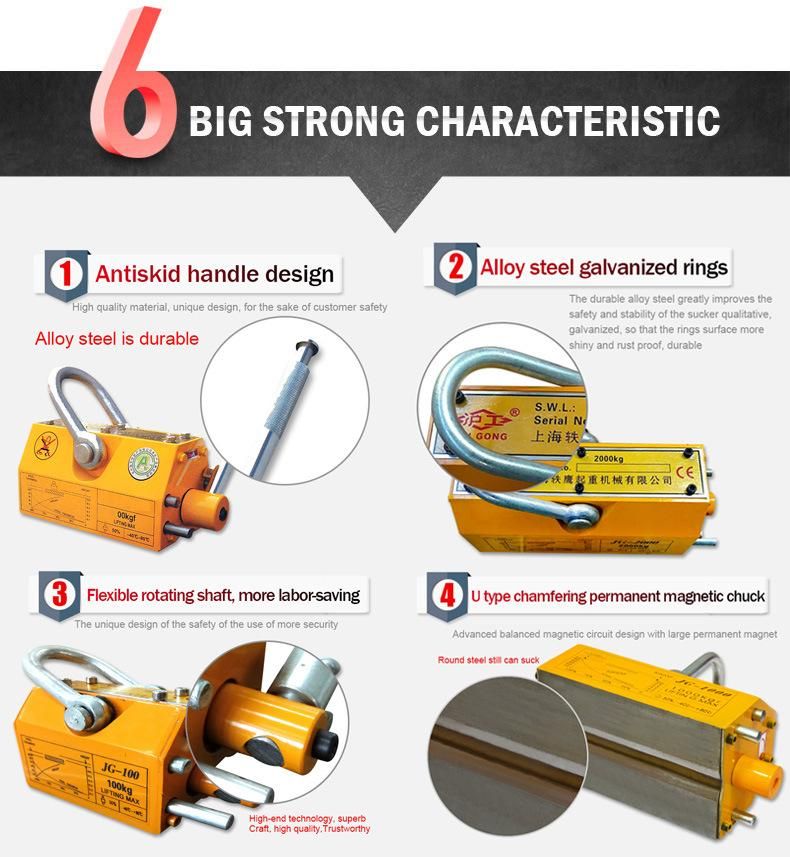

• High performance magnetic material is used to make it smaller in volume, lighter in weight and stronger in holding
• Using unique magnetic circuit design, remanence is almost zero
• More safe, the maximum pulling force is 3 times of the rated lifting force
• Handle switch is equipped with a safety button, which can be operated by one hand

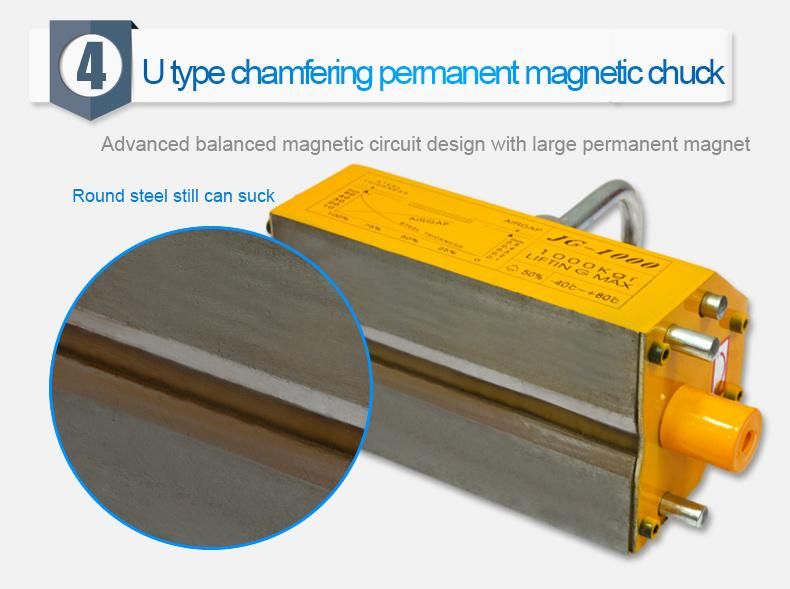

• Bottom surface of the permanent magnet crane has a ""V"" groove design, which can lift the round steel and steel plate
• No need for power supply, workbal at outside field
• Widely used in steel lifting and handling, flat mechanical parts, installation and handling of various abrasives
