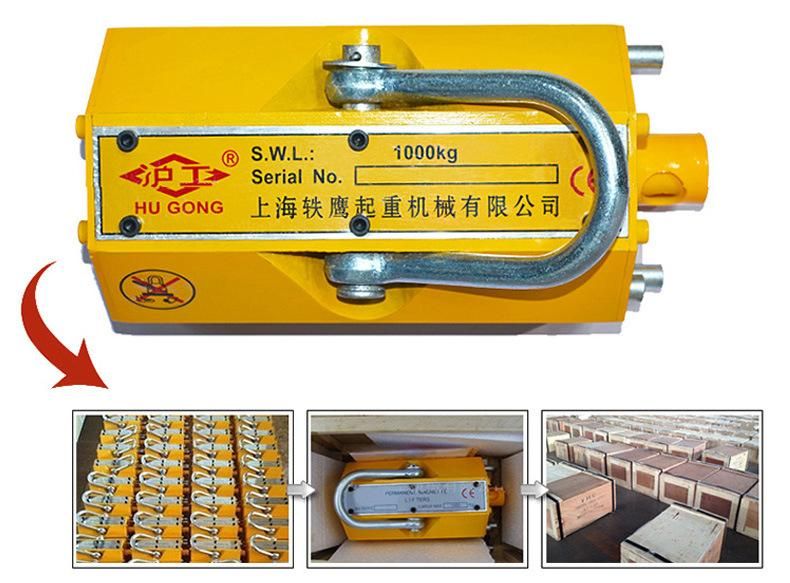

1 Ton Metal Magnetic Lifting Block Lifter

Shanghai Yiying Crane Machinery Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：1 Year
  • Safety：3 Times
  • Transport Package：Wooden Case
  • Specification：100 kg 200 kg 300 kg 500 kg 600 kg 1000 kg
  • Trademark：HUGO

Base Info

  • Model NO.：YS
  • Origin：China
  • HS Code：8425110000
  • Production Capacity：5000 Sets Per Month

Description

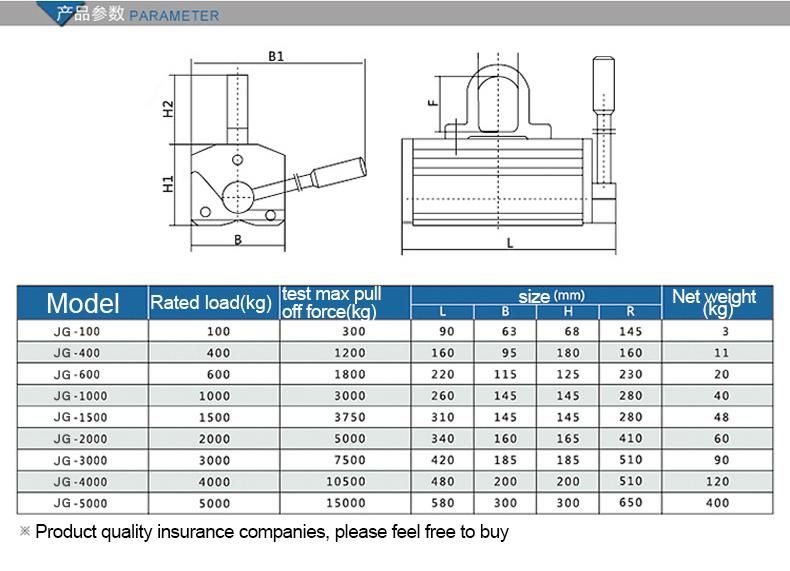

ModelRated capacity(Ton)Max tension(kg)Size(mm)Net weight(kg)LBHRYS-1001003009063681453YS-40040012001609518016011YS-600600180022011512523020YS-10001000300026014514528040YS-15001500375031014514528048YS-20002000500034016016541060YS-30003000750042018518551090YS-4000400010500480200200510120YS-5000500015000580300300650400Feature:

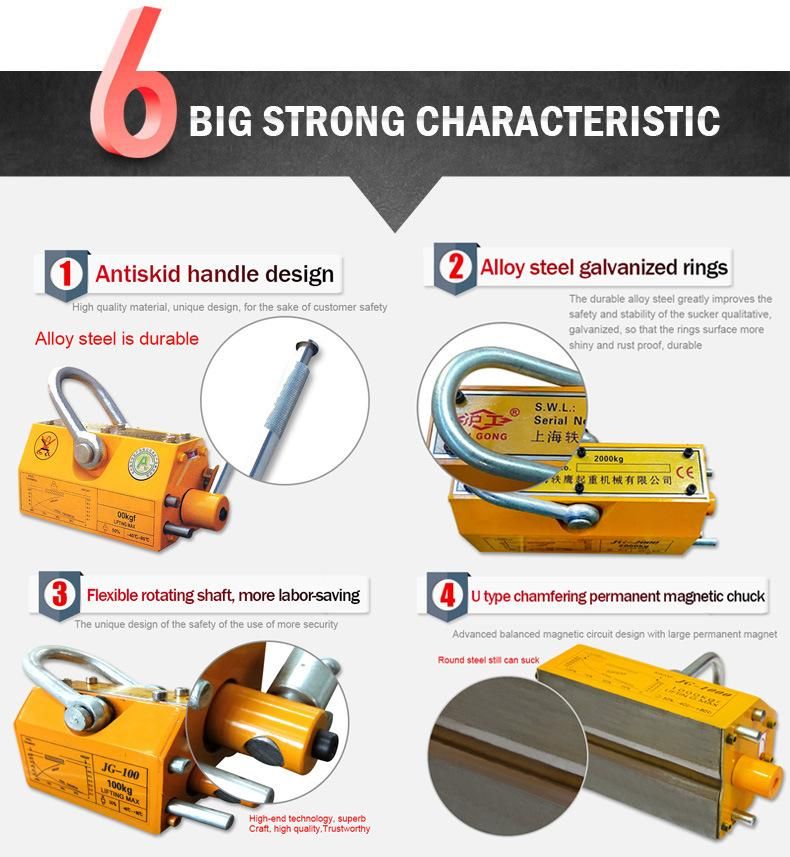

  • High performance magnetic material is used to make it smaller in volume, lighter in weight and stronger in holding
  • Using unique magnetic circuit design, remanence is almost zero
  • More safe, the maximum pulling force is 3 times of the rated lifting force
  • Handle switch is equipped with a safety button, which can be operated by one hand

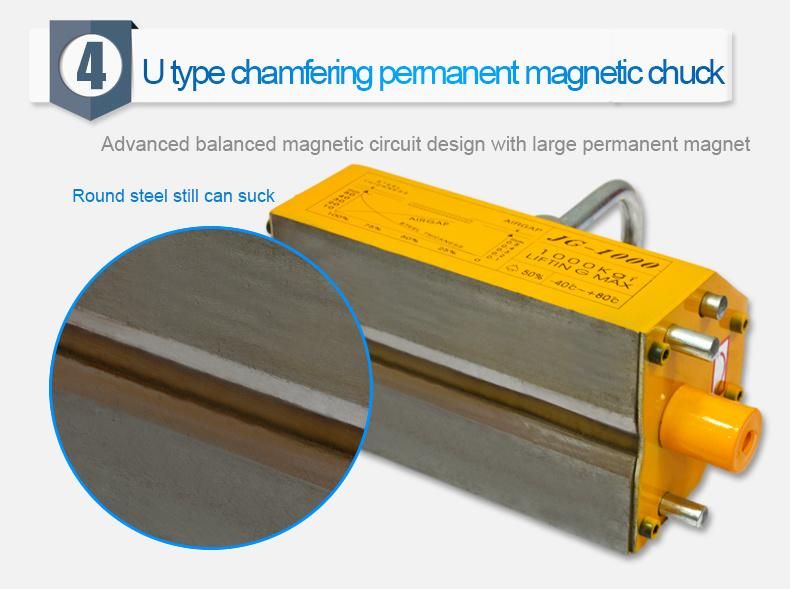

  • Bottom surface of the permanent magnet crane has a ""V"" groove design, which can lift the round steel and steel plate
  • No need for power supply, workbal at outside field
  • Widely used in steel lifting and handling, flat mechanical parts, installation and handling of various abrasives
