• Model NO.：CTY-A
• Max Height：>400mm
• Certification：ISO 9001:2008, Ce, RoHS, CS, ISO 9001:2000, SGS
• Transport Package：Iron Pallet
• Trademark：NIU LI
• Origin：Heshan City, Guangdong Province, China.
• HS Code：8427900000
• Production Capacity：10000

Basic Info.

Model NO. CTY-A Max Height >400mm Certification ISO 9001:2008, Ce, RoHS, CS, ISO 9001:2000, SGS Transport Package Iron Pallet Trademark NIU LI Origin Heshan City, Guangdong Province, China. HS Code 8427900000 Production Capacity 10000

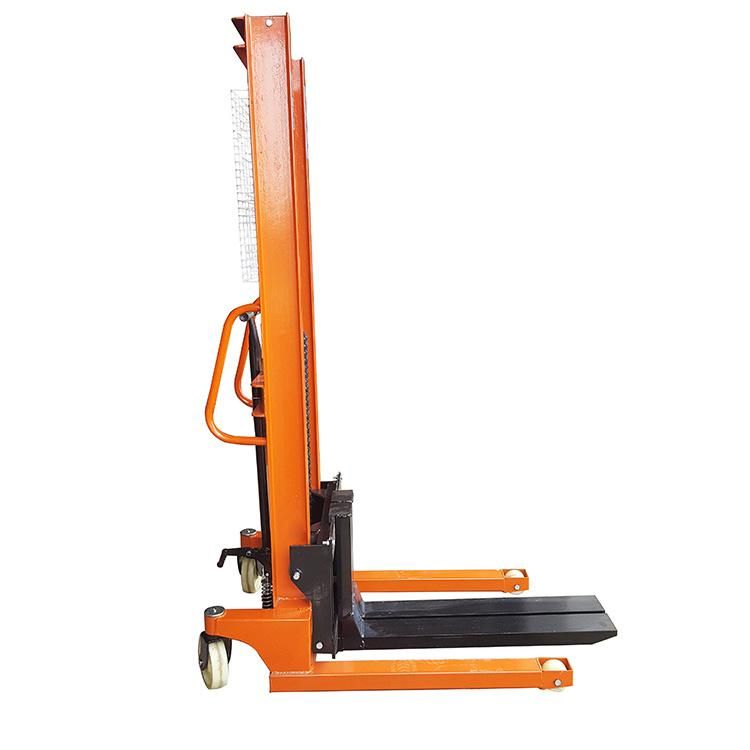

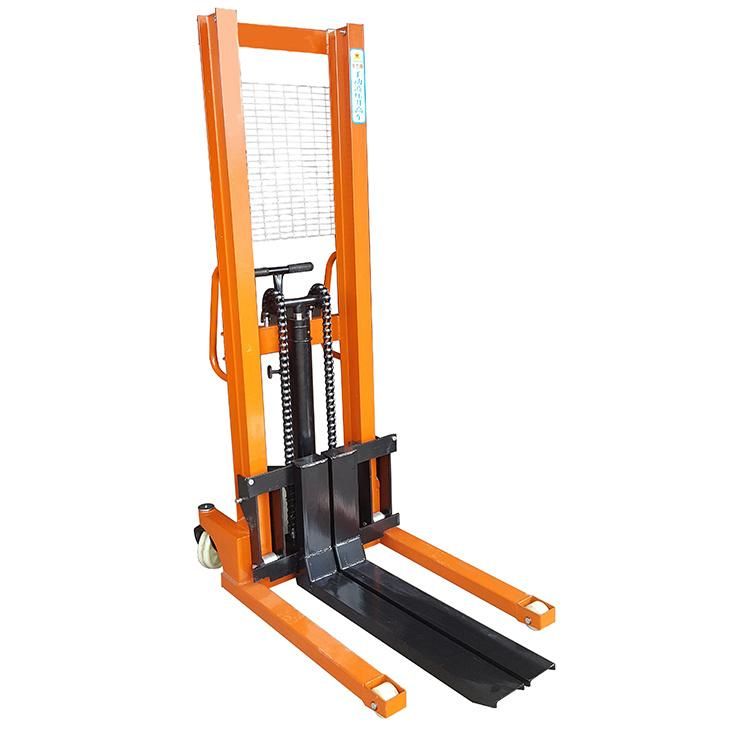

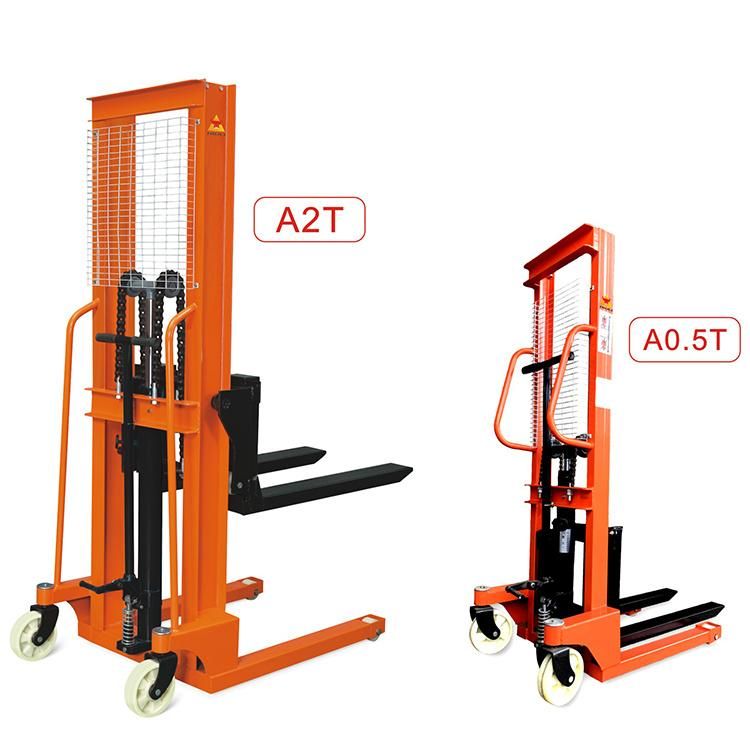

Product Description

Equipped with a constant velocity controlling value, Variation of loads do not effect forks lowering speed.
Top quality hydraulic pump and cylinder.
Compact design and strong steel construction

1. Capacity: 1000kg, 1500kg, 2000kg, 3000kg.
2. Max Lifting Height: 1600mm, 2500mm.
3. Height Of Forks: 80-100mm.
4. Fork Of Length: 900mm.
5. Adjustable Width Of The Forks: 320-700mm.
6. Self Weight: 110kg-280kg.


Model	CTY-A1.0	CTY-A2.0	CTY-A3.0
Rated lifting capacity	1000	2000	3000
Max.Lifting height(mm)	1600	1600	1600
Lowered height of forks(mm)	100	100	100
fork length	900	900
Adjustable width of forks(mm)	200-580	240-680	300-770
Lifting speed(mm/stroke)	20	14	10
Lowering speed(mm/stroke)	controllable	controllable	controllable
outer width of front legs(mm)	720	740	750
operation power of crank(kg)	24	32	40

Min.refuel volume for fuel tank(L)	1.6	2.0	3.0
Front wheel size	100x50	100x50	100x50
Rear wheel size	180x50	180x50	180x50
Overall size	2050x730x1380	2050x740x1480	2050x740x1650
self weight	115	180	280
