XCMG 15m Mobile Scissor Lift Table Xg1412HD Auto Aerial Work Platform with Ce
Xuzhou Construction Machinery Group Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：XG1412HD
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Total Mass of Machine：3100kg
- Max. Working Height：13.8m
- Rated Load：320kg
- Specification：2480 (2270) *1190*2600 (2060)mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- Production Capacity：10000
Description
Basic Info.
Model NO. XG1412HD Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Total Mass of Machine 3100kg Max. Working Height 13.8m Rated Load 320kg Specification 2480 (2270) *1190*2600 (2060)mm Trademark XCMG Origin Xuzhou, Jiangsu, China Production Capacity 10000Product Description

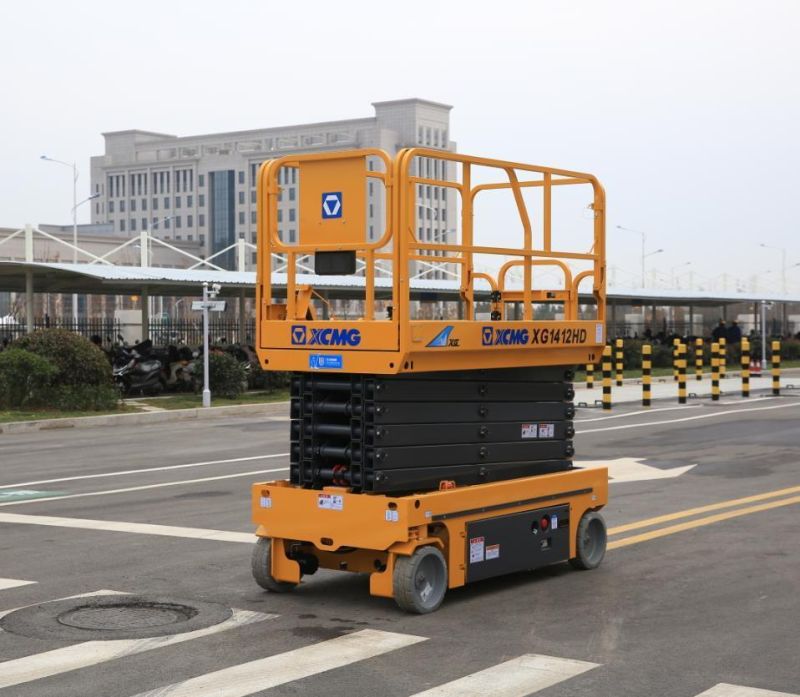

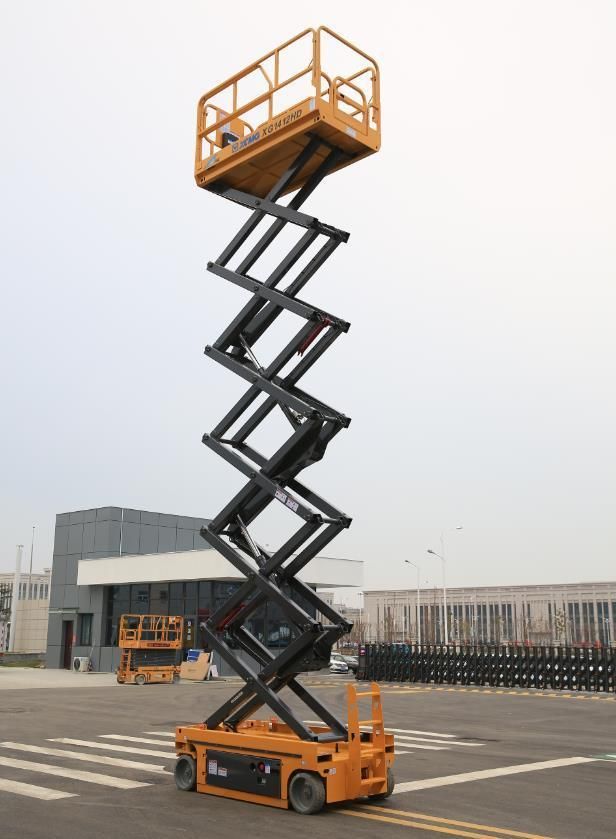

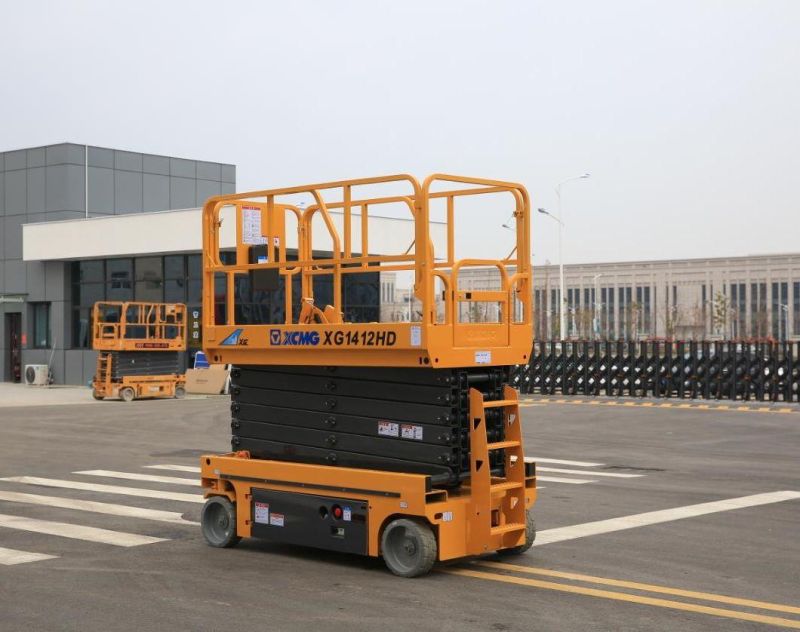

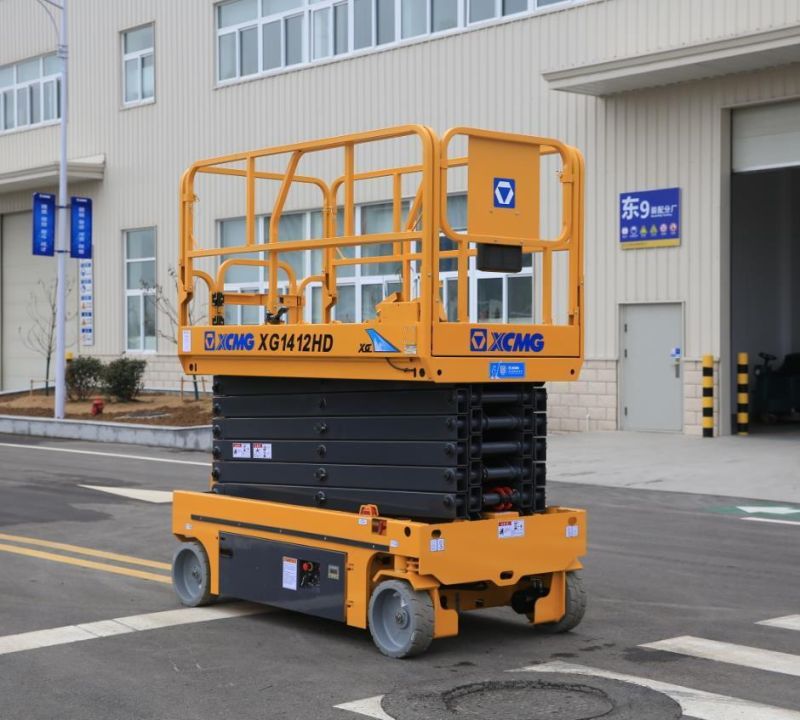

XCMG 15m Mobile Scissor Lift Table XG1412HD Auto Aerial Work Platform with CE.
New aerial work platform developed by XCMG has the work height at 11.8m, the vehicle width at 1.19m, the rated load at 320kg, max. platform length at 3.2m and max. gradeability at 25%.
This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction. In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance.

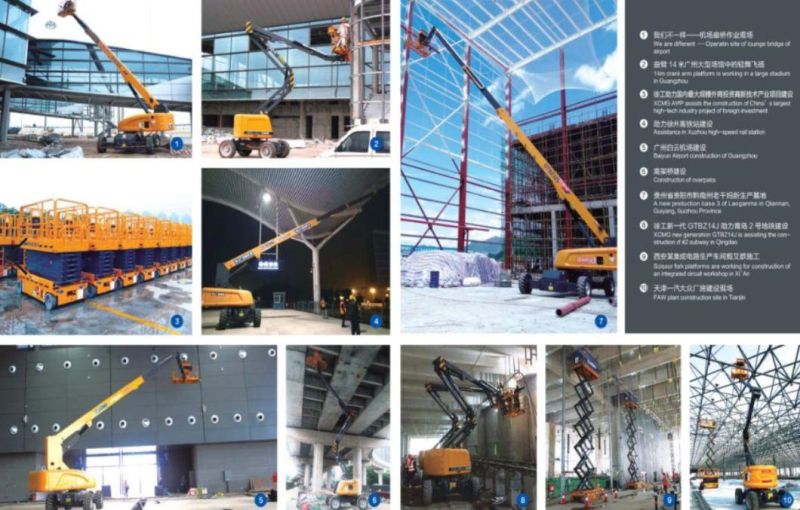

Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.
| Item | Unit | Parameter |
| Length (without ladder) | mm | 2480 (2270) |
| Width | mm | 1190 |
| Height(platform folded) | mm | 2600 (2060) |
| Wheelbase | mm | 1875 |
| Wheel track | mm | 1063 |
| Min. ground clearance (Pit protector ascending/descending) | mm | 100/20 |
| Length | mm | 2275 |
| Width | mm | 1120 |
| Height | mm | 1265 |
| Extension length of the auxiliary platform | mm | 900 |
| Horizontal distance to front shaft | mm | 950 |
| Height of centroid | mm | 680 |
| Total mass of machine | kg | 3100 |
| Max. height of platform | m | 11.8 |
| Min. height of platform | m | 1.47 |
| Max. working height | m | 13.8 |
| Min. turning radius (inner wheel/outer wheel) | m | 0/2.3 |
| Rated load | kg | 320 |
| Payload of extended platform | kg | 115 |
| Lifting time | s | 45-70 |
| Lowering time | s | 52-78 |
| Drive speed(lowered) | km/h | ≥3.9 |
| Drive speed(elevated) | km/h | ≥0.8 |
| Max. gradeability | % | 25 |
