• Model NO.：ZA14J
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Work Height：15.80m
• Platform Height-Elevated：13.80m
• Horizontal Outreach：7.70m
• up and Over Height：7.55m
• Wheelbase：2.36m
• Ground Clearance：0.42m
• Platform Capacity：300kg
• Drive Speed (Raised)：6.8km,H
• Gross Weight：7100kg
• Diesel Engine：Deutz D2.9L4
• Engine Power：35.7kw,2600rpm
• Transport Package：Nude Package
• Specification：6.57m*2.30m*2.27m
• Trademark：Zoomlion
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Main   Specs of Articulating Boom LiftsComply with   CE/ANSI/GB StandardModel ZA14JSizeWork Height15.80mPlatform Height13.80mHorizontal Outreach7.70mUp and Over Height7.55mA - Stowed Length6.57mB - Stowed Width2.30mC - Stowed Height2.27mD - Platform   Length1.83mE - Platform   Width0.76mF - Wheelbase2.36mG - Ground   Clearance0.42mPerformancePlatform Capacity300kgDrive Speed6.8km/hGradeability45%   (24°)Axles Oscillation0.1mTurning Radius (Inside)2.06mTurning Radius (Outside)4.78mSwing355°Platform Rotation±90°H-Tail Swing0Max. Working Slope5°Max. Wind Speed12.5m/sPowerDiesel EngineDeutz D2.9L4Engine Power35.7kw/2600rpmFuel Tank Capacity65LAuxiliary Power12VControl Voltage12VHydraulic System Capacity150LHydraulic Tank Capacity76LTireType315/55 D20 Foam-filled TiresWeightGross7100kgHighlights300 kg platform capacity for higher efficiencyBuilt-in multiple pressure control leveling system to enhance   stabilityPrecise load sensing system to improve overload safety   operationsIntegrated with rotary reducer to enhance rotation stabilityHostile Kits available for dusty working environmentDeadweight Lowering System for smooth operation and energy   efficiencyFeaturesStandard   FeaturesAccessories & OptionsHornPlatform work lightsAll   motion alarmAnti-collision deviceProportional   controlAC power to platformSelf-closing   entry gateFlashing   amber beaconGPS   position and tracking systemRemote   monitoring and rental management systemAuto-leveling systemEmergency stop buttonOver tilt protection systemEmergency descent systemOn-board diagnostic systemOscillating axle4.3' LED displayLoad sensing systemSwing-out engine tra

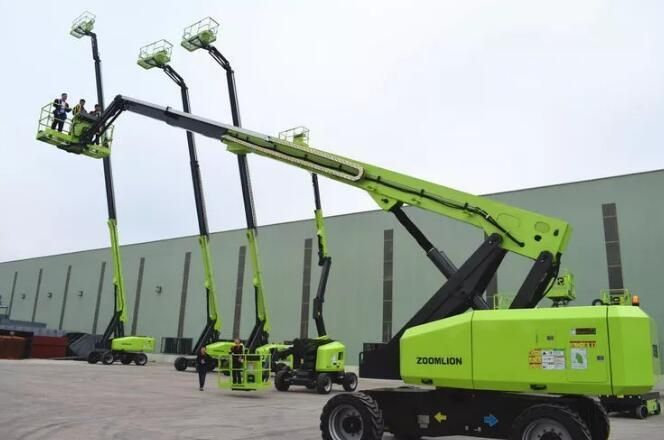

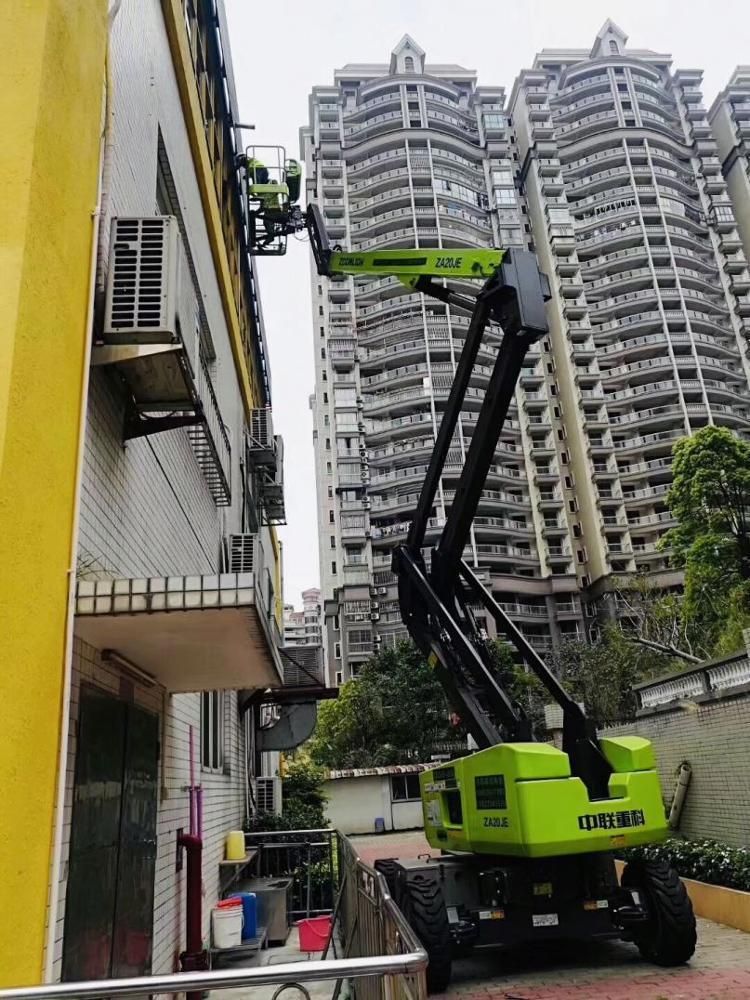

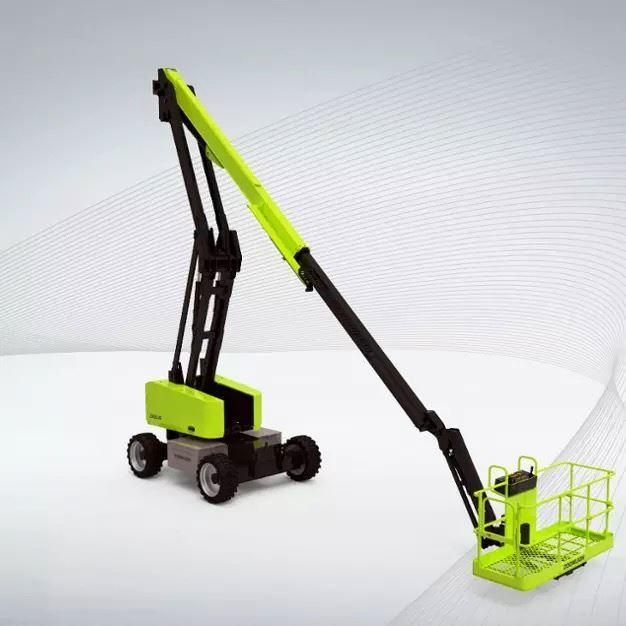

Pictures:
