• Model NO.：JCPT1823RT
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Ground Clearance：0.22m
• Wheel Base：2.86m
• Travel Speed(Stowed)：6.1km,H

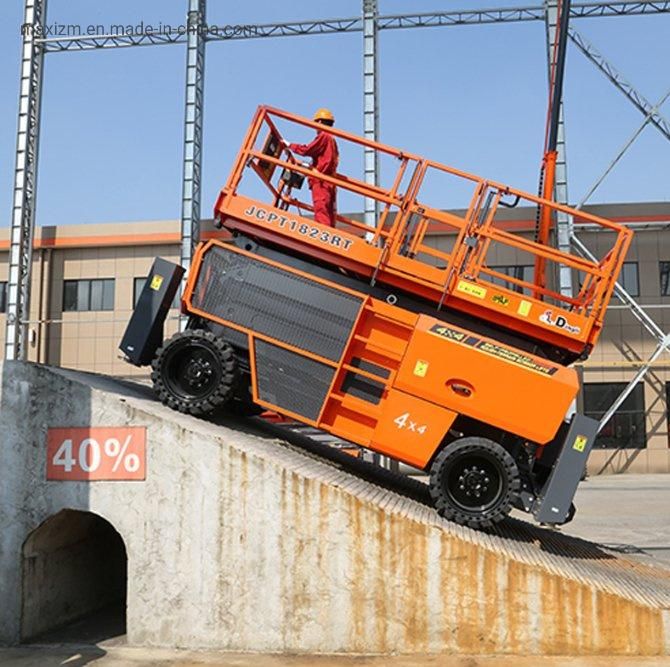

• Gradeability：40%
• Engine：Kubota
• Gross Weight：9190kg
• Transport Package：Nude Package
• Specification：4.88*2.27*3.19m
• Trademark：DINGLI
• Origin：Zhejiang, China
• HS Code：8427109000
• Production Capacity：1000units,Year

ModelJCPT1823RTJCPT1523RTMax. Working Height A18.00m15.00mMax. Platform Height B16.00m13.00mOverall Length(With/Without Outriggers) C4.88m/3.98m4.88m/3.98mOverall Width D2.27m2.27mOverall Height(Rails Up)3.19m2.98mOverall Height(Rails Down) E2.49m2.28mPlatform Size(Length×Width F)3.98m×1.83m3.98m×1.83mPlatform Extension Size G2.59m2.59mGround Clearance0.22m0.22mWheel Base H2.86m2.86mModelJCPT1823RTJCPT1523RTS.W.L680kg680kgS.W.L On Extension227kg227kgMaximum Workers Number67Turning Radius(Inside/Outside)2.35m/5.20m2.35m/5.20Travel Speed(Stowed)6.1km/h6.1km/hTravel Speed(Raised)1.1km/h1.1km/hUp/Down Speed123/74sec70/52secGradeability40%50%Maximum Working Slope2°/3°2°/3°Tyre33×12-2033×12-20 ModelJCPT1823RTJCPT1523RTEngine(Kubota V2403-M-DI)36.5kW/2600rpm36.5kW/2600rpmHydraulic Tank130L130LDiesel Tank100L100LModelJCPT1823RTJCPT1523RTGross Weight(with/without outriggers)9190kg/8670kg8200kg/7680kg
