• Model NO.：MT1200-2
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：12m
• Max Working Height：14m
• Load Capacity：200 Kg
• Platform Size：1.45*0.7m
• Lift Motor：24V 1.5kw
• Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
• Specification：1.45*0.81*1.99M
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MT1200-2 Driven Type AC Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Max Platform Height 12m Max Working Height 14m Load Capacity 200 Kg Platform Size 1.45*0.7m Lift Motor 24V 1.5kw Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.45*0.81*1.99M Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

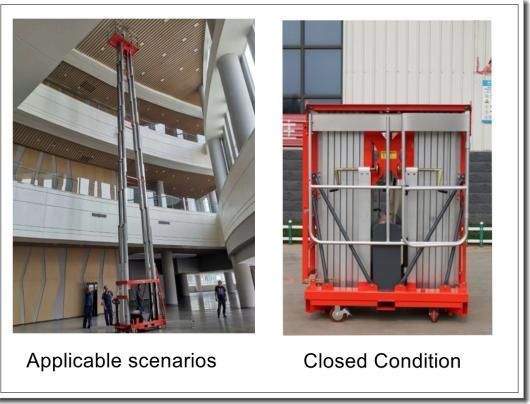

Tilt Type Mobile Aluminum Aerial Work Platform with 12m Platform Height The double masts vertical lift uses high strength aluminum section bar to produce. It has the characteristics of beautiful appearance, small size, light weight, good stability and flexible operation.
The lifting height ranges from 1.99m to 16m for different size Aluminum Aerial Work Platform and the loading capacity varies from 150Kg to 250Kg.

The double masts vertical lift mainly composed by aluminum mast, work platform, basement, control system, wheels and outriggers. The main featured parts are showing in the below.

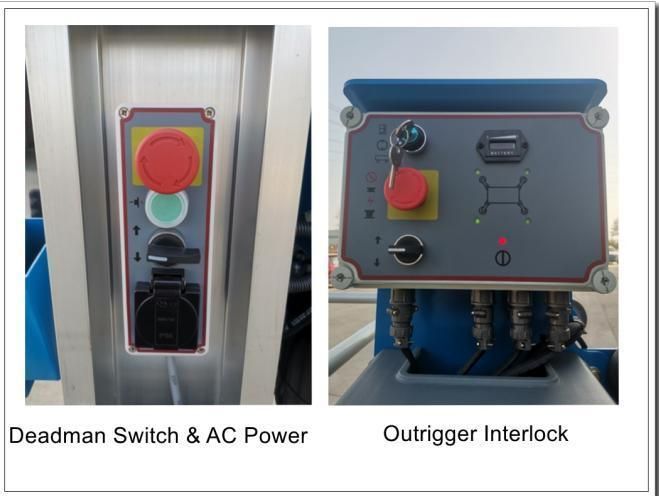

1.Outrigger Interlock2.Deadman Switch 3.AC Power on Platform4.Emergency Lowing System
5.Leveling Gauge

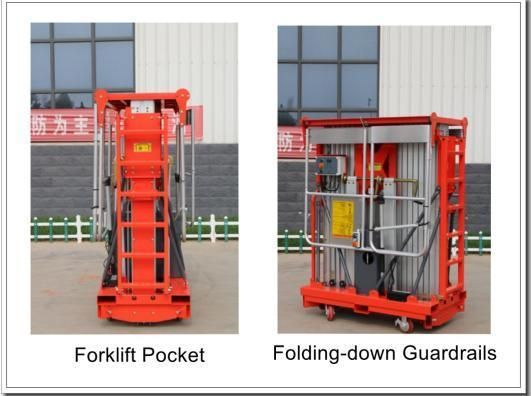

6.Forklift Pocket
7. Cylinder Holding Valve
8. Easy To Operate Up/Down On Platform And Ground
9. Double Chains Improving the Safety And Strength.

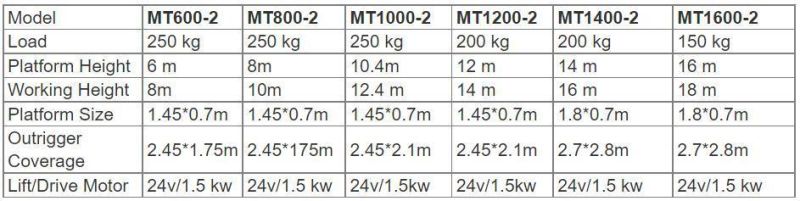

Specification
Details


Our Company
Our company, CHENLIFT (SUZHOU) MACHINERY CO., LTD. is founded in 2001 and is located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu) Our company has professional organization in manufacturing, sales and services of hydraulic lifting machinery and aerial working platform

We, Bestmax, have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa


Certificates


Factory Equipment


Client & Exhibition

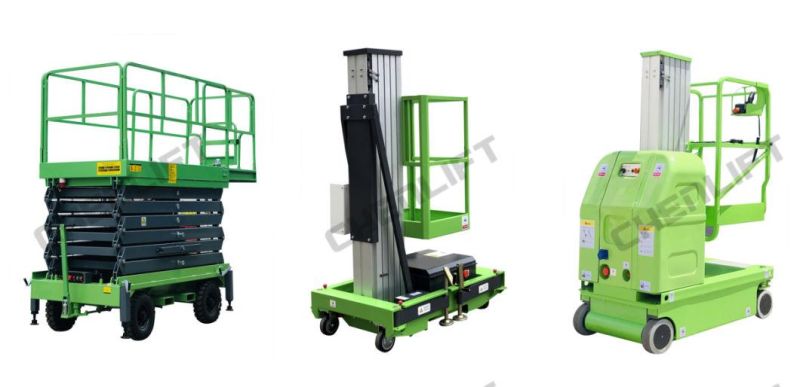

Other Related Products
