• Model NO.：MX1200S
• Platform Extension Length：0.90m
• Extension Loading：113kg
• Wheelbase：1.87m
• Power Source：4*6V,240ah
• Transport Package：PVC Film Wrapped in Pallet
• Specification：2.43*1.15*2.03m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：2000 Units Per Year

Model MX580SMX600SNMX800SNMX800SMX1000SMX1200SLoad230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatform Extension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw

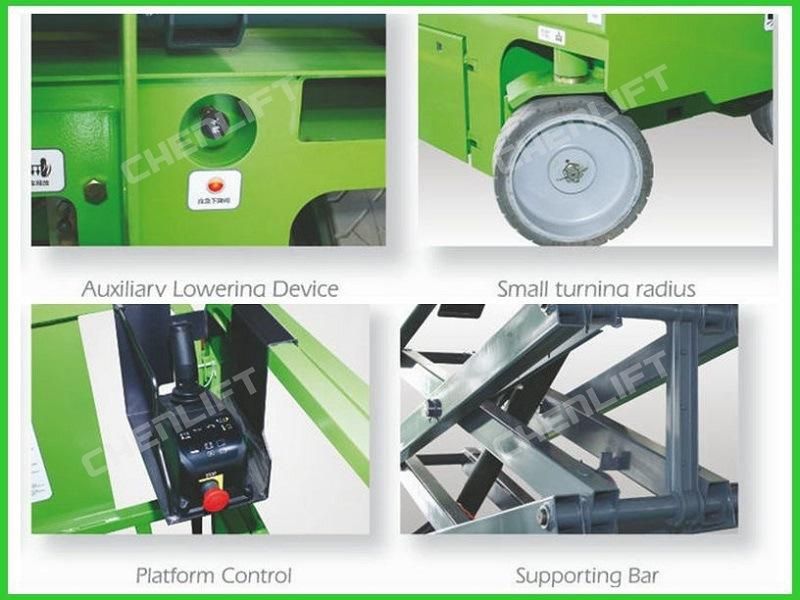

Details


Safety Precaution

• Auxiliary Lowering Devices
• Anti-burst System
• Emergency Stop Button
• Tilting Protection System
• Charging Protection System
• Automatic Pothole Protection
• Automatic Braking System
• Buzzer and Horn

Standard Configurations:

1. Proportional Control
2. Inter-lock door on the platform (spring loaded gate)
3. Extension platform
4. Hydraulic type braking system
5. Hydraulic motor driving
6. Trace-less tyre
7. 2 Wheel Driving
8. All motion alarm
9. Flashing beacon
10. Emergency stop button
11. Fault diagnose system
12. Automatic pothole protection
13. Fold-able Fence
14. 25% grad-ability
15. Maintenance support bar
16. Auxiliary Lowering
17. Hour meter
18. Battery Indicator
19. Anti-burst valve
20. Lateral Forklift pockets
21. Drivable at full height
22. Automatic charging (Over charging protection)
23. Compact Turning Radius
24. Swing out Tray
25. Anchorage point (hook)
26. Tilting level sensor with alarm
27. Toe protection
28. Battery (Trojan brand)
29. Drive speed interlock limits speed while elevated
30. Battery charging indicator
31. Lifting hook
32. Powder coating painting

Optional Configuration:

1. Working light on the platform
2. Air-tube to the platform
3. AC power to the platform
4. Overloading Sensor with alarm
5. Wireless tracking
6. Over hoisting(top limit protection auto stop device)
7. Tool box
8. Anti-collision system

Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa



Certificates


Factory Equipment


Client &Exhibition

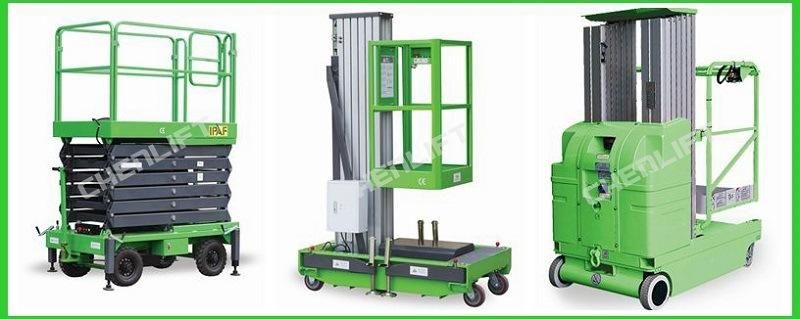

Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
