• Model NO.：JM
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：,Boat,Vessel,Shipyard,etc
• Warranty：12 Months
• Motor Type：Yzr, Yzp
• Voltage：3AC 220~480V 50,60Hz
• Rated Capacity：10-650kn
• Rope Capacity：Customized
• Pulling Speed：10m,Min or Customized
• Color：Customer Requirement
• Package：Wood Boxes
• Transport Package：Wooden Package & Container
• Specification：3950*2560*1950mm
• Trademark：NYBON
• Origin：Henan Province, China
• HS Code：84253190
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JM Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application ,Boat/Vessel,Shipyard,etc Warranty 12 Months Motor Type Yzr, Yzp Voltage 3AC 220~480V 50/60Hz Rated Capacity 10-650kn Rope Capacity Customized Pulling Speed 10m/Min or Customized Color Customer Requirement Package Wood Boxes Transport Package Wooden Package & Container Specification 3950*2560*1950mm Trademark NYBON Origin Henan Province, China HS Code 84253190 Production Capacity 100 Sets Per Month

Product Description

                                        Electric wire rope double drum winch

Description:

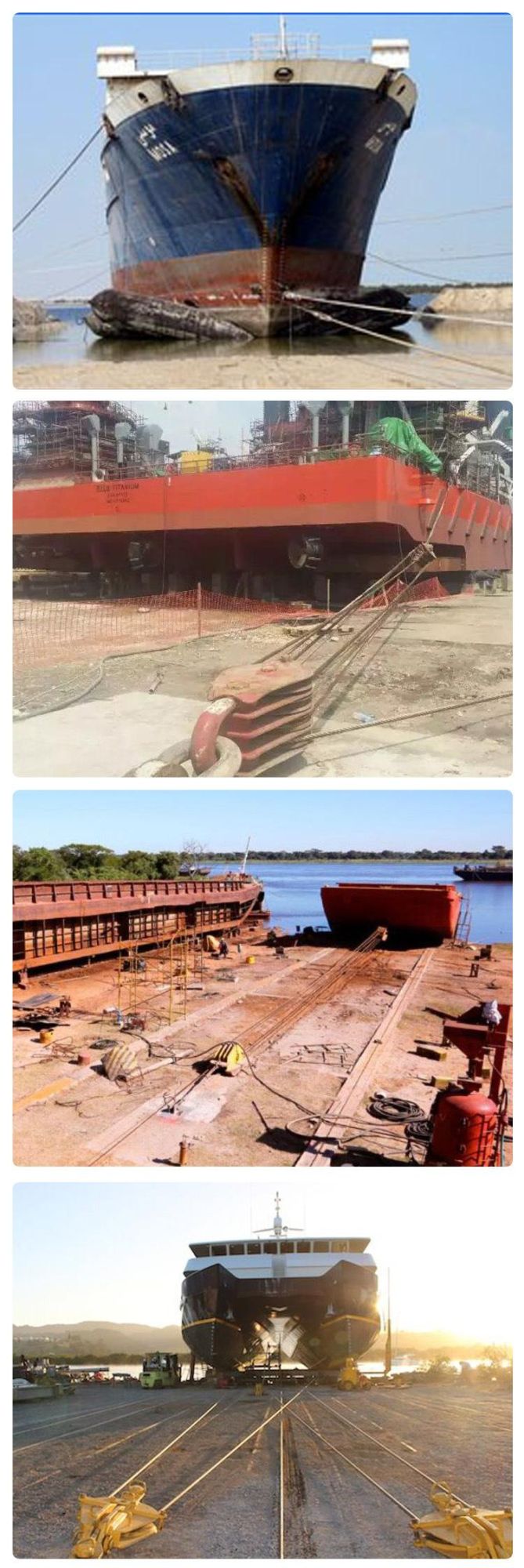

Shipyard slipway winch is used to move boats or ships in and out of the slipway onto the dock.
The slipway is mostly used when boats or ships must be carried out for maintenance and repairs. Giving the fact that this
type of activity must take place on a regular basis, slipway winches are absolutely essential in a port or a terminal where
maintenance activities are being performed.

Shipyard slipway winch has the advantages of compact structure, stable running, convenient operation, easy maintenance,
low noise level and long service life.

Shipyard slipway winch is not only in line with national GB/T25015-2010 ship-shifting winch but also in keeping with national
industry standards JGJ88-92 Elevator Safety Technical Specifications.



Design Standards:

This series winch is not only in line with national GB/T10055-1996 construction hoist safety rules but also
in keeping with national industry standards JGJ88-92 Elevator Safety Technical Specifications.

Technical Parameter:

Model	Load (KN)	Speed(m/min)	Rope capacity (m)	Rope diameter (mm)	Motor(kw)	Size (mm)	Weight(kg)
JM 10	100	8	170	Ø30	22	2090*1475*956	3000
JM10B	100	9.5	250	Ø30	22	1705*1598*985	3500
JM12.5	125	8	300	Ø34	30	2880*2200*1550	5000
JM13.5	135	0-5	290	Ø28	22	2990*2663*1650	6500
JM16	160	10	500	Ø37	37	3750*2400*1850	8800
JM20	200	10	600	Ø43	45	3950*2560*1950	9900
JM25	250	9	700	Ø48	55	4350*2800*2030	13500
JM32	320	9	700	Ø56	75	4500*2850*2100	14800
JM50	500	9	800	Ø65	90	4930*3050*2250	19500
JM65	650	10.5	3600	Ø64	160	5900*4680*3200	46000

Detailed Picture:

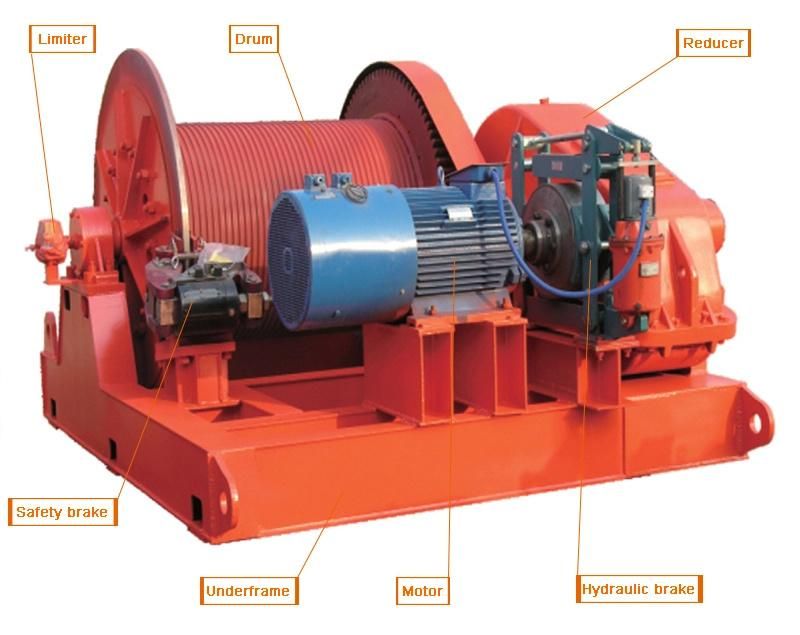

Shipyard slipway winch mainly consists of underframe, motor, reducer, double brakes, drum, wire rope and so on.



Applications :

Shipyard slipway winch that is produced and developed at NYBON are durable, made of heavy duty materials. They are
designed to last in the harshest conditions and can be configured both for water use as well as land use.









Nybon is a group of Lifting Business with Rich Experience, sercving abroad range of customers, including
 factory lifting work,manufacturing and process industries, shipyards, ports and terminals. Regardless of
your lifting needs, Nybon is committed toproviding you with lifting equipment and services that increase the
value and effectiveness of your business.

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed
requirements and actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane,
Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world.
But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley
blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
