• Model NO.：JM
• Tonnage：10T
• Reel Number：1
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Boat,Vessel, Shipyard, etc
• Motor Type：Yzr200L-6
• Voltage：380V 50Hz 3p or Customized
• Material：Q235B , Q345b
• Rope Speed：1-20m,Min
• Rope Type：Steel Wire Rope
• Advantage：Compact Structure, Durable Product
• Color：Customizable
• Transport Package：Wooden Package & Container
• Specification：2090*1475*956mm
• Trademark：NYBON
• Origin：Henan Province, China
• HS Code：84253190
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JM Tonnage 10T Reel Number 1 Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Boat/Vessel, Shipyard, etc Motor Type Yzr200L-6 Voltage 380V 50Hz 3p or Customized Material Q235B / Q345b Rope Speed 1-20m/Min Rope Type Steel Wire Rope Advantage Compact Structure, Durable Product Color Customizable Transport Package Wooden Package & Container Specification 2090*1475*956mm Trademark NYBON Origin Henan Province, China HS Code 84253190 Production Capacity 100 Sets Per Month

Product Description

Slow Speed Electric Winch 10 Ton for Slipway Boat Launching Slipway electric capstan winch -Introduction:

Wire Rope Electric Cable Pulling Winch 16ton is a kind of light-small lifting equipment that uses a winding drum to wrap
a wire rope or chain to lift or pull heavy objects.
It has the advantages of compact structure, stable running, convenient operation, easy maintenance,
low noise level and long service life.

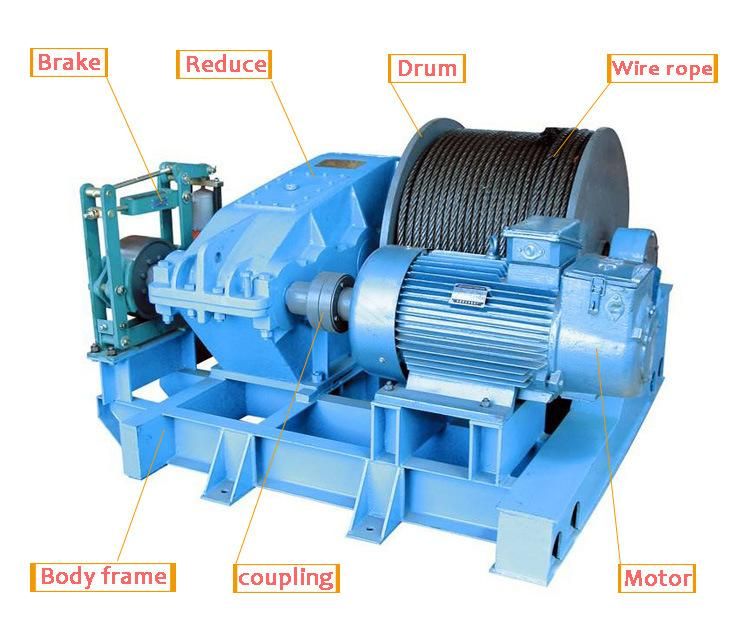

Slipway electric capstan winch-Main Structure:

Brake,reduce,winch drum,electric box,body frame,winch base.The wire rope and rope guider are availale.
All of the structures are mad of high quality materials to ensure the products quality.

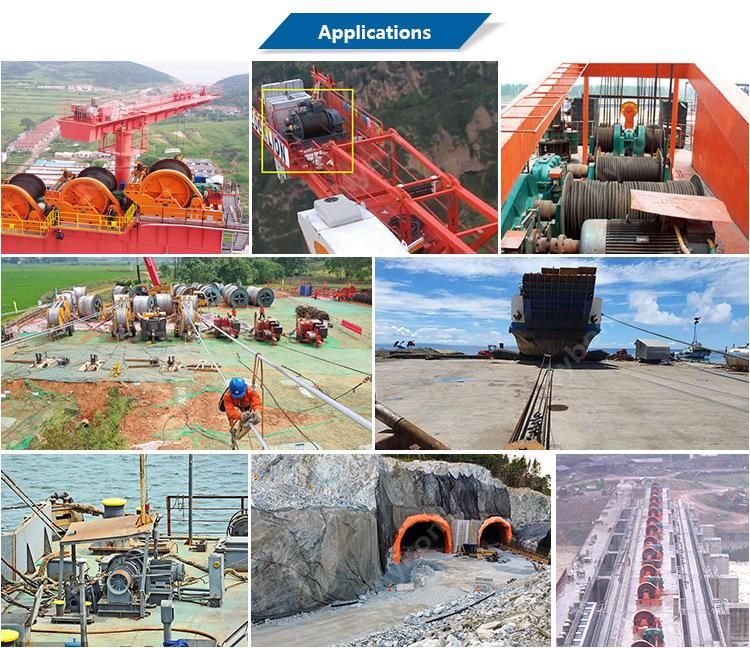

Slipway electric capstan winch-Application:

The winch can lift the object vertically, and also pull the weight hor horizontally or obliquely. It can be used alone or as a
component in machinery such as lifting, road construction and mine lifting. It is widely used due to its simple operation,
large rope winding and convenient displacement.
The winch is applied to construction company, mine, factory and other installation engineering projects company.
And also used for large and oversize concrete construction of steel installation and disassembly of mechanical equipment.

Slipway electric capstan winch-Design Standards:

This series winch is not only in line with national GB/T10055-1996 construction hoist safety rules but also in keeping with
national industry standards JGJ88-92 Elevator Safety Technical Specifications.

Model	Load (KN)	Speed(m/min)	Rope capacity (m)	Rope diameter (mm)	Motor(kw)	Size (mm)	Weight
JM 10	100	8	170	Ø30	22	2090*1475*956	3000kg
JM10B	100	9.5	250	Ø30	22	1705*1598*985	3500kg
JM12.5	125	8	300	Ø34	30	2880*2200*1550	5000kg
JM13.5	135	0-5	290	Ø28	22	2990*2663*1650	6500kg
JM16	160	10	500	Ø37	37	3750*2400*1850	8800kg
JM20	200	10	600	Ø43	45	3950*2560*1950	9900kg
JM25	250	9	700	Ø48	55	4350*2800*2030	13500kg
JM32	320	9	700	Ø56	75	4500*2850*2100	14800kg
JM50	500	9	800	Ø65	90	4930*3050*2250	19500kg
JM65	650	10.5	3600	Ø64	160	5900*4680*3200	46000kg

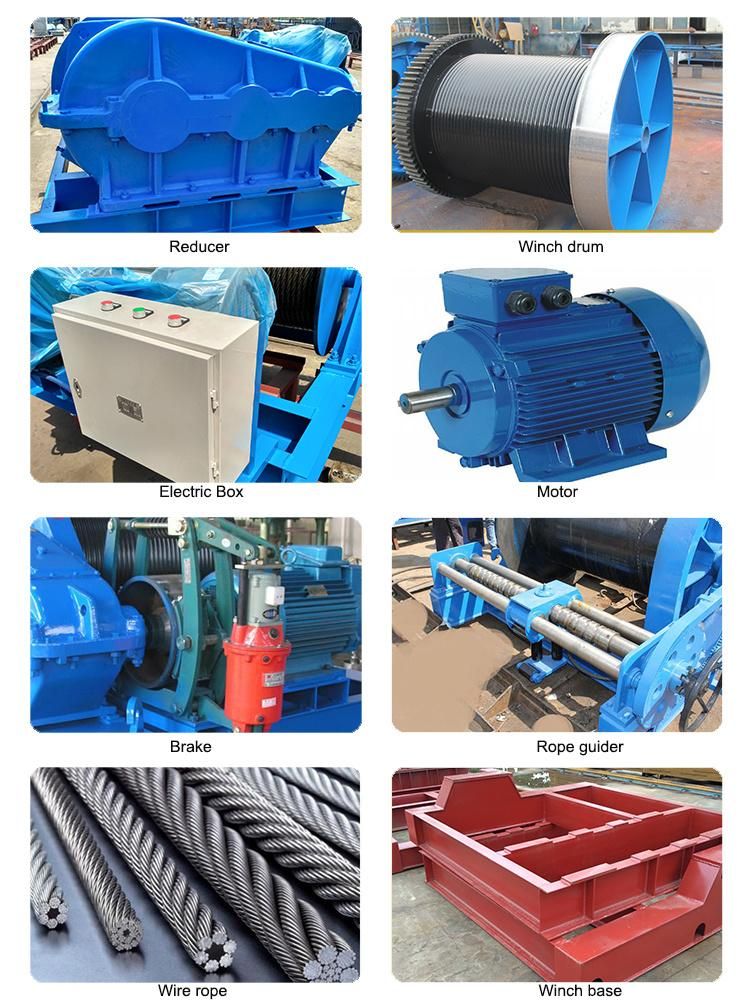

Conponents of 10Ton Slipway Electric Winch for sale

1. Q: What's your MOQ?

A: 1 Set;



2. Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;



3. Q:If I want to customize my product, what should I do?

Please contact the customer service, tell us your needs, there will be a professional technical personnel and you discuss the details and solutions.



4.Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

5. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
