• Model NO.：FP-01
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Engine：Original Kubota Diesel Engine
• Transport Package：by Container
• Specification：2880 *1530*2320mm
• Trademark：HAIQIN
• Origin：Shandong, China
• Production Capacity：8000 Units , Year

Basic Info.

Model NO. FP-01 Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Engine Original Kubota Diesel Engine Transport Package by Container Specification 2880 *1530*2320mm Trademark HAIQIN Origin Shandong, China Production Capacity 8000 Units / Year

Product Description

Features:

1, Practicality: Starting from the reality of nursery workers and farms, it can meet different working conditions.
2, It can with a Kubota diesel engine or Electric battery .
3, Selection of water pumps and other supporting equipment, can with Pesticide spraying, irrigation, water spraying and other operations.
4, Rear towing configuration, can tow 2 tons.More usefull in a farm or garden.

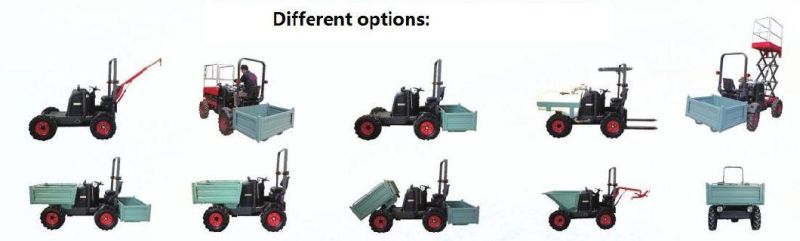

5, According to different conditions, can attach different buckets, load capacity reach 1.5-2.2 ton
6, Import Electrical control system, make the machine more stable for working .
7, Differential + differential lock, better adapted to muddy roads.

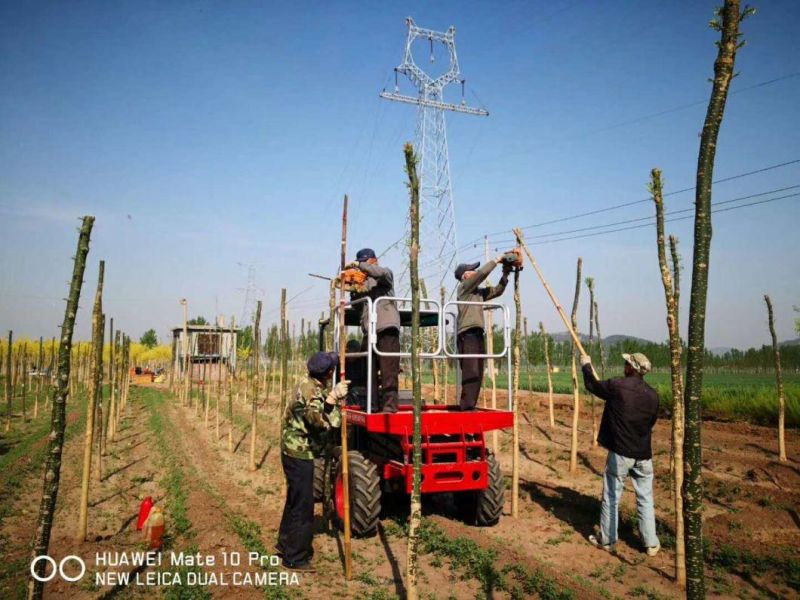

8,Operators can control the height of lifting platform and flexibly adapt to different operating heights.

Specifications :

1,Size :2880 *1530*2320mm
2, Engine: Kubota D722-E3B
3,Power:14.9kw
4, Weight:950kg
5, Speed: 25-28km/h
6,Brake: Four wheel hydraulic disc brake
6, Drive model: Four wheel drive
7, Turning radius: 3500mm
8, Gear: 3 forward, 1 backward
9, Min ground clearance : 200mm
10, Loading capacity : Front 1500kg ; Rear 400kg
