• Model NO.：MK1100
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Platform Height：11m
• Working Height：13 M
• Loading Capacity：500kg
• Motor Power：2.2kw
• Platform Size：2.10*1.15m
• Weight：1380kg
• Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
• Specification：2.25*1.32*0.91m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MK1100 Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Platform Height 11m Working Height 13 M Loading Capacity 500kg Motor Power 2.2kw Platform Size 2.10*1.15m Weight 1380kg Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 2.25*1.32*0.91m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

Manual Pushing Scissor Lift Product Description
Manual Pushing Scissor Lift is a scissor structure man lift for aerial work which can be towed by man power.
It is for one or two persons aerial working purpose.
The maximum platform height is 3m, 6m, 7.5m, 9m, 11m, 12m, 14m, 16m.
And the maximum loading capacity is 300Kg, 500Kg, 1000Kg.
The mechanical structure make the platform stability, wide operating and high loading capacity.
Normal scissor lift lifting power is AC power, DC and both AC&DC power are also available for option.

Scissor lift platform is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for workers working on the platform with the guardrail. Besides the AC power, you also can add motorized device for assist walking.

Application for Scissor Lift
Scissor lift platform can be used in the factory, warehouse, public places, stations and so on.
It provides you a good choice for aerial working.

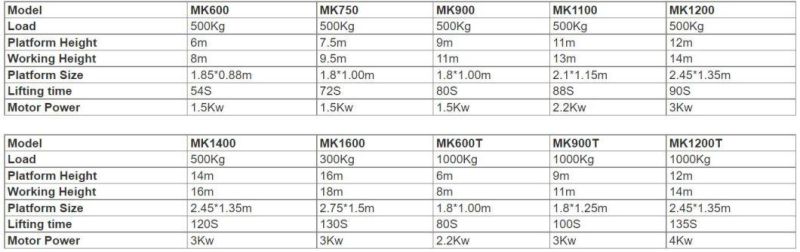

Model List
 Standard Configuration for Manual Pushing Around Scissor Lift

1. AC power: 220V 50Hz/60Hz, single phase, or 380V 50Hz/60Hz, three phases
2. Rain-proof electric cabinet
3. Beacon light
4. Inflated Tyre
5. Forklift slot
6. Towing hook
7. Chinese domestic brand hydraulic power pack
8. Pressure gauge
9. Auxiliary release valve
10. Level gauge
11. Emergency stop button both on platform and ground
12. Key lock power switch
13. Lockable stabilizer
14. Anti-skid floor on platform with removable handrails
15. Toe protection boards on the platform
16. Operation voltage at 24V
17. Ladders for access to the stowed platform (Ladder for easy accessibility)
18. Limit switch provided for top motor shut off
19. Removable control box on platform
20. Interlock doors on platform
21. Detachable/Foldable Fence
22. Powder coating painting
23. Spring mounted handles
24. Nylon bush assembled in between each scissor
25. Short Circuit and leakage protection system

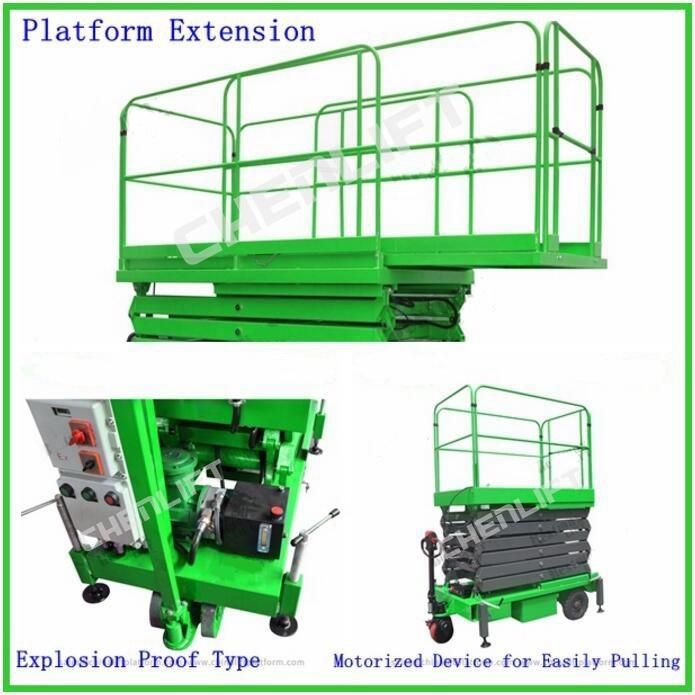

 Optional Configuration for Manual Pushing Around Scissor Lift

1. Platform extension
2. Overloading protection
3. DC power supply
4. Battery Indicator for DC power
5. Hour meter for DC power
6. AC&DC power supply
7. Motorized device for easily pulling
8. Horn available for motorized device
9. Explosion proof type
10. Maintenance supporting bar
11. Solid Tyre
12. Overseas brand hydraulic power pack
13. Outrigger sensor
14. Horn on the platform
15. AC power to the platform
16. Platform working light
17. Anti-burst valve on cylinder

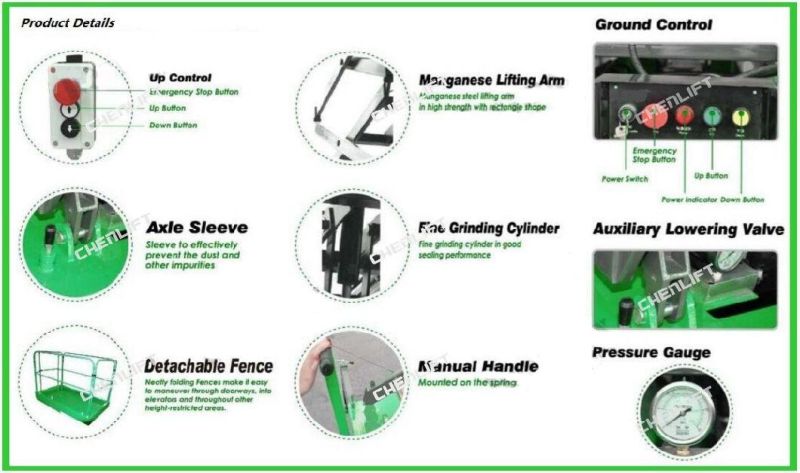

Main Features
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

Safety Precautions
1. The operation voltage on the platform is 24V
2. Emergency stop button on the paltform and ground
3. Auxiliary platform lowering
4. Telescopic legs on the chassis
5. Hose burst valve safety
6. Rain-proof design electirc cabinet
7. Fence on the platform
