• Model NO.：DGJ-30
• Condition：New
• Power：380V,220V
• Max Lifting Tons：30t
• Max Working Stroke：670mm
• Using Way：Pit Use
• Transport Package：Export Plywood Case
• Specification：ISO9001
• Trademark：Haolida
• Origin：Shandong, China
• HS Code：8425429000
• Production Capacity：200sets Per Year

Basic Info.

Model NO. DGJ-30 Condition New Power 380V/220V Max Lifting Tons 30t Max Working Stroke 670mm Using Way Pit Use Transport Package Export Plywood Case Specification ISO9001 Trademark Haolida Origin Shandong, China HS Code 8425429000 Production Capacity 200sets Per Year

Product Description

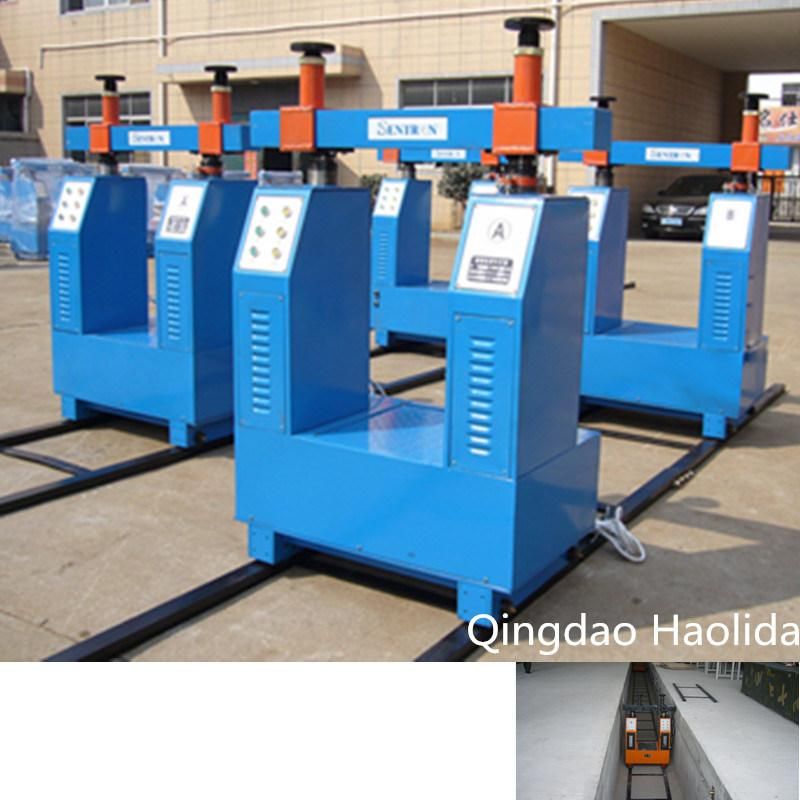

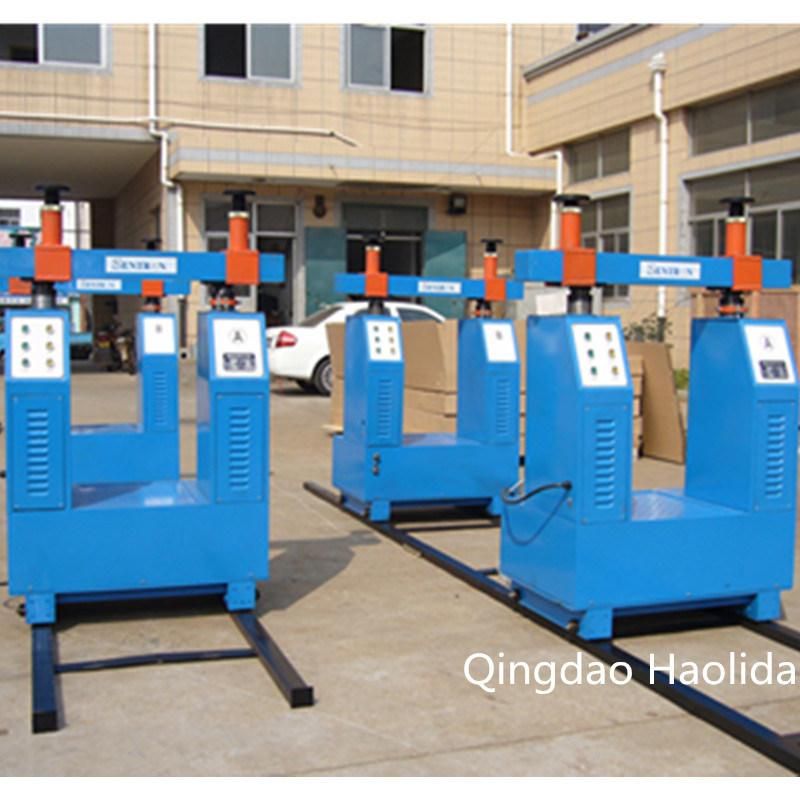

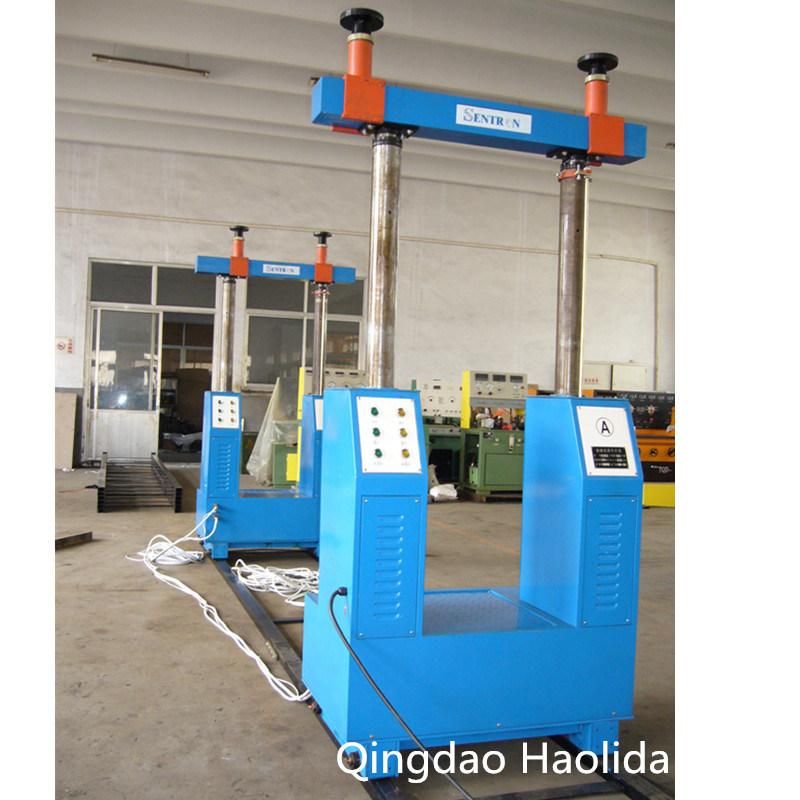

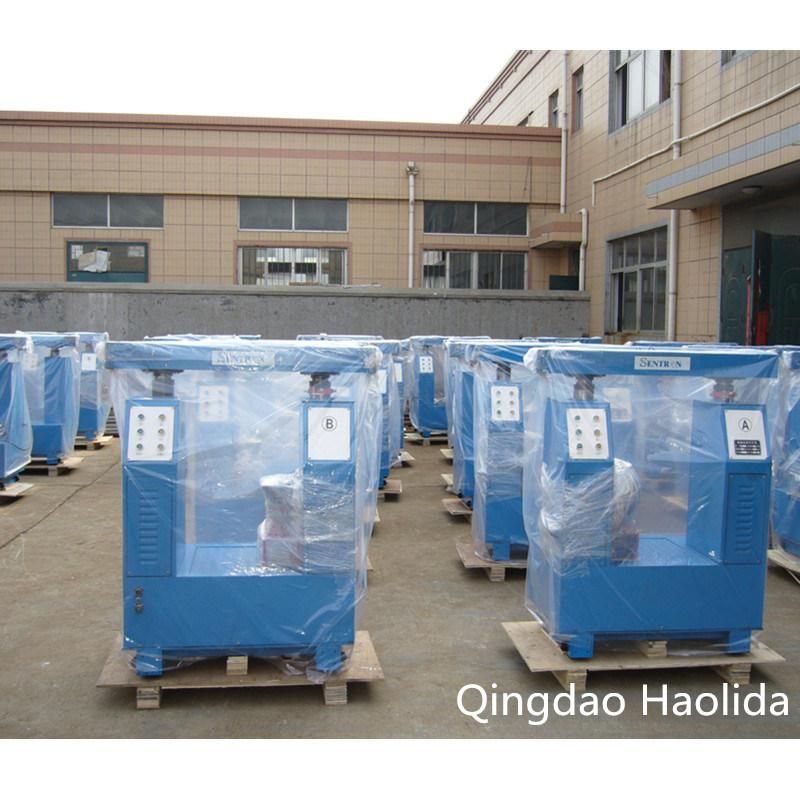

Pit lift for bus and truck
1.Function Introductio
DGJ mdoel pit lift is fit for hoisting operation for large and medium scale loading automobiles and vehicles of all kinds when they needs maintenance.
It is convenient and safe as well as reliable to use this equipment.
Two sets of equipments could be combined used, so it is available to operate any one equipment while the other equipment can rise and fall separately or two equipments rise and fall at the same time.
    The pit lift consists of motor, worm wheel box gear speed-shift structure, hoisting beam rising system and mobile enhancing salver, main body, shell, track and electric control system .

2.Technical Parameter
a.Maximum hoisting force: 300KN(30T)
b.Maximum hoisting height: 800mm-1080mm
using single upper beam: 800mm;
installing mobile bracket: 1080mm
c.Maximum hoisting width: 960mm
d.Vertical supporting-point range: 1600~7000mm
e.Maximum working journey of the jack: 670mm
f.Motor Power: 2.2KW

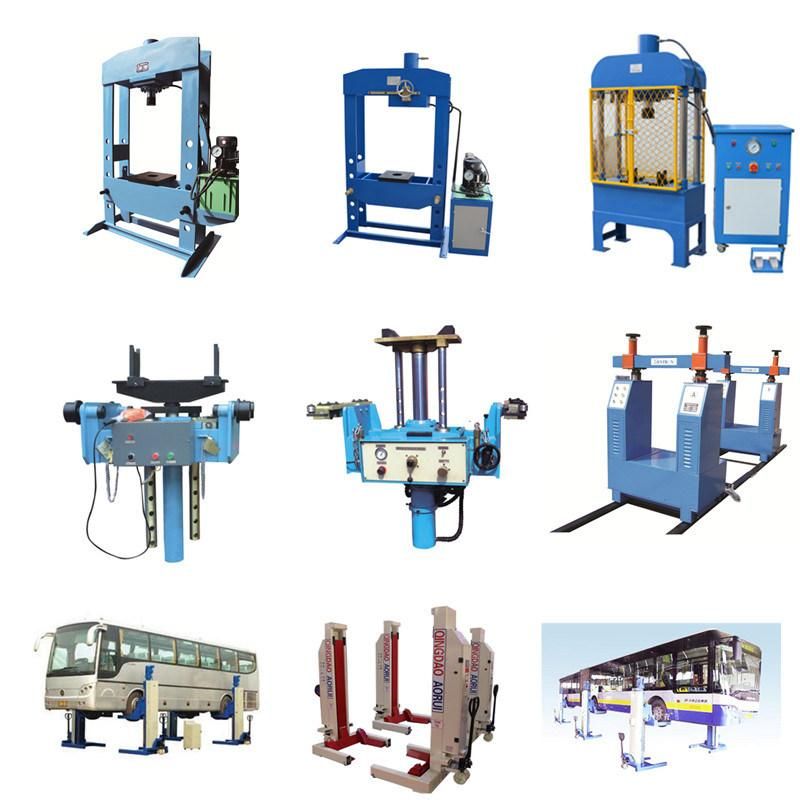

other similar pit lift:
