• Model NO.：DJS-2
• Condition：New
• Max Lifting Tons：20t
• Max Working Stroke：280mm
• Air Source Pressure：0.7-1.0MPa
• Using Way：Pit Use
• Lifting Speed：80mm
• Transport Package：Export Plywood Case
• Specification：ISO9001
• Trademark：Haolida
• Origin：Shandong, China
• HS Code：8425429000
• Production Capacity：200sets Per Year

Basic Info.

Model NO. DJS-2 Condition New Max Lifting Tons 20t Max Working Stroke 280mm Air Source Pressure 0.7-1.0MPa Using Way Pit Use Lifting Speed 80mm Transport Package Export Plywood Case Specification ISO9001 Trademark Haolida Origin Shandong, China HS Code 8425429000 Production Capacity 200sets Per Year

Product Description

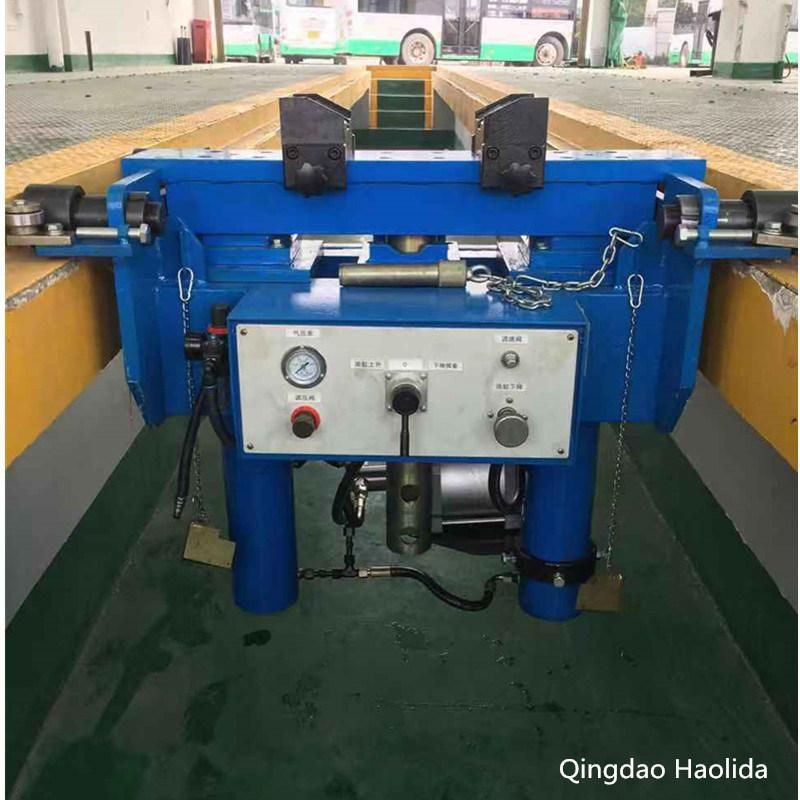

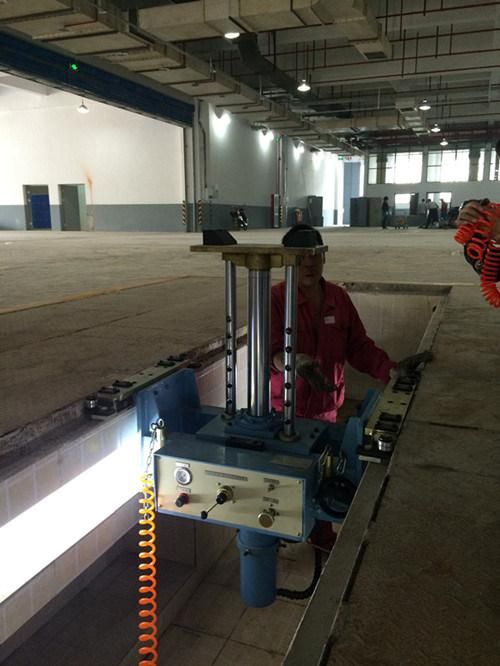

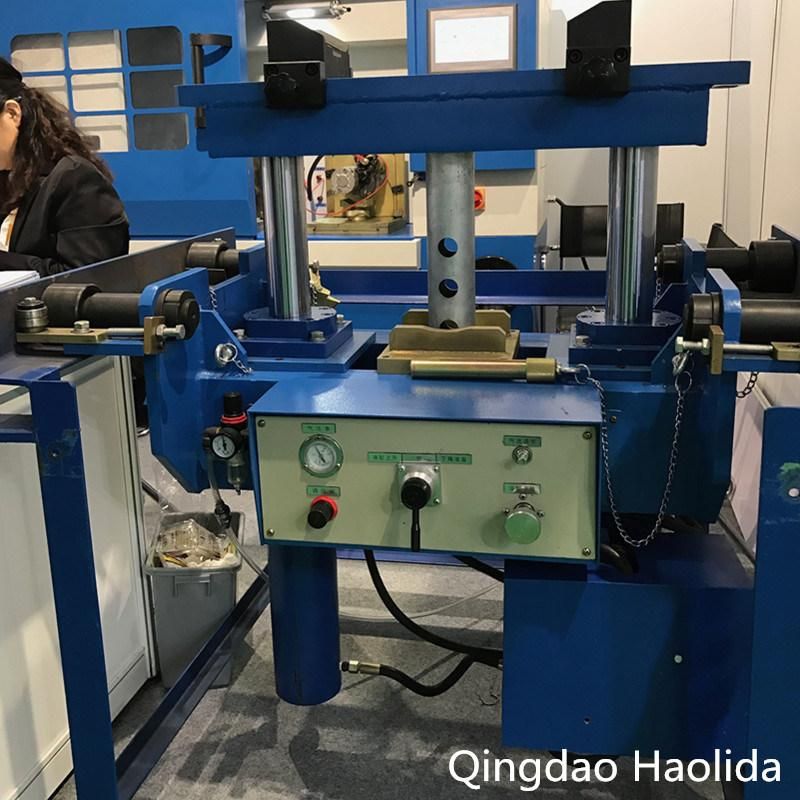

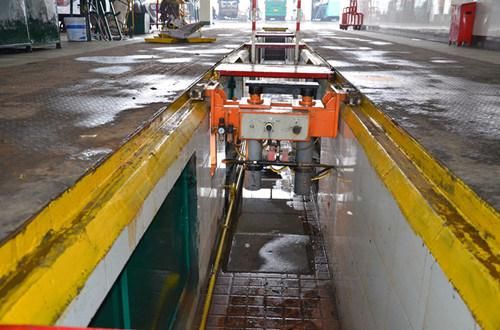

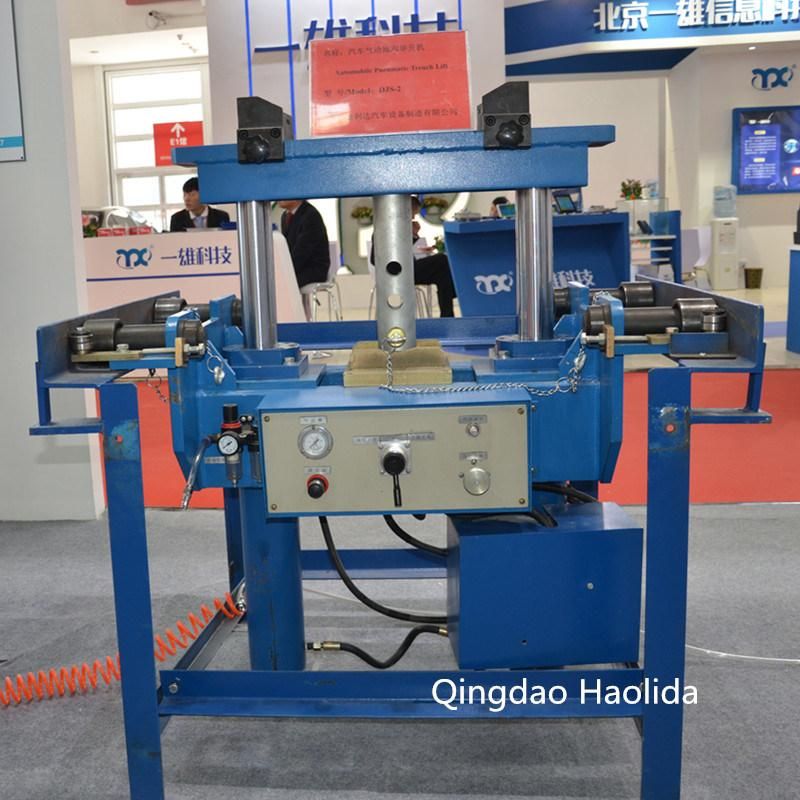

                               Automobile Pneumatic Pit Lift

1.Function Introduction
This pit lift a technical automobile lift, suspension on the trench.
It adopts air-driven hydraulic pump, taking compressed air as power, pneumatic and hydraulic exchange. It is safe to operate and with huge lifting force.
It can also choose electrical hydraulic as power.
It can be used singly or 2 units joint together. It can be ordered according to the trench size.
2.Technical parameter

Max lifting weight: 200KN (20T)

Max stroke of oil cylinder: 280mm

Max lifting height after connecting joint lever: 480mm

Air pressure: 0.7-1.0Mpa

Length of upper supporter: 400mm

Speed: 80mm/min

Overalldimension(LxWxH): 950x700x620mm
