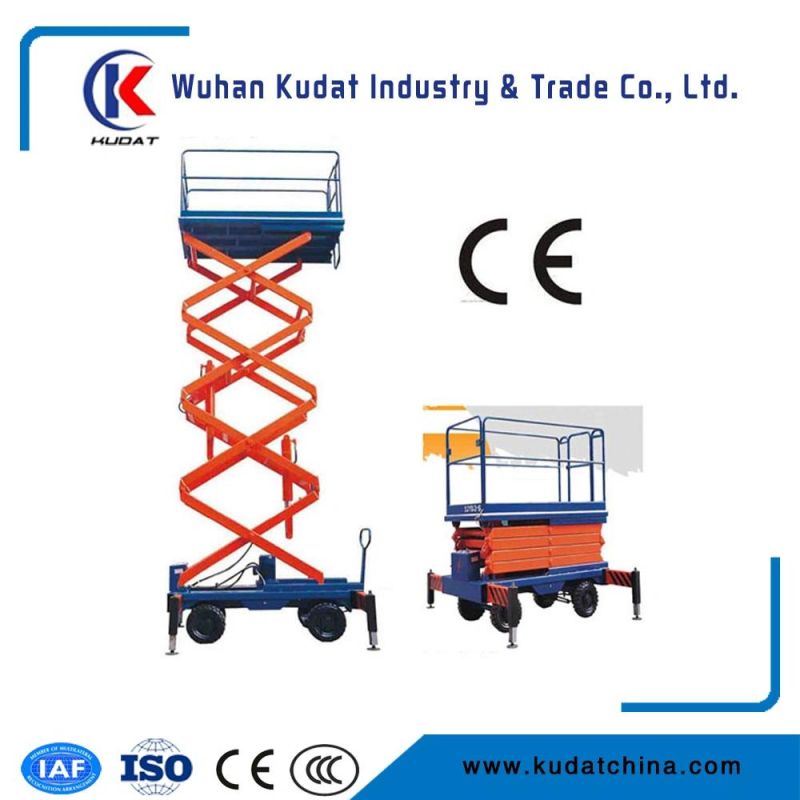

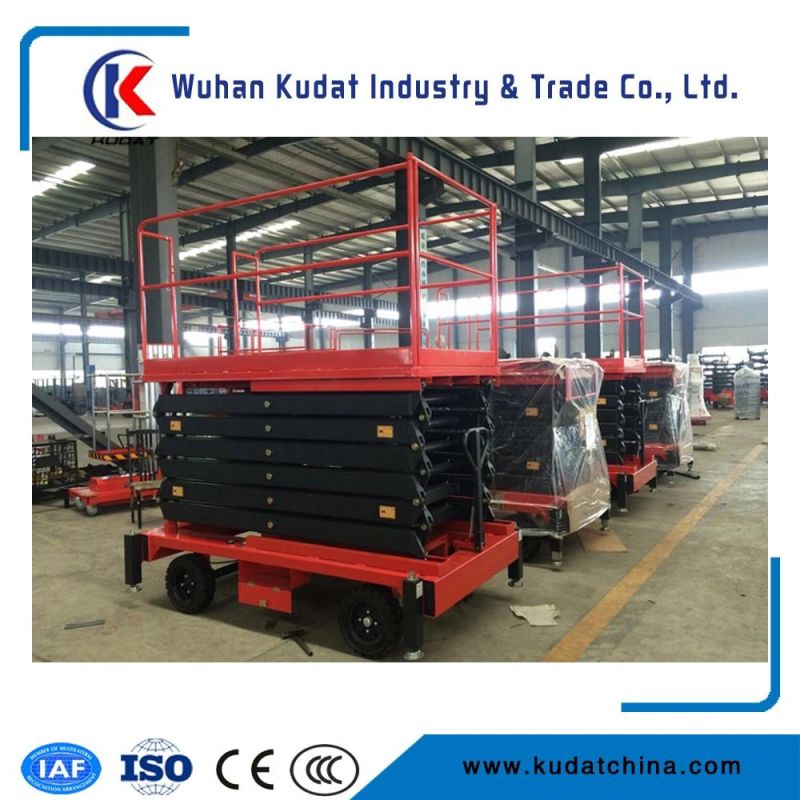

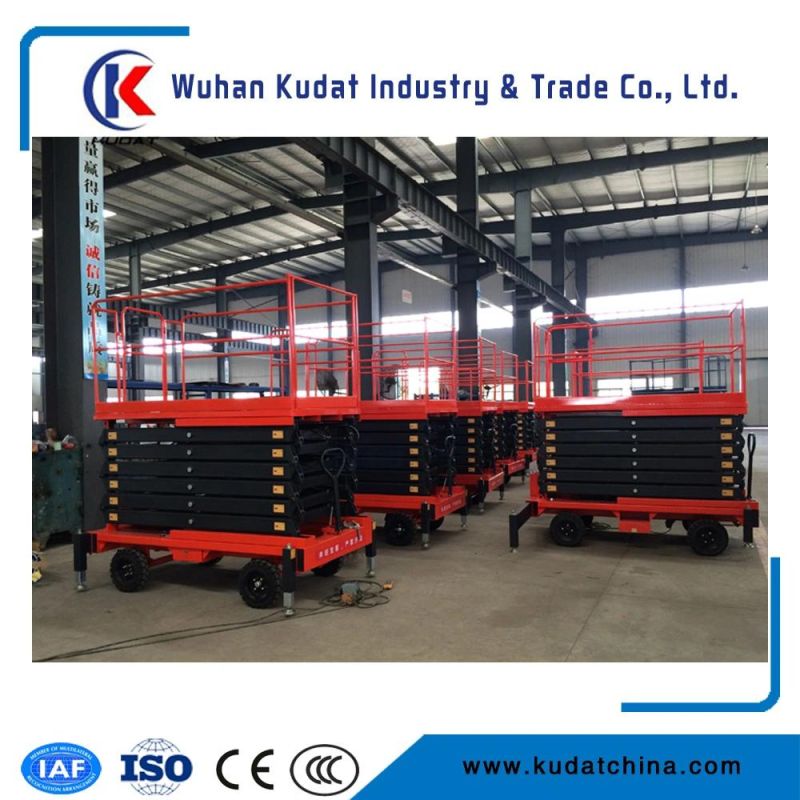

14m Electric/Diesel Motor Driven Self Propelled Scissor Lift
Wuhan Kudat Industry & Trade Co., Ltd.- Application：Warehouse Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Light Level
- Moves：Self-propelled
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Feature：Aerial Work Platform
- Certification：CE, ISO 9001
- Structure：Boom Crane
- Installation：Tyre Crane
- Type of Work：Light Level
- Max. Platform Height：10m
- Lift Rated Capacity：320kg
- Platform Size：2260×1130mm
- Transport Package：Bulk
- Specification：SGS
- Trademark：KUDAT
- Origin：China
- HS Code：8428909090
- Production Capacity：500PCS,Month
Description
Basic Info.
Feature Aerial Work Platform Certification CE, ISO 9001 Structure Boom Crane Installation Tyre Crane Type of Work Light Level Max. Platform Height 10m Lift Rated Capacity 320kg Platform Size 2260×1130mm Transport Package Bulk Specification SGS Trademark KUDAT Origin China HS Code 8428909090 Production Capacity 500PCS/MonthProduct Description

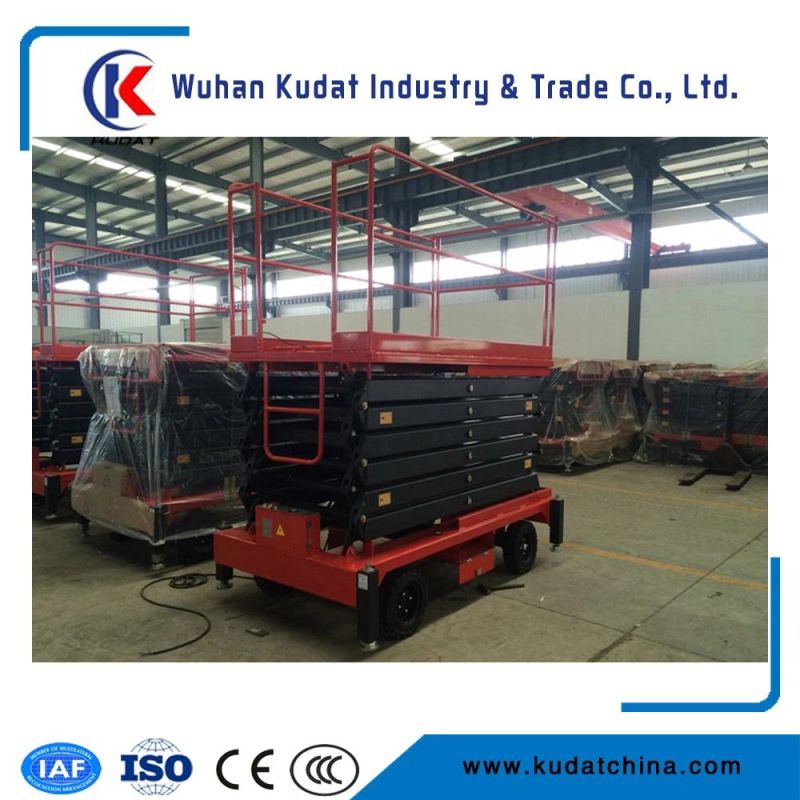

10m Electric Motor Driven Self Propelled Scissor Lift PlatformProduct Description:
1.Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving method
The chargeable battery provides the power to move and steer around.
3. Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.
4. Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
| 1. | Platform height maximum | 9.9m |
| 2. | Working height, maximum | 11.9m |
| 3. | Maximum load capacity | 320kgs |
| 4. | Length(stowed) | 2.485m |
| 5. | Width | 1.15m |
| 6. | Height(stowed) | 2.465m |
| 7. | Height(Guardrail fold stowed) | 2.01m |
| 8. | Platform height minimun | 1.324m |
| 9. | Platform measurement | 2.26*1.13m |
| 10. | Length extension deck | 0.9m |
| 11. | Ground Clearance-center | 100/20mm |
| 12. | Turning radius Minimum | 0/2.2m |
| 13. | Travel Speed(stowed) | 3.2km/h |
| 14. | Travel Speed(raised) | 0.8km/h |
| 15. | Maximum Allowable working Angle | 2°/3° |
| 16. | Grade ability | 14°(25%) |
| 17. | Tire | Φ381*127mm |
| 18. | Weight | 2450kgs |
| 19. | Lift Motor | 24/4.5V/KW |
| 20. | Battery | 4*12/150V/AH |
| 21. | Charger | 24/20-30V/A |
