• Feature：Boom Lift
• Certification：CE, ISO 9001
• Structure：Boom Lift
• Installation：Boom Lift
• Type of Work：Boom Lift
• Max Working Height：58m
• Max Platform Height：56m
• Horizontal Reach：36m
• Lift Capacity：350kgs
• Jib Rotation：160
• Turntable Swing：360
• Slowed Travel Speed：4.4km,H
• Power：100HP
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100units,Month

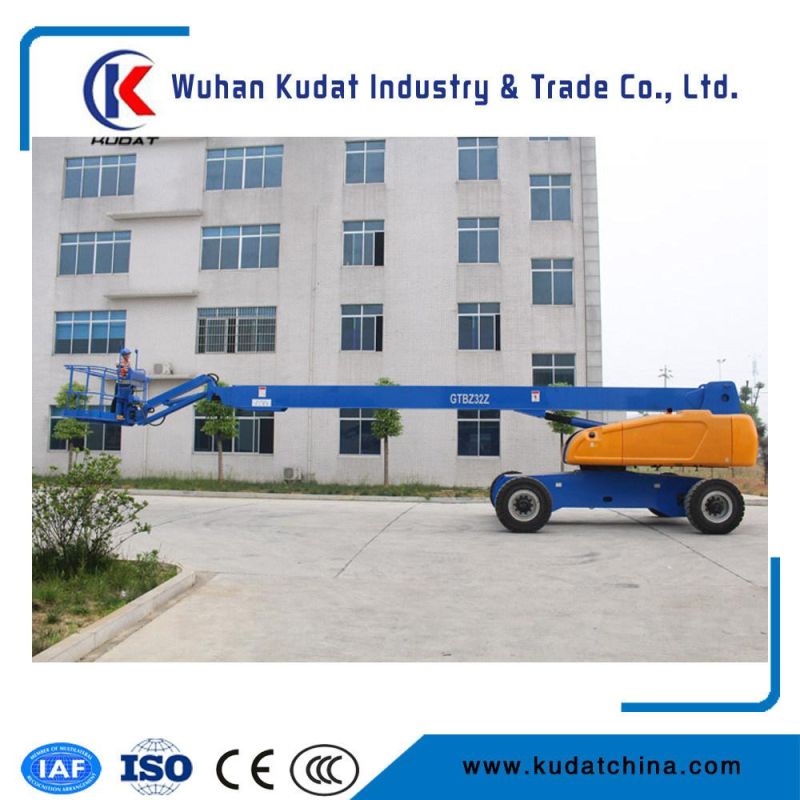

MODEL                                                   GTBZ32MEASUREMENTS                                     Metric                   US                       Working height maximum *33.7m111ftPlatform height maximum32m105ftHorizontal reach maximum **24.4m80ftBelow ground reach4.51m15ftAPlatform length-8ft model0.91m3ftPlatform length-6ft model0.76m2ft6inBPlatform width-8ft model2.44m8ftPlatform width -6ft model1.83m6ftCHeight-stowed3.08m10ftDLength-stowed14.02m46ftEWidth -axle retracted2.49m8ftWidth -axle extended3.35m11ftFWheelbase3.66m12ftGGround clearance-center0.43m1ft5inPRODUCTIVITYLift capacity (restricted)480kg1056lbsLift capacity (non-restricted)340kg748lbsPlatform rotation160°Jib rotation135°Turntable Swing360°continuousTurntable tailswing -axle retracted1.82m6ftTurntable tailswing -axle extended1.38m5ftTravel speed -stowed4.4km/h2.73mphTravel speed -raised or extended1.1km/h0.68mphGradeability -stowed (4WD/2WD)42%/30%Turning radius                             inside
Turning radius - axle retracted              outside4.14m13ft7in6.56m22ftControls24V DC ProportionalSolid tires12.00-20/8.5POWER                                                                                               Power sourceLovol 1004-4 78 hp (58kw)
Perkins 400 76 hp (56kw)
Cummins B3.3 75 HP (56kw)Auxiliary power unit24V DCHydraulic tank capacity265LFuel tank capacity150LWEIGHT ***                                                                                       2WD18660kg41140lbs4WD18740kg41310lbsSTANDARDS COMPLIANCE                   EN280,JG/T5101,Q/ADZV001-2008
