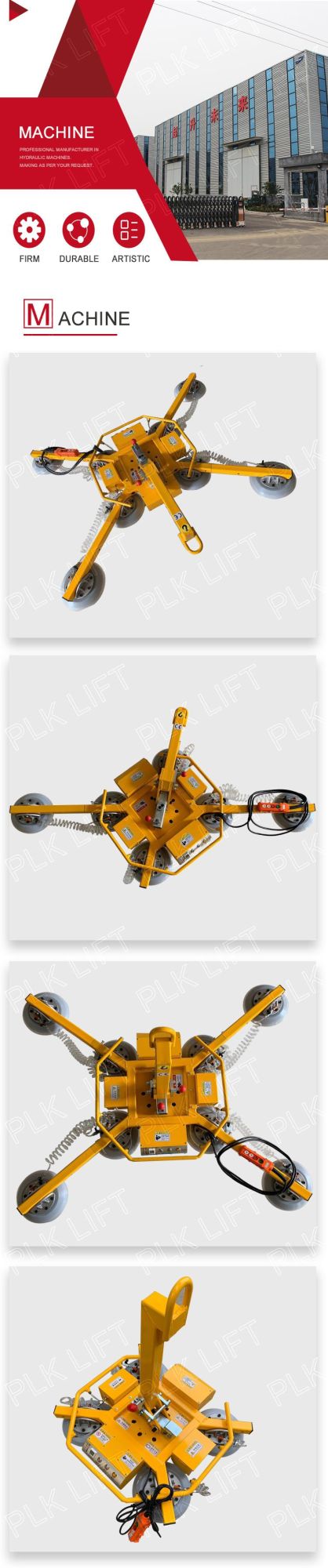

400kg Safe Load Glass Suction Cup Vacuum Glass Lifter
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Single Cup Lifting Capacity：100kg
- Charger：AC220,110
- Extension Bar Length：590mm
- Tilting：90 Degree Manual
Base Info
- Model NO.：GL-SC
- Color：Yellow
- Cap Qty：4, 6, 8
- Power Supply：Battery
- Lifting Method：Vacuum
- Control：Wire Controller
- OEM：Accepted
- Coating：Powder Spray
- Usage：Glass Installing
- MOQ：1 Set
- Package：Plywood Box
- Driven Type：DC
- Transport Package：Wooden Box
- Specification：400kg,600kg,800kg,1000kg
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 Sets,Month
Description
360°manual rotateTilting / 90° manual Volte V DC12 Charger V AC220/110 Weight kg 70 90 100 110 120 Sucker Frame Size mm 850*750*300 1800*900*300 1760*1460*300 1900*1600*300 1900*1600*300 Extension Bar Length mm 500 Control System / Integrated Control Cabinet and Wired Remote Control Overall Size after packing by wooden box mm 1230*910*390 Gross Weight after packing by wooden box kg 97 110 123 150 163
Features & Advantages:
1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
