• Model NO.：TBL
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Lift Drive：AC,DC,Hydraulic Diesel Ect
• Turning Degree：360degree
• Loading Capacity：Customization
• Surface Treatment：Plastic Spraying
• Color：Red Yellow Blue Customized
• Quality Assured：CE ISO9001 Saco FTA SGS Iam Ect
• Input Voltage：110V 220V 240V 380V, 400V, Customized
• Safety Precaution 1：Aluminum Safety Sensor
• Safety Precaution 2：Anti Explosion Valve
• Safety Precaution 3：Anti Explosion Valve
• Transport Package：Full Container
• Specification：5500*2200*2200
• Trademark：PLK
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Per Month

Basic Info.

Model NO. TBL Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Lift Drive AC/DC/Hydraulic Diesel Ect Turning Degree 360degree Loading Capacity Customization Surface Treatment Plastic Spraying Color Red Yellow Blue Customized Quality Assured CE ISO9001 Saco FTA SGS Iam Ect Input Voltage 110V 220V 240V 380V, 400V, Customized Safety Precaution 1 Aluminum Safety Sensor Safety Precaution 2 Anti Explosion Valve Safety Precaution 3 Anti Explosion Valve Transport Package Full Container Specification 5500*2200*2200 Trademark PLK Origin China HS Code 8428909090 Production Capacity 500 Per Month

Product Description

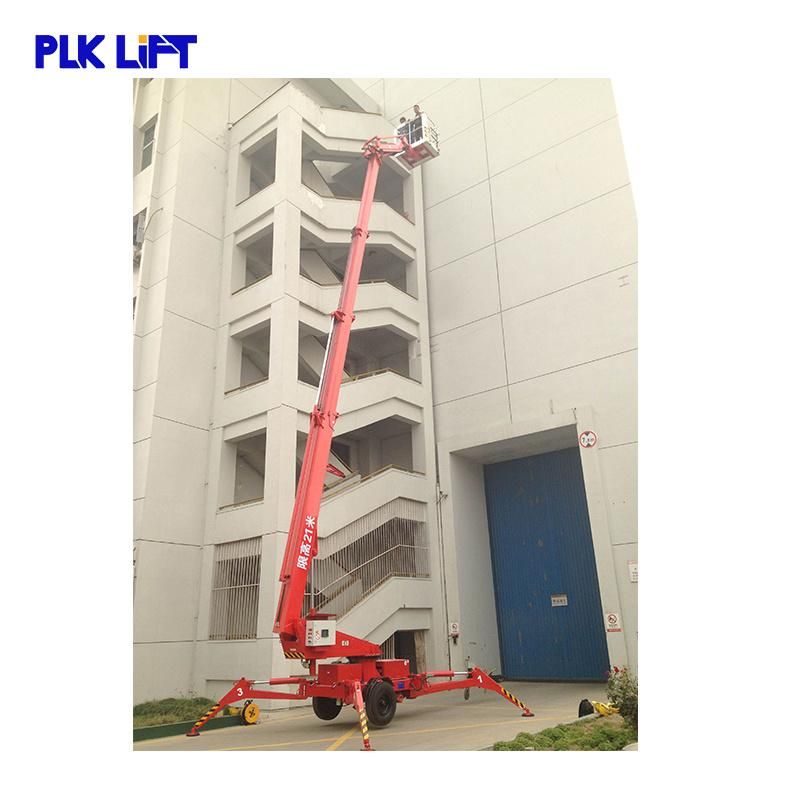

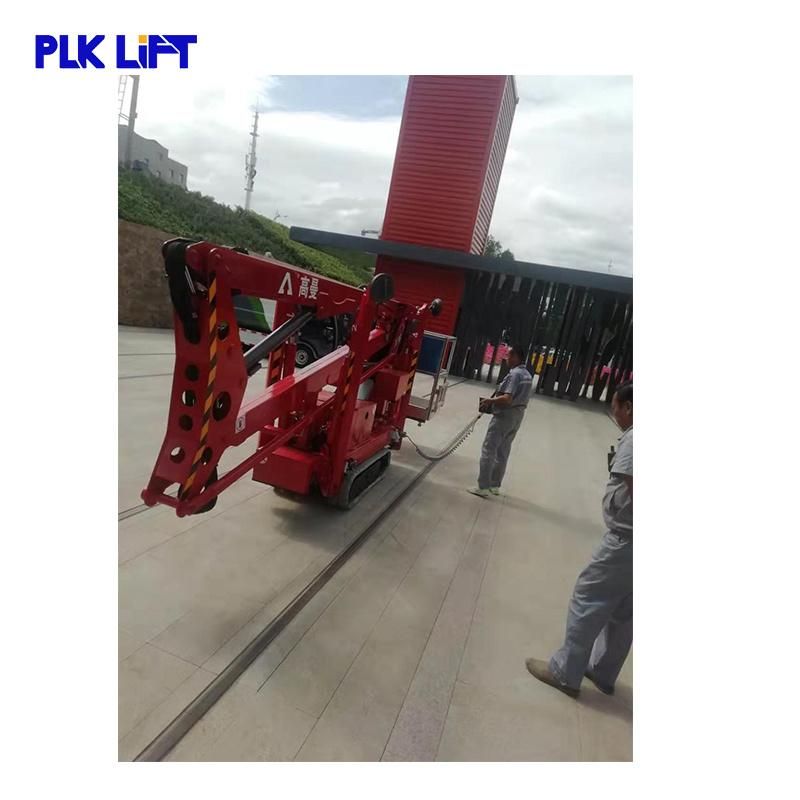

70ft 80ft High End Mobile Boom Lift in China

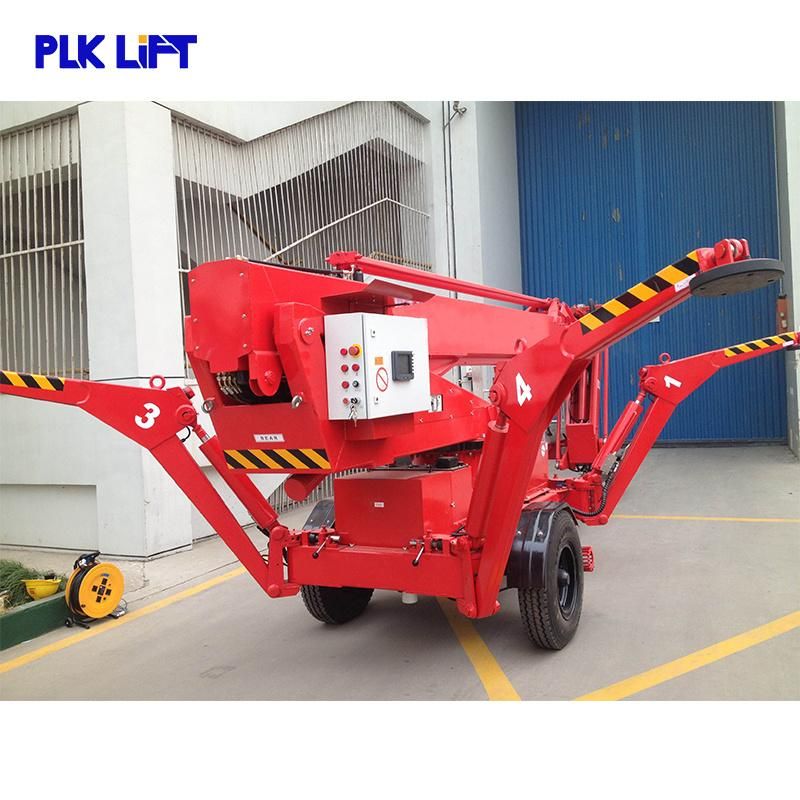

   Towable boom lift platform height from 10m to 16m (working height from 12m to 18m). Load capacity 200kg. It can be towed easily from site to site and work for you quickly. It is widely used for aerial working, such as road lamp repair, palm tree trimming work and cleaning the window etc.

    Power options available on PLK towable boom lift include AC (connect with electricity), DC (battery power), gasoline, diesel and 'Dual-Energy' ( for example battery & diesel or battery & gasoline), combining the benefits of two power sources on the same machine. Towable Cherry Picker is popular for its easily moving and operation. Having it will be your wisest choice.

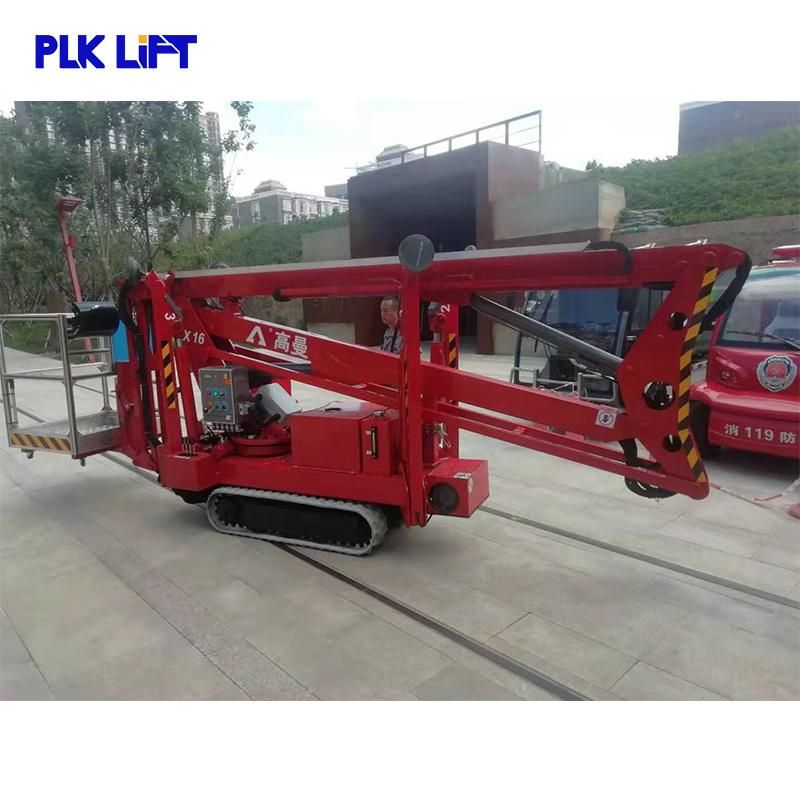

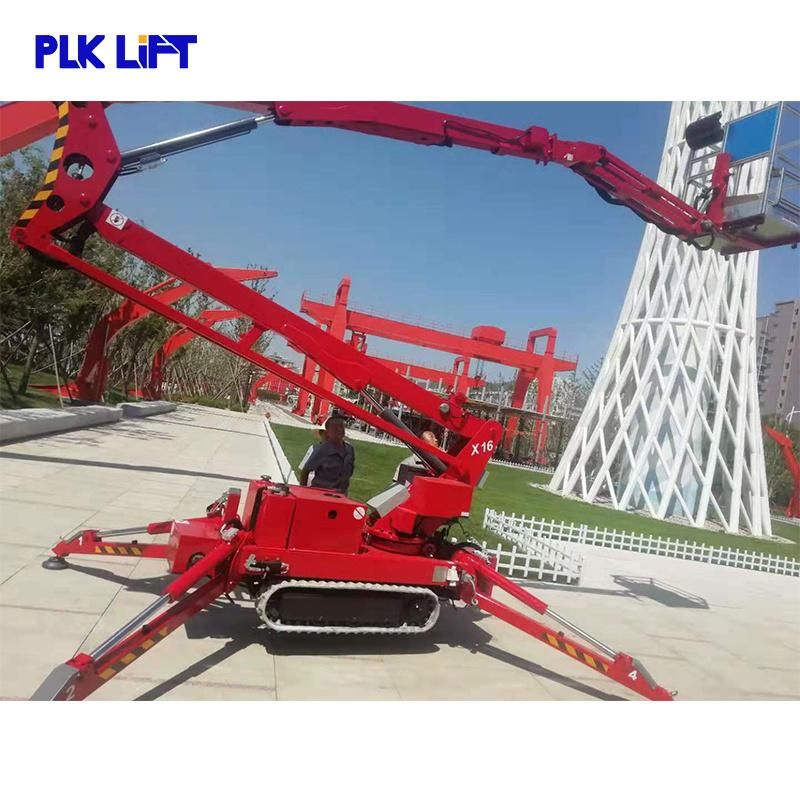

Model	X16
Max.working height	16.00m
Max.platform height	14.00m
Loading capacity	200kg
LateraL outreach at 200kg	6.20m
180Rotation of work cage 180°	Option
Rotation of top boom	120°
Turntable rotation	360°non continuous
Size of platform	0.9X0.8X1.1m
Overall stowed length	4.38/5.20m
Overall stowed width	0.80/0.94m
Overall stowed height	1.99m
Driving speed	0-3.0km/h
Working slope	20%
Max.cliabling ability	30%
Total weight	1900kg
Power	7.5kw
Electic motor	220v/2.2kw
Combustion engine	Gasoline engine
ADjustable crawlers	Option
