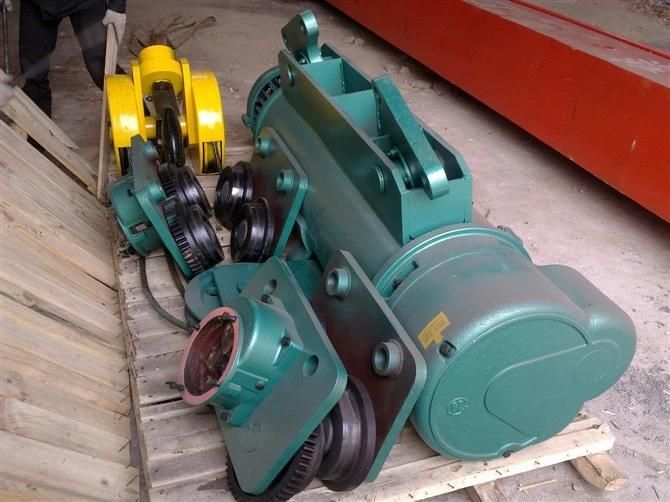

Single Lifting Speed Eelectric Wire Rope Telpher Hoist
Henan Kuangshan Crane Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Single Grinder Crane
- Type：Electric Hoist
- Sling Type：Wire Rope
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：ISO9001: 2000, GOST SGS
Base Info
- Model NO.：CD MD
- Certification：CE, GOST SGS
- Condition：New
- Color：Blue
- GB/T 19001-2000 Idt ISO 9001: 2000：Pass
- GB/T 24001-2004 Idt ISO140012004：Pass
- B/T 28001-2001, OHSAS180011999：Pass
- Main Electrical Parts：Siemens or Chint Brand
- Motor：Nanjing or Nanjing Special Motor
- Weight Overload Protection Device：Include
- Max. Lifting Height：60m
- Sales Records：Ranking No. 1 in China
- Transport Package：Exporting Standard
- Specification：Chinese Standard
- Trademark：Kuangyuan
- Origin：Xinxiang, Henan Province, China
- HS Code：84251100
- Production Capacity：20000sets,Year
Description
ModelCD1 MD1 Capacity Tons 0.25 0.5 1 2 3 5 10 16 Hoisting height M 3, 6, 9 6, 9, 12 6, 9, 12, 18, 24, 30 9, 12, 18, 24, 30 Hoisting speed M/MIN 8(0.8/8) 8(0.8/8) 8(0.8/8) 7(0.7/7) 3.5 (0.35/3.5) Travel speed M/MIN 20 20/30 20/30 20/30 20/30 20/30 20/30 18 Wirerope Dia. (mm) 3.6 4.8 7.4 11 13 15 15 17.5 Spec. 6x39 6x37+FC 6x37+FC 6x37+FC 6x37+FC Hoisting motor Type Type ZD112-4 ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD151-4 ZDS1 0.2/0.8 ZDS1 0.2/1.5 ZDS1 0.4/3.0 ZDS1 0.4/4.5 ZDS1 0.8/7.5 ZDS1 1.5/13 ZDS1 1.5/13 Power Power(kW) 0.4 0.8(0.2/0.8) 1.5(0.2/1.5) 3.0(0.4/3.0) 4.5(0.4/4.5) 7.5(0.8/7.5) 13(1.5/13) 13(1.5/13) Rotation speed Rotation speed(r/min) 1380 1380 1380 1380 1380 1400 1400 1400 Current (A) 1.25 2.2(0.72/2.4) 4.3(0.72/4.3) 7.6(1.25/7.6) 11(2.4/11) 18(2.4/18) 30(5.2/30) 30(5.2/30) Travel motor Type Type ZDY110-4 ZDY111-4 ZDY111-4 ZDY112-4 ZDY112-4 ZDY121-4 ZDY121-4 ZDY121-4 Power Power(kW) 0.06 0.2 0.2 0.4 0.4 0.8 0.8x2 0.8x2 Rotation speed Rotation speed(r/min) 1400 1380 1380 1380 1380 1380 1380 1380 Current Current(A) 0.3 0.72 0.72 1.25 1.25 2.4 2.4 2.4 Power AC 380V, 50HZ, 3P(As your demand)
