15kw Explosion Proof Scraper Winch

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Electric Winch
  • Driven Type：Screw
  • Speed：Slow
  • Carrying Capacity：Weight Level
  • Running Mode：Stationary
  • Feature：Antiseptic, Insulating, Explosion-Proof

Base Info

  • Model NO.：15KW
  • Certification：CE
  • Standard：National Standards
  • Working Pressure：0.69-1.0MPa
  • Traction：8kn
  • Max Rope Speed：32m,Min
  • Rope Capacity：45m
  • Weight：360kg
  • External Dimension：920*675*475
  • Humidity：100%
  • Wind Speed & Wave Height：6 , 2
  • Condition：New
  • Keywords：Scraper Winchs
  • Transport Package：Carton Box, Plastic Bagsor as Your Payment
  • Specification：CE, SGS
  • Trademark：China Coal
  • Origin：China
  • HS Code：8548900010
  • Production Capacity：1000 Sets Per Month

Description

  NameParameterUnitWorking pressure0.69-1.0MPaTraction8kNMax rope speed32m/minAir motorRated power7.5kWRotating speed1200rpm    DrumDiameter205mmLength150mmWheel flange diameter350mm            Wire-rope diameter9.3mm                Rope capacity45mExternal dimensionL × W × H920× 675× 475mmWorking        condition    Temperature-10  +60° CHumidity100% Wind speed & wave height6 / 2level/M                        Weight360kg

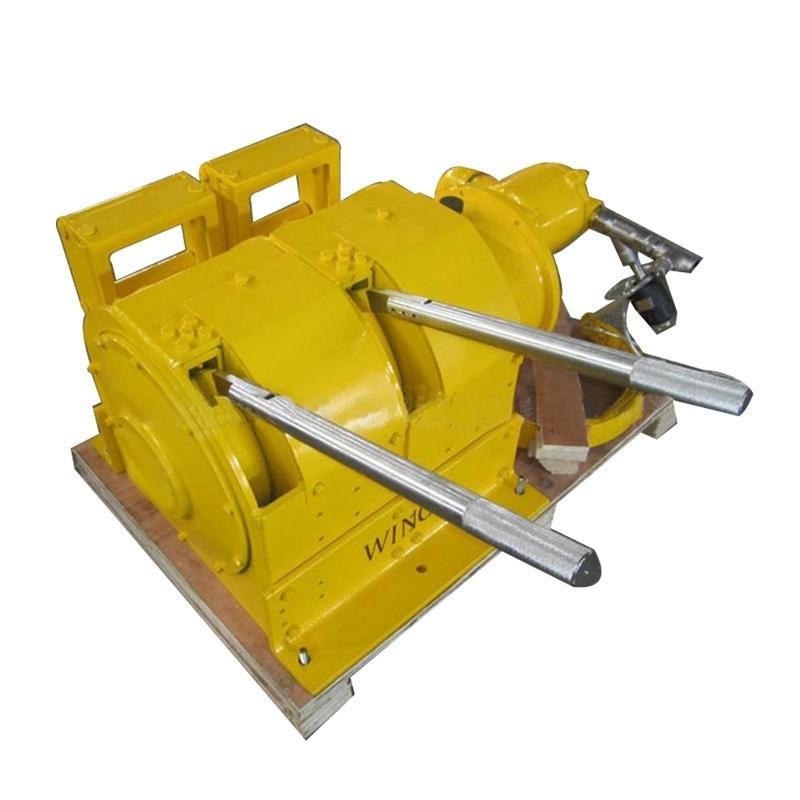

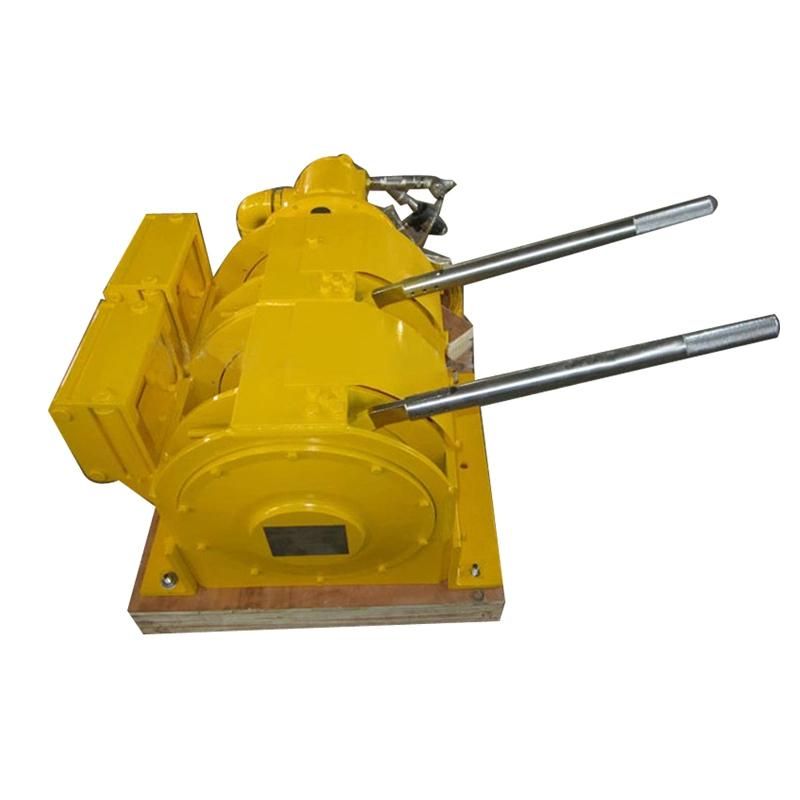

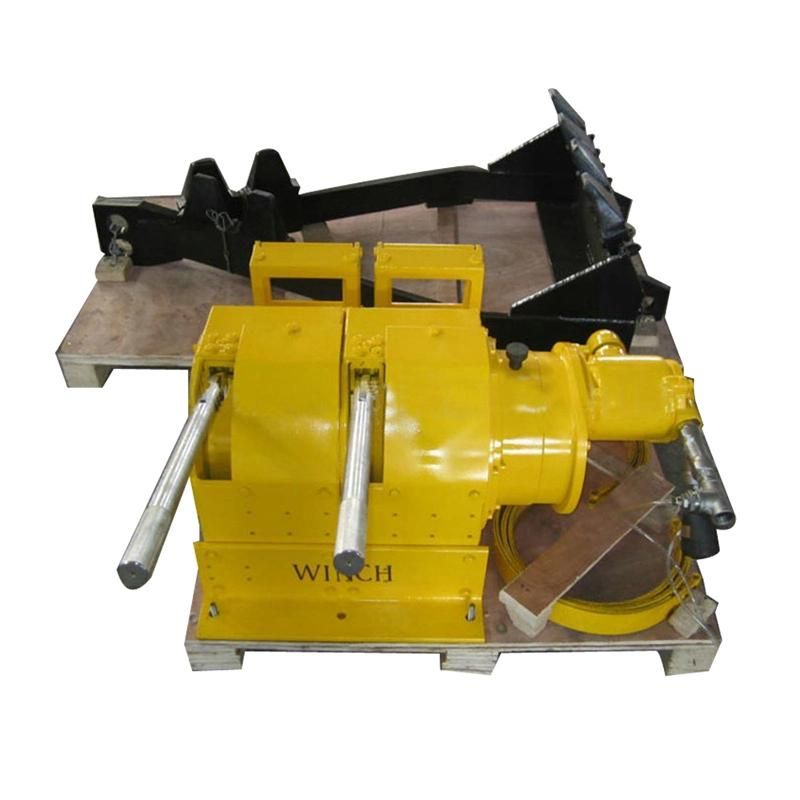

Photos Of 15kw Explosion Proof Scraper Winch15kw Explosion Proof Scraper Winch
15kw Explosion Proof Scraper Winch
15kw Explosion Proof Scraper Winch
15kw Explosion Proof Scraper Winch
