Double Drum Electric Slusher Winch with Scraper Bucket
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Electric Winch
- Driven Type：AC
- Speed：Fast
- Carrying Capacity：Weight Level
- Tonnage：2T
- Reel Number：2
Base Info
- Model NO.：2JPB-22
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：CE
- Standard：National Standards
- Power：22kw
- Weight(Main Engine)：1155
- Height：700 mm
- Width：820 mm
- Length：1650 mm
- Rotate Speed R/Min：1470
- Electric Power Kw：30
- Second Drum Rope Capacity：110
- Main Drum Rope Capacity：80
- Width(mm)：160
- Transport Package：Standard Wooden Case
- Specification：CE, SGS
- Trademark：China Coal
- Origin：China
- HS Code：8425311000
- Production Capacity：1000 Sets Per Month
Description
Electric scraper winchItem Unit 2JP(B)-7.5 2JP(B)-15 2JP(B)-22 2JP(B)-30 2JP(B)-55 Main Steel wire rope 's
average Pulling Force
(Not less than) KN 8 14 20 27.5 44 Main wire rope's average speed
(Much or less than 5% ) m/s 1 1.1 1.2 1.2 1.2 Second wire rope's average speed
(Much or less than 5% ) m/s 1 1.5 1.6 1.6 1.8 Steel wire rope's
diameter Main wire rope
diameter mm 9.3 12.5 14 15.5 18.5 Second wire rope
diameter mm 9.3 11 11 14 16 Drum Diameter
(mm) 205 225 280 280 350 Rim diameter
(mm) 350 435 510 510 625 Width(mm) 80 125 510 160 180 Main drum rope capacity m 45 80 80 80 100 Second drum rope capacity m 45 100 100 110 130 Electric power Kw 7.5 15 22 30 55 rotate speed r/min 1440 1460 1470 1470 1470 Dimension Length mm 1210 1525 1600 1650 2070 Width mm 565 660 730 820 1010 Height mm 490 620 640 700 890 Weight(main engine) KG 390 660 900 1155 2125

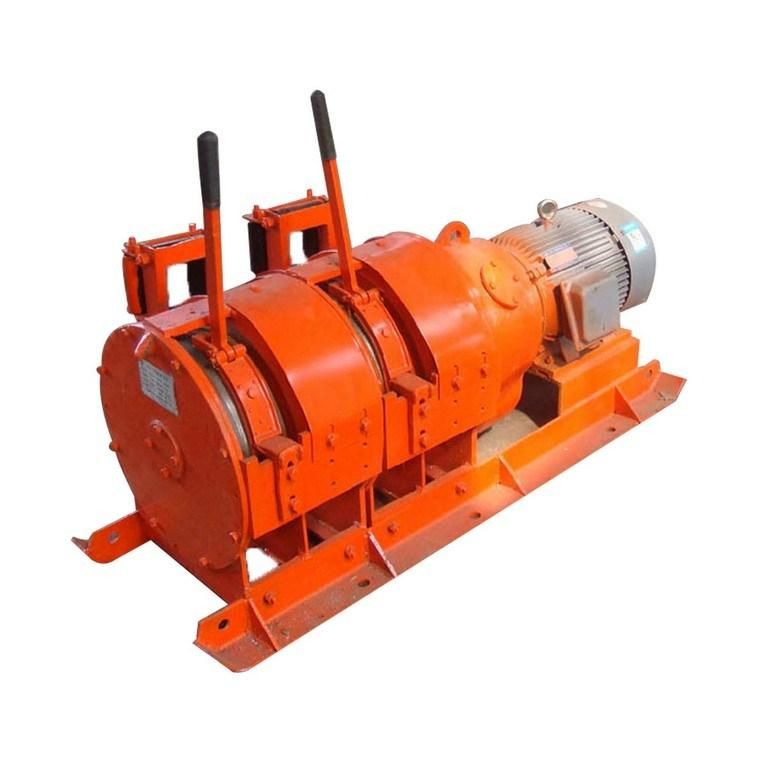

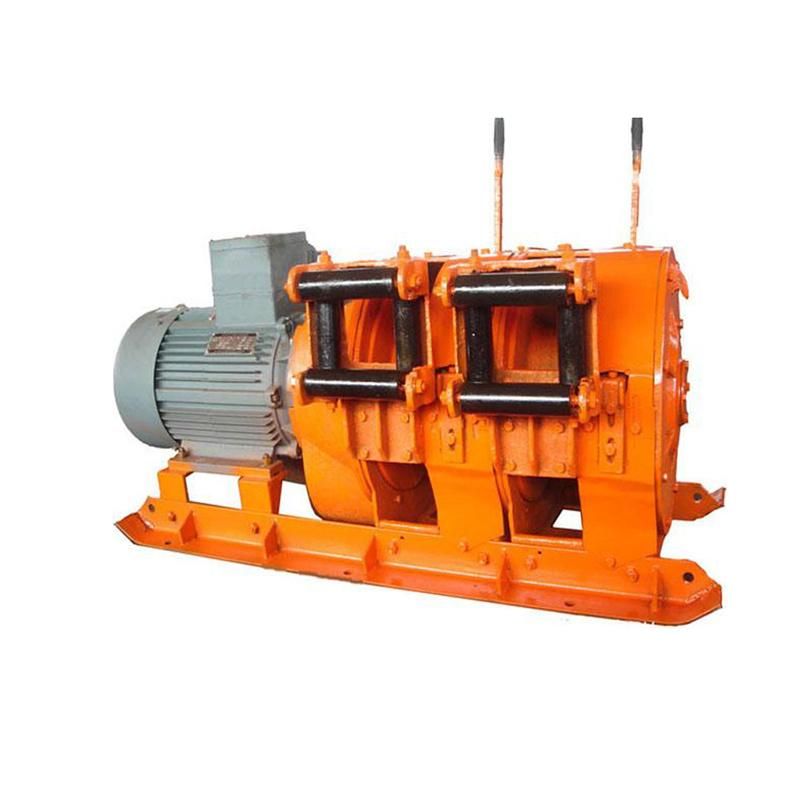

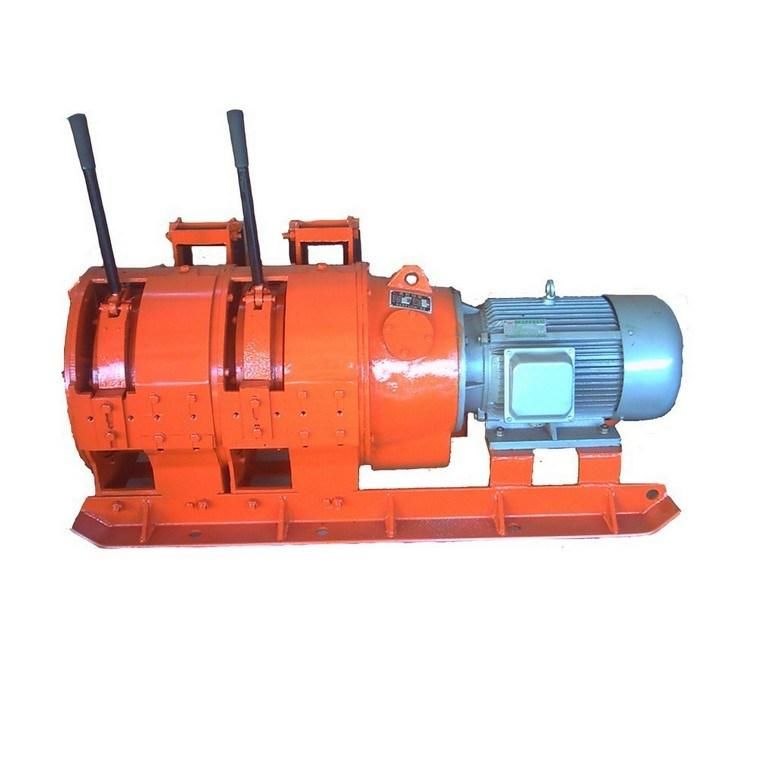

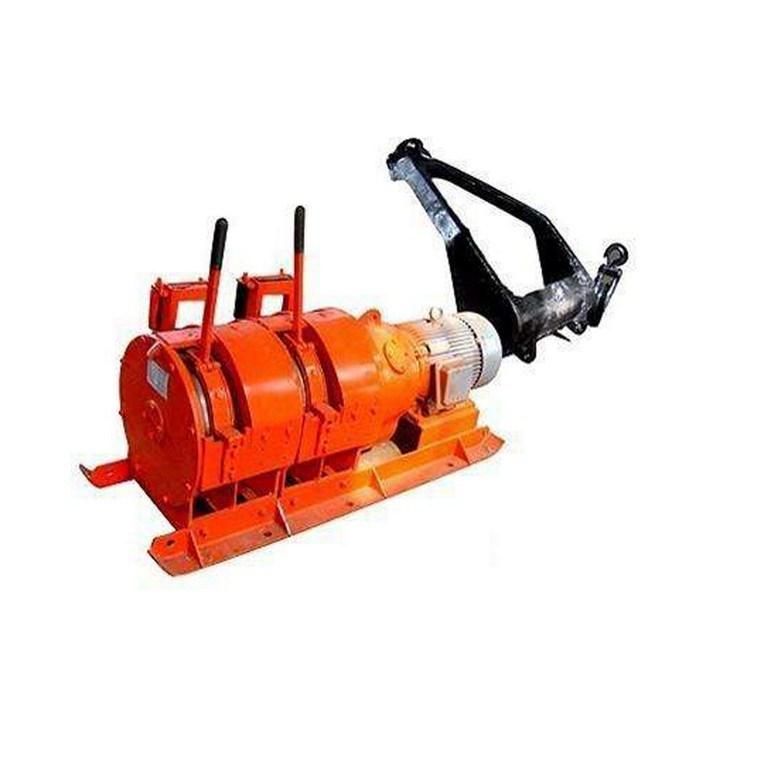

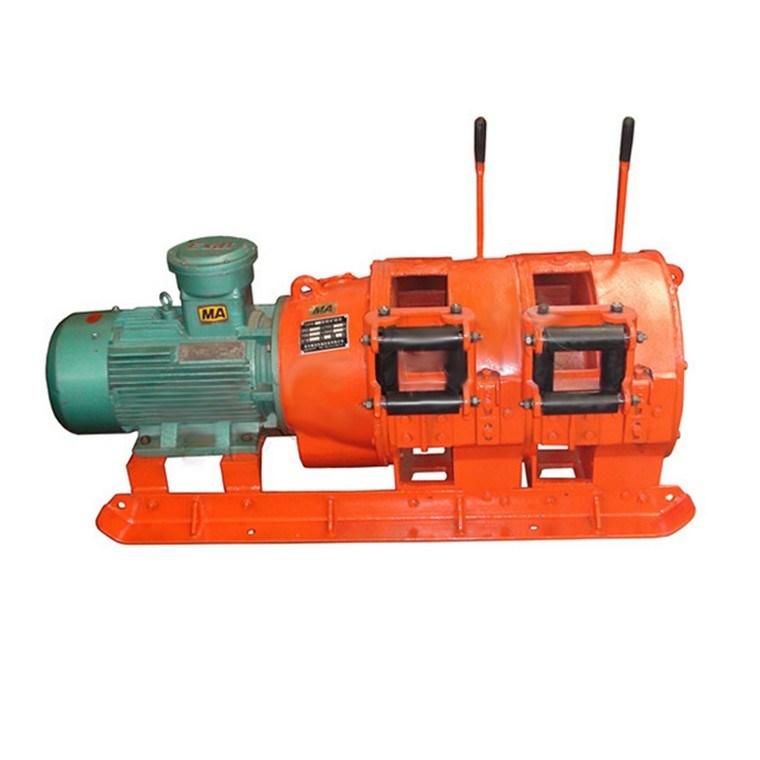

Photos of Double Drum Electric Slusher Winch with Scraper Bucket
