• Model NO.：EWR-L
• Certification：CE
• Platform Size：1035mm*1008mm
• Own Weight：50kgs
• Loading Capacity：350kgs
• Rated Voltage of Motor：DC24V
• Time for Retraction or Extend：12~16s
• Max. Working Voltage of Motor：DC≤31V
• Max. Driving Current：10A
• Max. Working Height：300-380mm
• Net Width of Door：1010
• Model：Ewr-L1
• Transport Package：Wooden Case
• Specification：1035*1008mm
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. EWR-L Certification CE Platform Size 1035mm*1008mm Own Weight 50kgs Loading Capacity 350kgs Rated Voltage of Motor DC24V Time for Retraction or Extend 12~16s Max. Working Voltage of Motor DC≤31V Max. Driving Current 10A Max. Working Height 300-380mm Net Width of Door 1010 Model Ewr-L1 Transport Package Wooden Case Specification 1035*1008mm Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

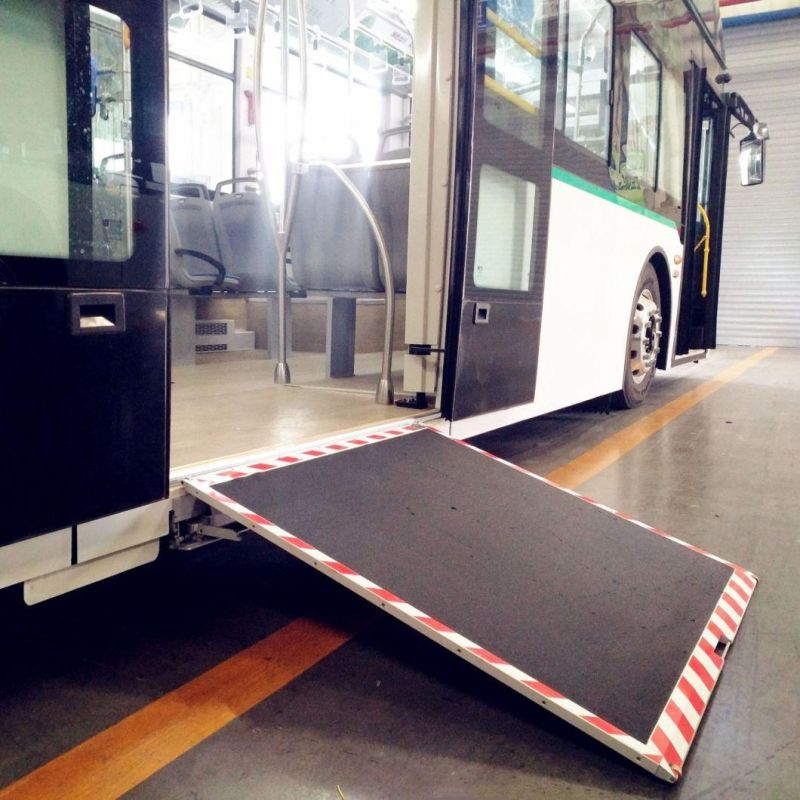

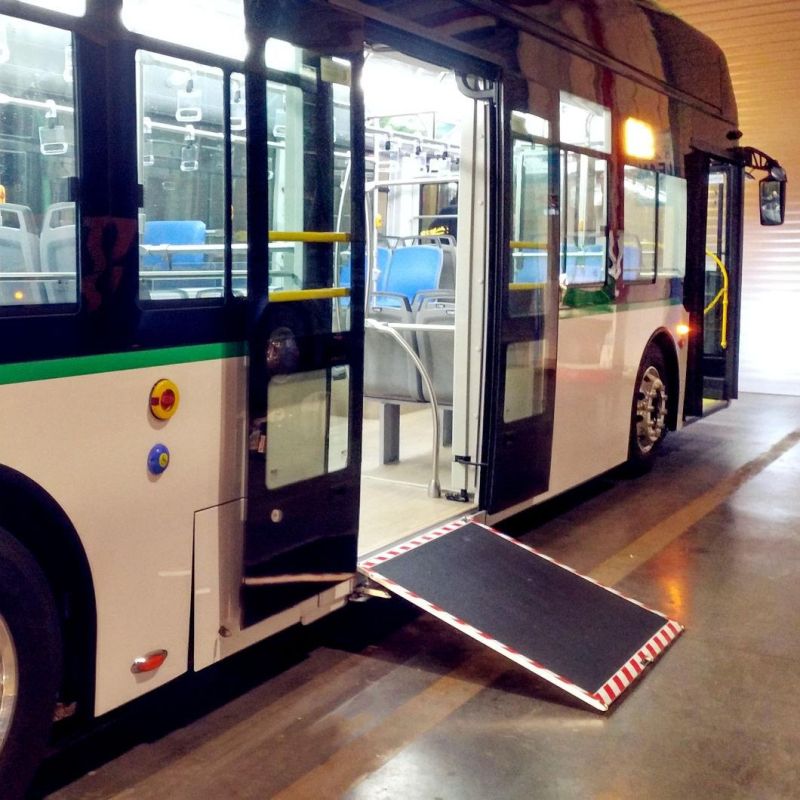

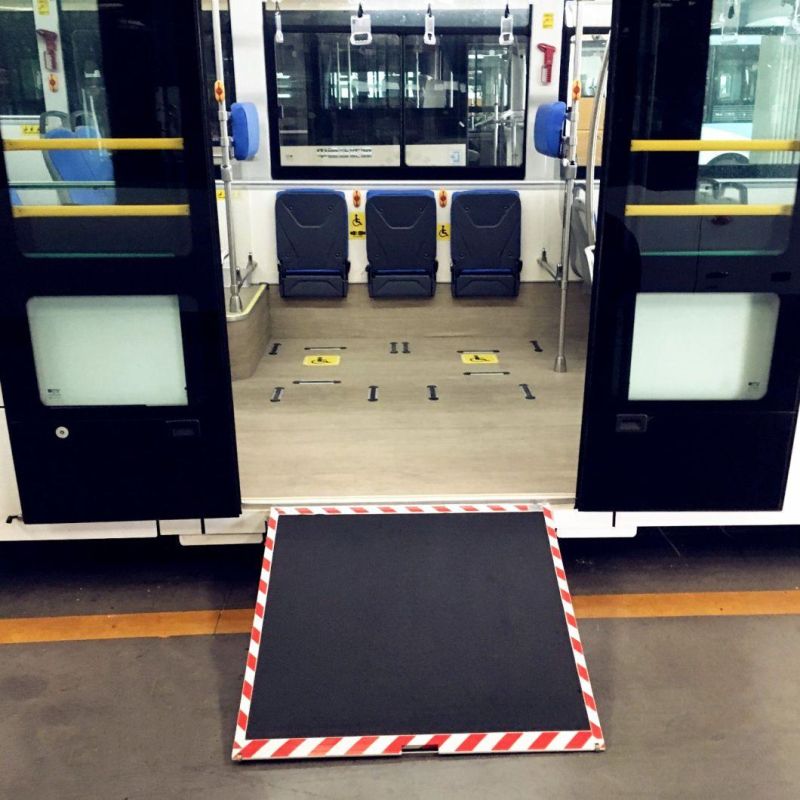

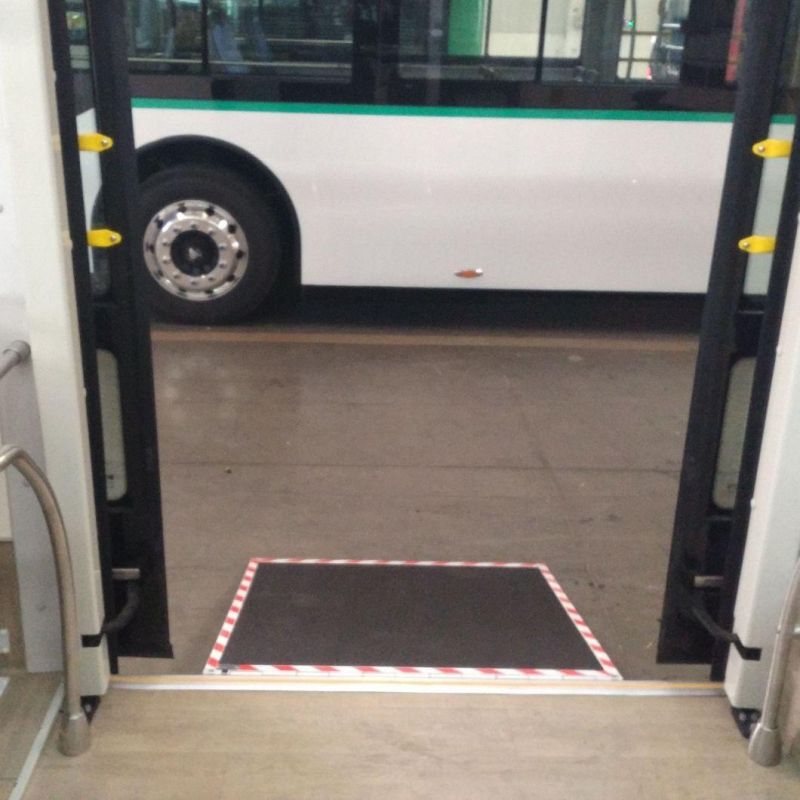

• EWR-L series electric wheelchair ramp is designed for city bus to help a person to enter bus comfortably and easily while seated in a wheelchair.

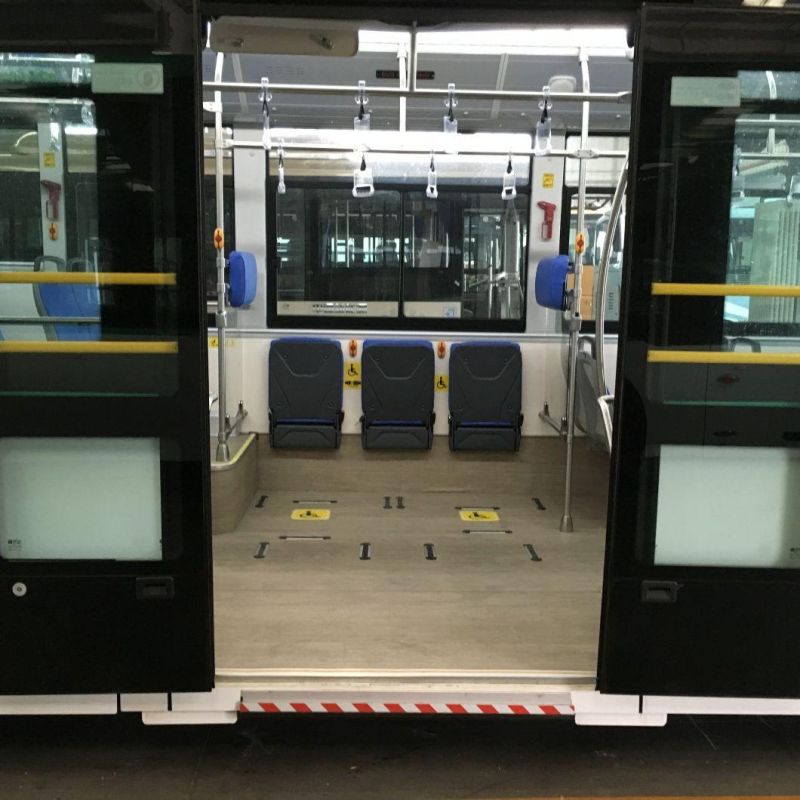

• It is installed under bus chassis, and it doesn't obstruct view, access and emergency exit.

• It is driven by motor.

• It is controlled by switch.

• Main material is aluminum, which is light and with high corrosion resistance.

• This ramp has got two patents.



Advantages:

• doesn't obstruct view, access and emergency exit when not in use;

• warning sound during working;

• manual backup function;

• door interlock function;

• anti-skip platform;

• ramp will stop when touch some barrier during extending out;

• optional function of 15kg loading induction;



Technical Specifications:

• Voltage:   24Vdc or 12Vdc;

• Max. Driving Current:   10A

• Power: 40W;

• Max Loading Capacity: 350 Kg

• Eliminate threshold drop: 60mm
