• Model NO.：ZT20J
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：22.75m
• Platform Height：20.75m
• Horizontal Outreach：16.8m
• Wheelbase：2.13m
• Ground Clearance：0.42m
• Platform Capacity：300kg,454kg
• Drive Speed (Working)：6.0km,H
• Gradeability：45%
• Tail Swing：1.45m
• Max. Wind Speed：12.5m,S
• Engine：D2.9L4
• Fuel Tank Capacity：130L
• Hydraulic Tank Capacity：150L
• Steering Mode：Front Wheel
• Gross：12200kg
• Transport Package：Nude Package, Suitable for Shipment
• Specification：2.44*0.91*2.78m
• Trademark：Acntruck
• Origin：China
• HS Code：8429510000
• Production Capacity：100 Pieces,Month

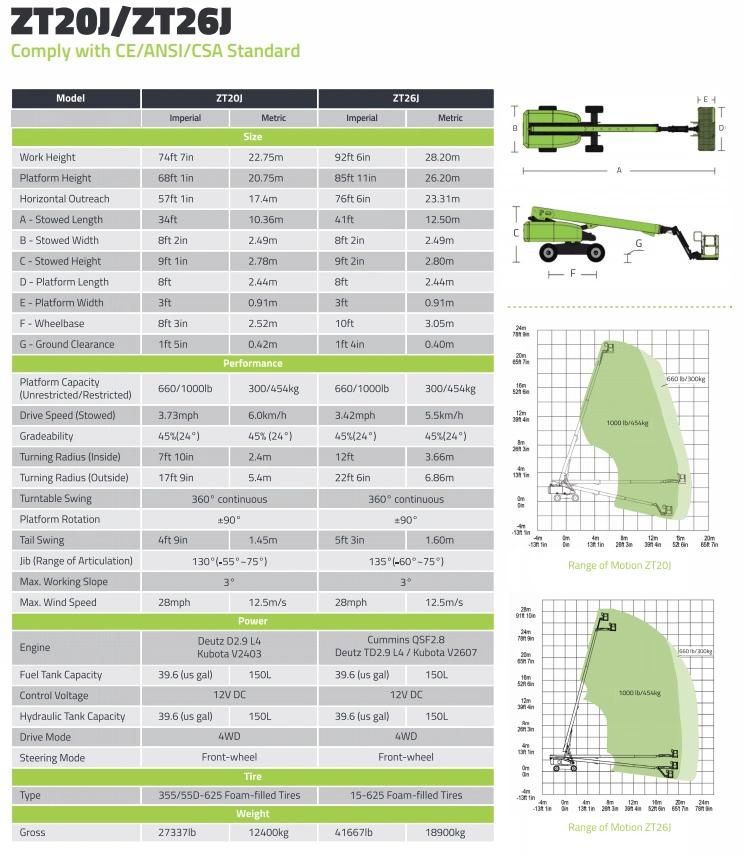

Main Specs of Telescopic Boom LiftsComply with CE/ANSI/GB StandardModelZT34JZT26JZT20JSizeWork Height36m28.20m22.75mPlatform Height34m26.20m20.75mHorizontal Outreach23.50m22.71m16.80mA - Stowed Length13.50m12.5m10.36mB - Stowed Width2.49m2.49m2.49mC - Stowed Height3m2.80m2.78mD - Platform Length2.44m2.44m2.44mE - Platform Width0.91m0.91m0.91mF - Wheelbase3.80m3.05m2.52mWheelbase2.05/3.41m2.11m2.13mG - Ground Clearance0.41m0.40m0.42mPerformancePlatform Capacity (Unrestricted/Restricted)300/454kg300kg/454kg300kg/454kgDrive Speed (Working)5.5km/h5.5km/h6.0km/hGradeability45%(24°)45%   (24°)45%   (24°)Turning Radius (Inside)2.80m3.66m2.4mTurning Radius (Outside)5.70m6.86m5.4mTurntable Swing360°continuous360°continuous360°continuousPlatform Rotation±90°±90°±90°Tail Swing1.88m1.60m1.45mJib (Range of Articulation)130°(-55°~75°)130°(-55°~75°)135°(-60°~75°)Max. Working Slope3°3°3°Max. Wind Speed12.5m/s12.5m/s12.5m/sPowerEngineKDI2504TCRTD2.9 L4// QSF2.8D2.9L4Fuel Tank Capacity200L150L130LControl Voltage12V   DC12V   DC12V   DCHydraulic Tank Capacity250L150L150LDrive Mode4WD4WD4WDSteering ModeFront-wheel/Rear-wheel/CrabFront-wheelFront-wheelTireTypeIN445/50D710
Foam-filled Tires15-625 Foam-filled Tires355/55D-625   Foam-filled TiresWeightGross19200kg18900kg12200kg

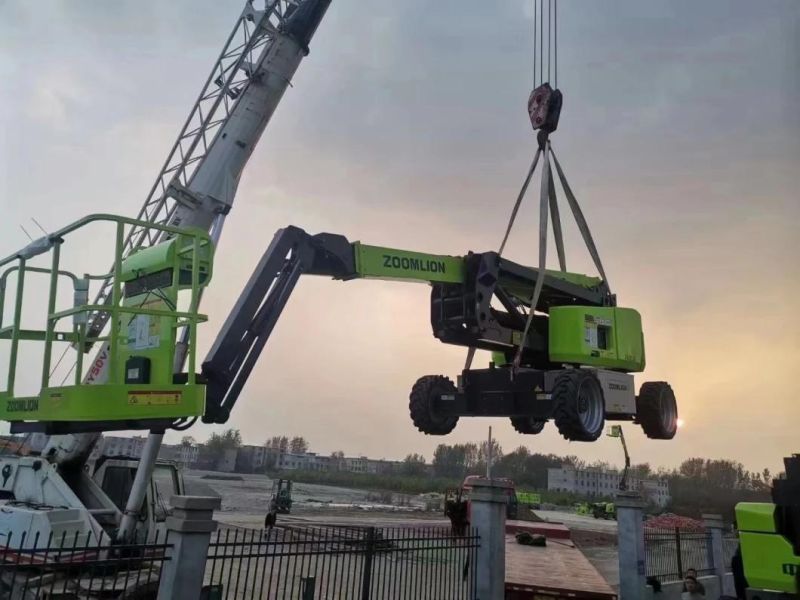

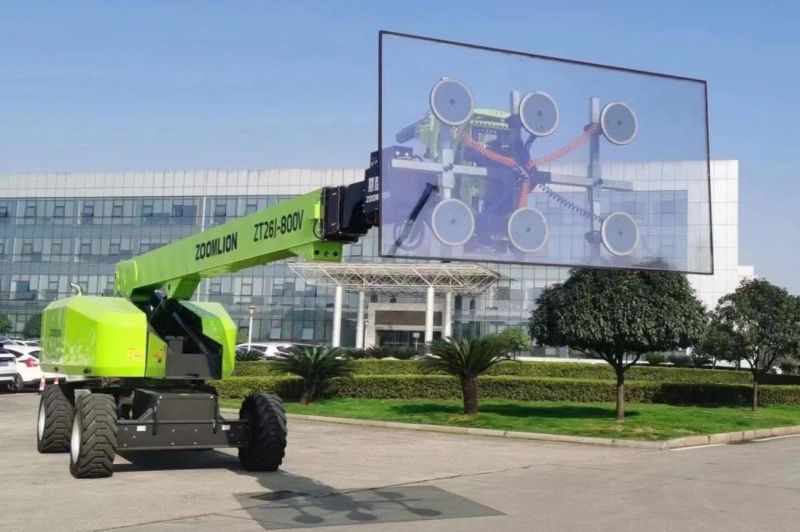

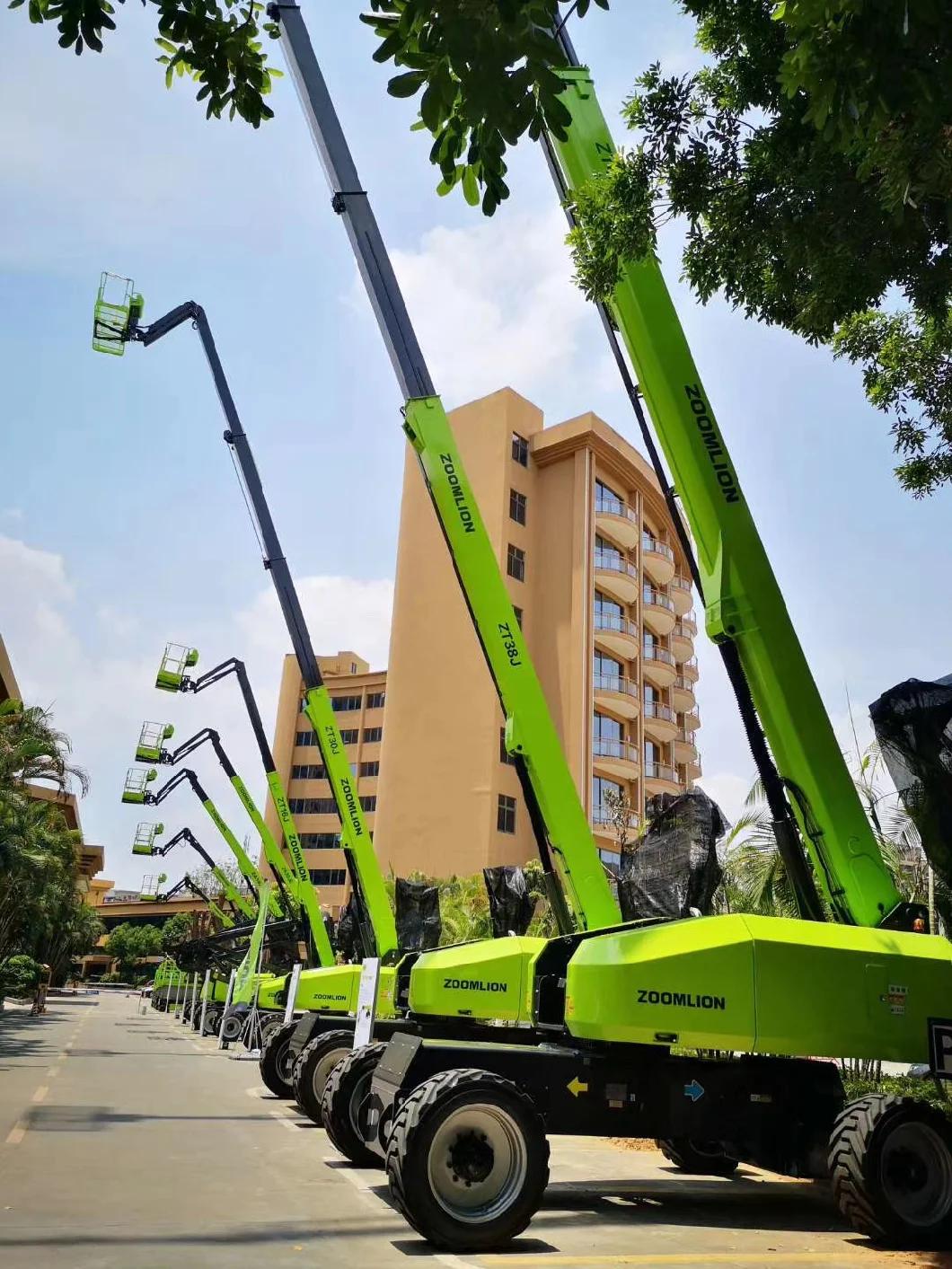

↓↓↓ Pictures about Product ↓↓↓
