• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Work Height：6.5m
• Platform Height-Elevated：4.5m
• Platform Dimension (Length)：1.29m
• Platform Dimension (Width)：0.7m
• Overall Height (Rails up)：2.05m
• Platform Capacity：240kg
• Max. Number of Workers：2
• Drive Speed (Raised)：0.8km,H
• up/Down Time：23,25s
• Gross Weight：895kg
• Battery：2X12V,85ah
• Transport Package：Nude Package
• Specification：1.29m*0.7m*2.05m
• Trademark：Zoomlion
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

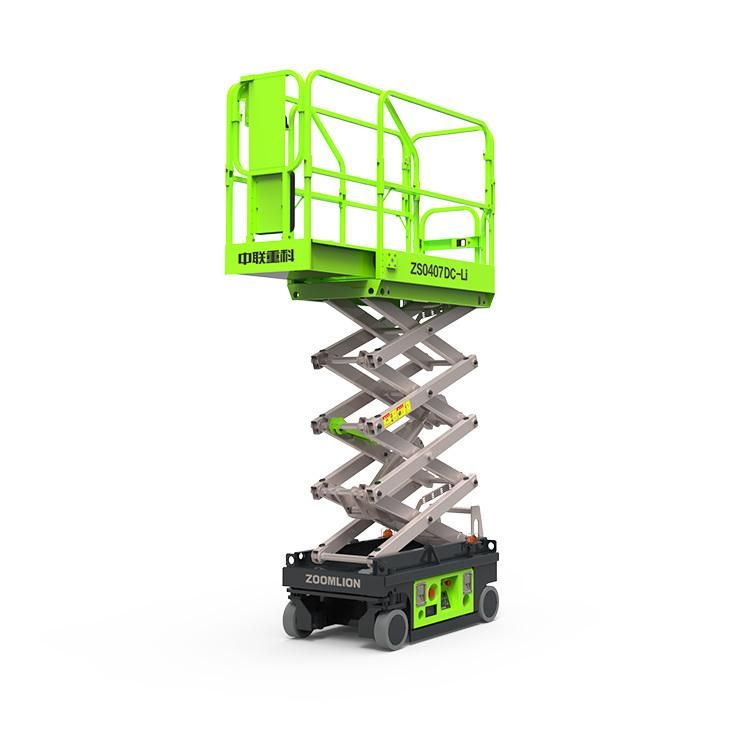

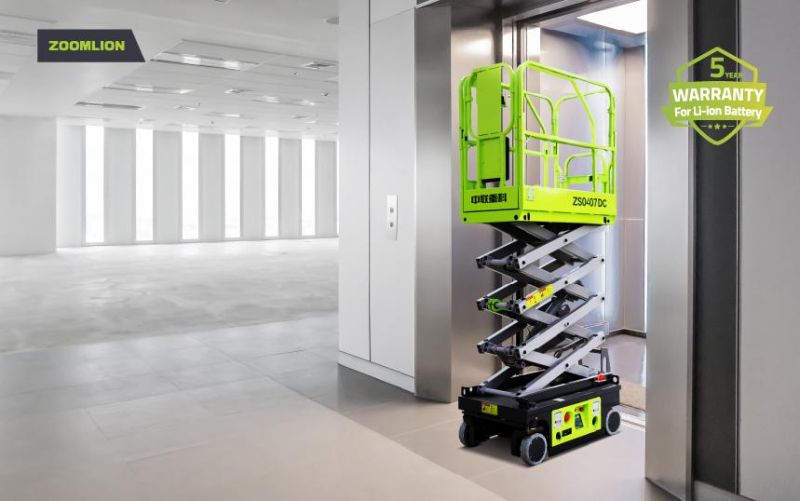

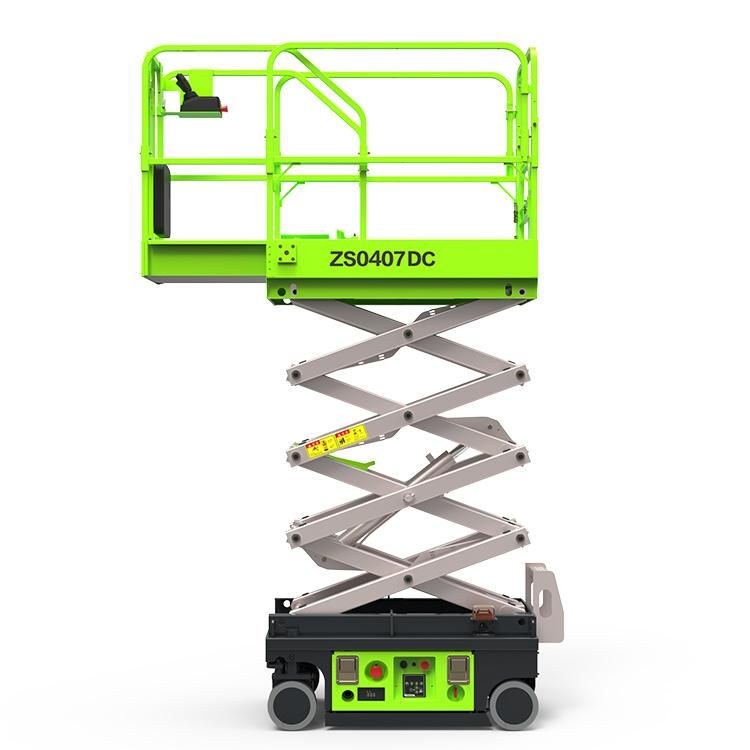

Main   Specs of Micro Scissor LiftsComply with   CE/ANSI/GB StandardModelZS0407DCZS0407DC-LiSizeWork Height6.5m6.5mA - Platform   Height-Elevated4.5m4.5mB - Platform   Height-Stowed0.95m0.95mC - Platform   Length1.29m1.29mD - Platform Width0.7m0.7mPlatform Extension0.6m0.6mE - Overall   Height (Rails Up)2.05m2.05mOverall Height (Rails Down)1.7m1.7mF - Overall Length1.44m1.44mG - Overall   Width0.76m0.76mH - Wheelbase1.05m1.05mI - Ground   Clearance (Stowed)0.06m0.06mJ - Ground   Clearance (Raised)0.017m0.017mPerformancePlatform Capacity240kg240kgCapacity on Deck Extension100kg100kgMax. Number of Workers22Drive Speed (Stowed)4km/h4km/hDrive Speed (Raised)0.8km/h0.8km/hTurning Radius (Inside)0.4m0.4mTurning Radius (Outside)1.6m1.6mLifting Motor24V/1.2KW24V/1.2KWDrive Motor24V/0.45KW24V/0.45KWUp/Down Time23/25s23/25sGradeability25%25%Max. Working Slope (Lateral/Vertical)1.5°/3°1.5°/3°ControlProportional   ControlProportional   ControlDriveRear   WheelsRear   WheelsBrakeRear   WheelsRear   WheelsTire∅230mmX80mm∅230mmX80mmPowerBattery2×12V/85Ah102Ah   Li-ion BatteryCharger24V/15A24V/15AWeightGross895kg895kgAccessories   & OptionsPlatform work lightsLoad sensing systemAC power to platformAirline to platform
