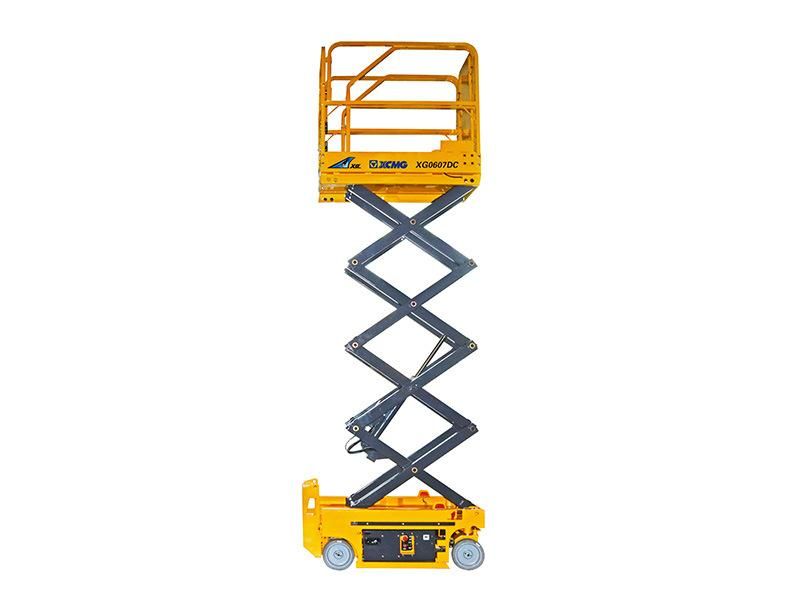

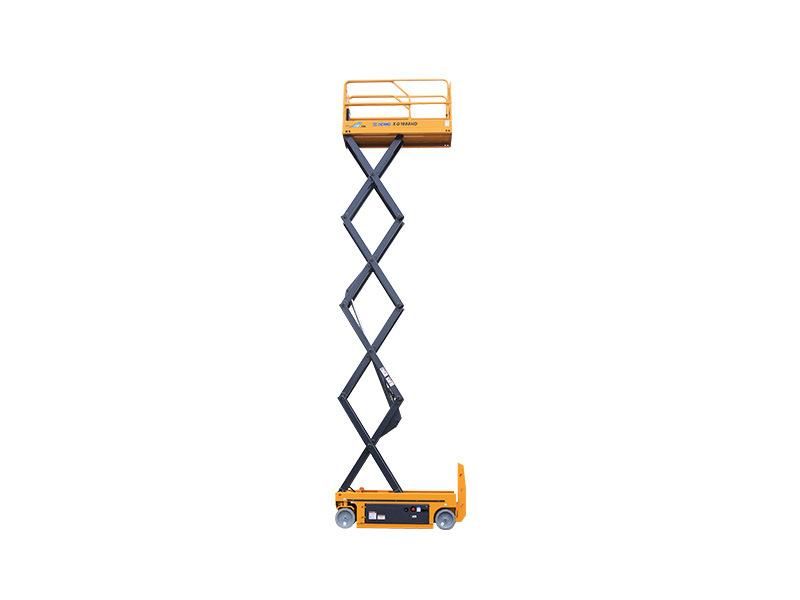

Elevador De Tijera De 12 M De Alta Calidad PARA La Venta

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Light Level
  • Moves：Moving
  • Driven Type：AC,DC
  • Running Mode：Moving

Base Info

  • Model NO.：GTJZ1212
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Maximum Working Height：13.8m
  • Maximum Load Capacity：320kg
  • Extension Platform Load：115kg
  • Platform Size：2276×1120×1254mm
  • Total Weight：3150kg
  • Transport Package：Nude Packing
  • Specification：12m
  • Trademark：Oriemac
  • Origin：China
  • HS Code：8427109000
  • Production Capacity：100units Per Month

Description

ItemUnitParametersa Overall Lengthmm2485b Overall Widthmm1190c Overall Height (Guardrail folding)mm2036d Wheel Basemm1871Maximum Working Heightm13.8Maximum Platform Heightm11.8Maximum Load Capacitykg320Extension Platform Loadkg115Platform Sizemm2276×1120×1254PlatformExtension Lengthmm900Lifting Speed of Working Platforms61-71Falling Speed of Working Platforms43-58Total Weightkg3150Travel Speed (High Speed)km/h3.2Travel Speed (low Speed)km/h0.8Max. Travel Platform Heightm11.8Minimum Turning Radiusm0Minimum Ground Clearance (Pot Hole Protector Rises/Falls)mm101/20Maximum Grade Ability%25Tire Specification_Traceless solid38.1cm×12.7cmBatteryV/(Ah)4×12(300)ChargerA30Warning Angle of Inclination°1.5 (Both sides)°3(front or rear)Elevador De Tijera De 12 M De Alta Calidad PARA La Venta
