• Model NO.：HU600, HU1000, HU1500
• Feature：Lifting
• Certification：GS, CE
• Material：Steel
• Transport Package：1PC,Wooden Case
• Specification：CE
• Trademark：NU-LIFT
• Origin：Jiangsu, China(Mainland)
• HS Code：8427900000
• Production Capacity：2000PCS, Month

Basic Info.

Model NO. HU600, HU1000, HU1500 Feature Lifting Certification GS, CE Material Steel Transport Package 1PC/Wooden Case Specification CE Trademark NU-LIFT Origin Jiangsu, China(Mainland) HS Code 8427900000 Production Capacity 2000PCS/ Month

Product Description

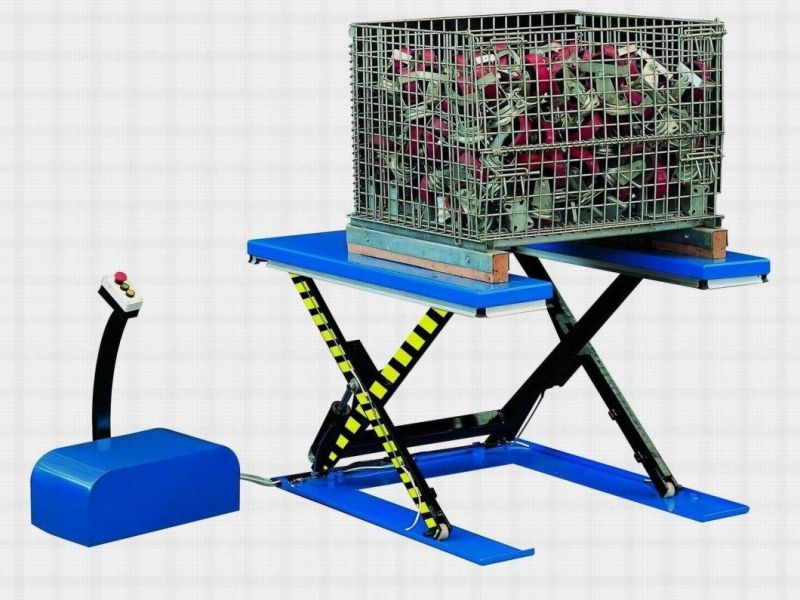

'U' Shaped Top Platform
Specially for handling pallets, no need for a pit or load ramps.
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.

Model	HU600	HU1000	HU1500
Capacity (kg)	600	1000	1500
Max. height H(mm)	860	860	860
Collapsed height h(mm)	85	85	105
Platform L×W(mm)	1450×985	1450×1140	1600×1180
Lifting Time (second)	25~35	25~35	30~40
Power Pack (KW)	380V/50Hz,AC1.1KW	380V/50Hz,AC0.75KW	380V/50Hz,AC1.5KW
Net Weight (kg)	207	280	380

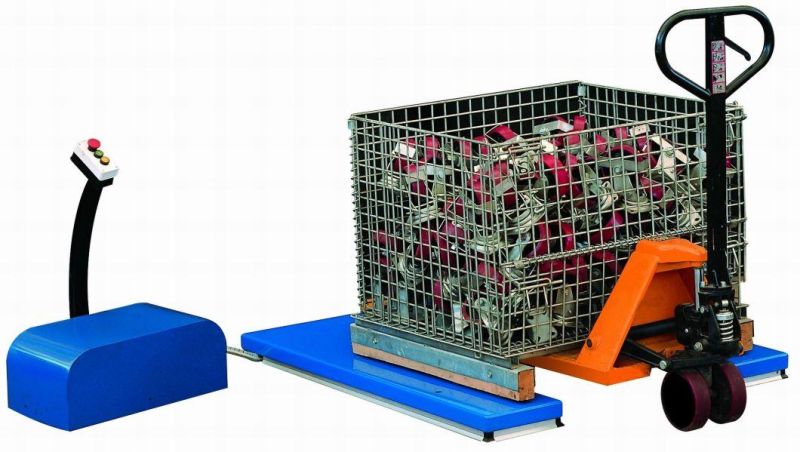

Note:Clearance between two forks for pallet truck access 585mm
