• Model NO.：CTD
• Transport Package：Woven Bags
• Specification：CE
• Trademark：NIU LI
• Origin：China
• HS Code：842710900
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. CTD Transport Package Woven Bags Specification CE Trademark NIU LI Origin China HS Code 842710900 Production Capacity 10000PCS/Year

Product Description

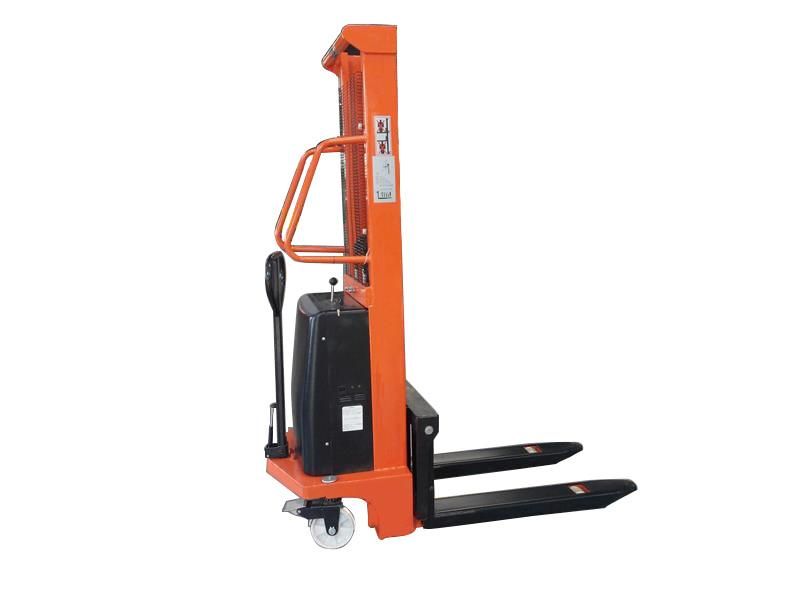

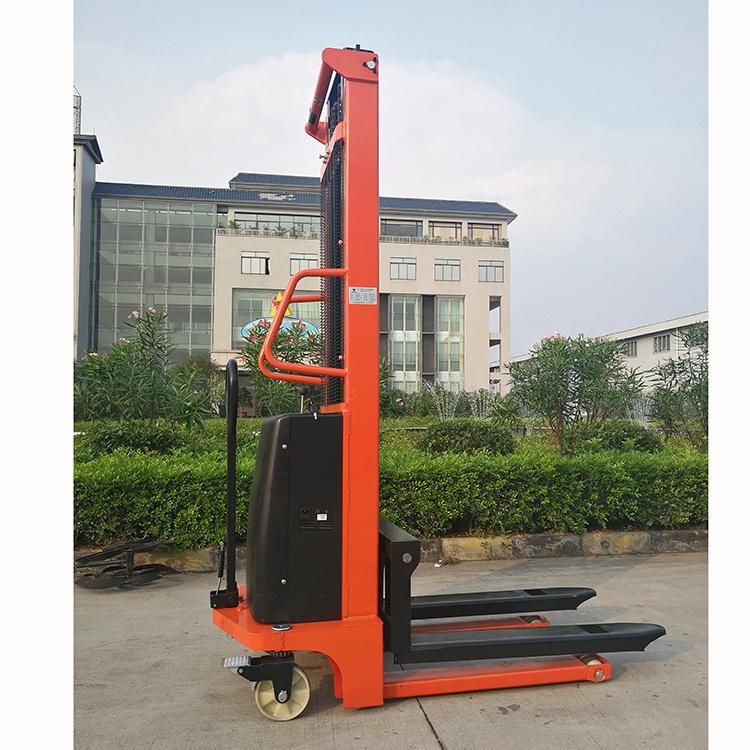

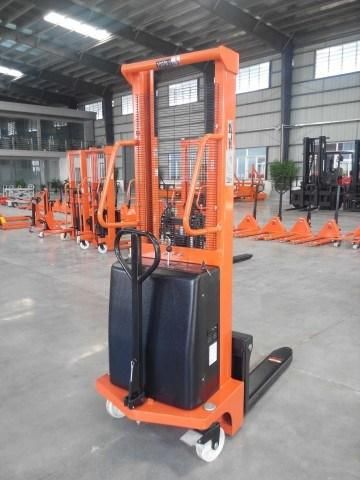

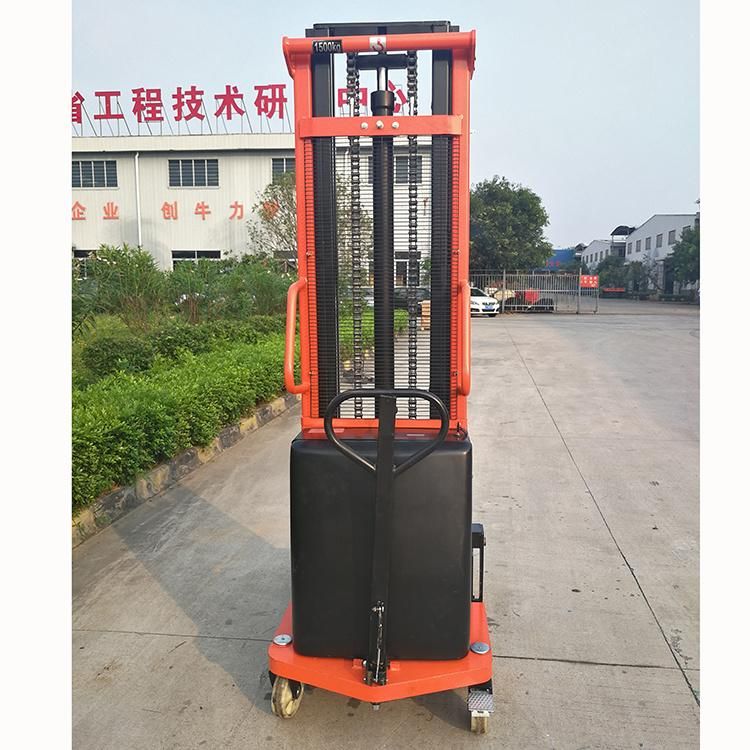

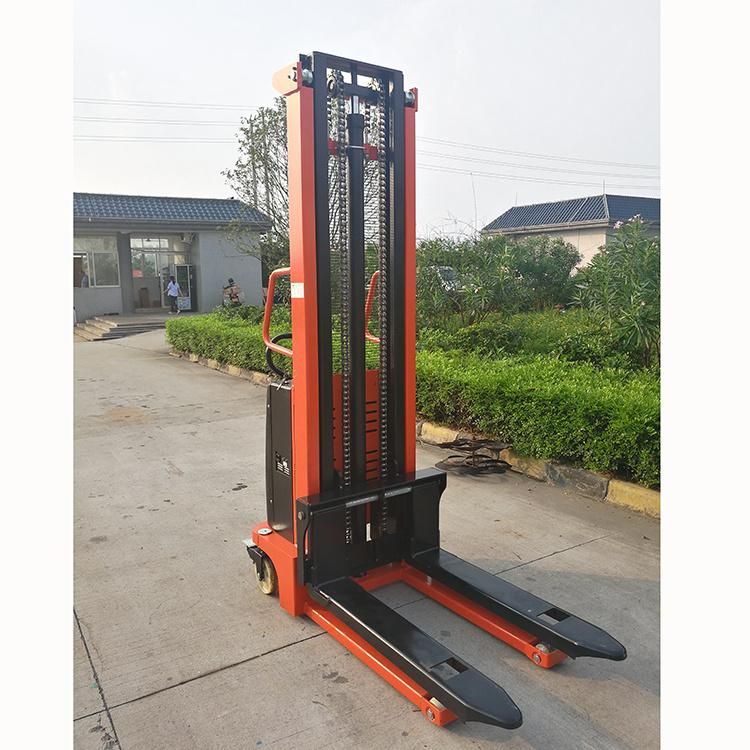

CTD Electric Stacker
The products is lifting vehicle with hand push and electric lift and descend.
The power system is exported, safety drop and reliable
High quality and strong steel construction and good sealing.

1. Capacity: 1000kg
2. Lift Height: 1600mm.
3. Fork Length: 1000mm.
4. Min Height Of Forks Lowered: 80-90mm.
5. Charging Voltage: AC220V.
6. Adjustable Width Of The Forks: 320-720mm

Model	CTD1.0/16	CTD1.0/20	CTD1.0/25	CTD1.5/25	CTD1.5/30/33	CTD2.0/16
Capacity(kg)	1000	1000	1000	1500	1500	2000
Max.lifting height(mm)	1600	2000	2500	2500	3000/3300	1600
Fork length(mm)	1000	1000	1000	1000	1000	1000
Min.fork height(mm)	90	90	90	90	90	90
Load eenter(mm)	500	500	500	500	500	500
Voltage	AC220V	AC220V	AC220V	AC220V	AC220V	AC220V
Motor power	1.6KW	1.6KW	1.6KW	1.6KW	1.6KW	1.6KW
Outer width of front legs(mm)	635	635	635	635	635	635
Inner width of legs(mm)	395	395	395	395	395	395
Adjustable Width of fork(mm)	360-690	360-690	360-690	360-690	360-690	360-690
Rear wheel size(mm)	φ180X50	φ180x50	φ180x50	φ180x50	φ180x50	φ180x50
Front wheel size(mm)	φ80X70	φ80x70	φ80x70	φ80x93	φ80x93	φ80x93
Self Weight(kg)	312	325	340	425	445/465	397
Extended height(mm)	2080	1580	1830	1830	2080/2230	2080
Closed height H3(mm)	2080	2500	3000	3000	3500/3800	2080
