220V to 380V Converter Tower Crane Hoist Motor

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
  • Type：Electric Hoist
  • Sling Type：Wire Rope
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：20m
  • Chain Falls：2

Base Info

  • Model NO.：HSY
  • Certification：CE, ISO9001:2000, TUV SGS
  • Condition：New
  • Color：Yellow
  • Delivery Time：on Time
  • Company：Shanghai Yiying Crane Machinery Co., Ltd
  • Brake System：Electromagnetic Brake
  • Chain：Fec or Made in China
  • Over Load Limit：Available
  • Wire Less Control：Yes
  • Trolley Type：Available
  • Single Speed：Yes
  • Double Speed：Available
  • Chain Bag：Yes
  • Transport Package：High Quality Wooden Case
  • Specification：CE ISO SGS TUV
  • Trademark：HUGO
  • Origin：Shanghai
  • HS Code：8425110000
  • Production Capacity：20000 Per Month

Description

 Product parametersModel
  HSYCapacity
  TONLifting
Height
MLifting
Speed
M/MINLifting  motor Drive  motorPower
KWRotational
Speed
  R/MINPh
aseVoltage
VFrequency
HZ/SPower
KWRotational
Speed
R/MINRunning
speed
M/MINPh
aseVoltage
VFrequency
HZ/S01-0113/96.81.514403380/22050/600.4144011/213380/22050/6002-0223/93.41.514403380/22050/600.4144011/213380/22050/602.5-012.53/96.83.014403380/22050/600.75144011/213380/22050/6003-0233/95.83.014403380/22050/600.75144011/213380/22050/6005-0253/92.83.014403380/22050/600.75144011/213380/22050/60

Features for the electric chain hoist HSY

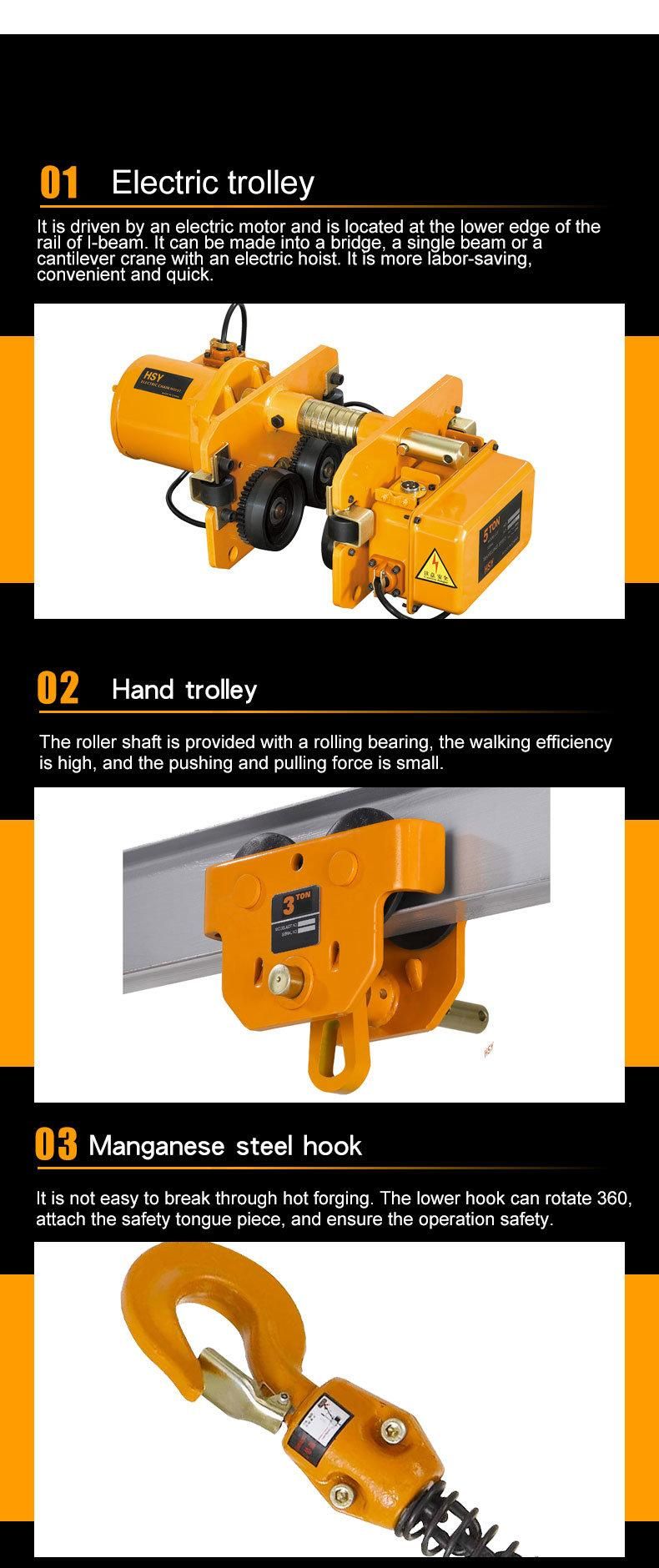

1. Hooks
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.

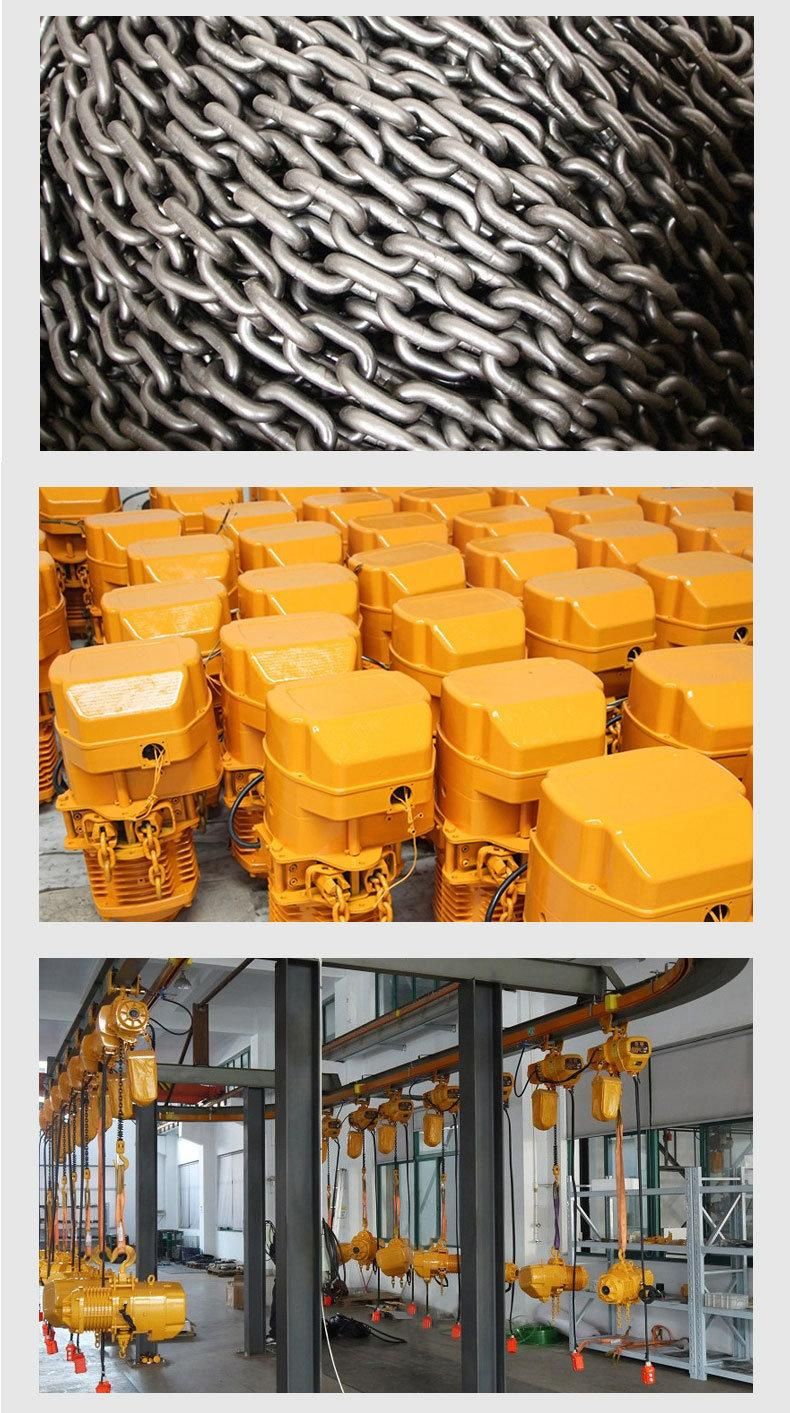

4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.

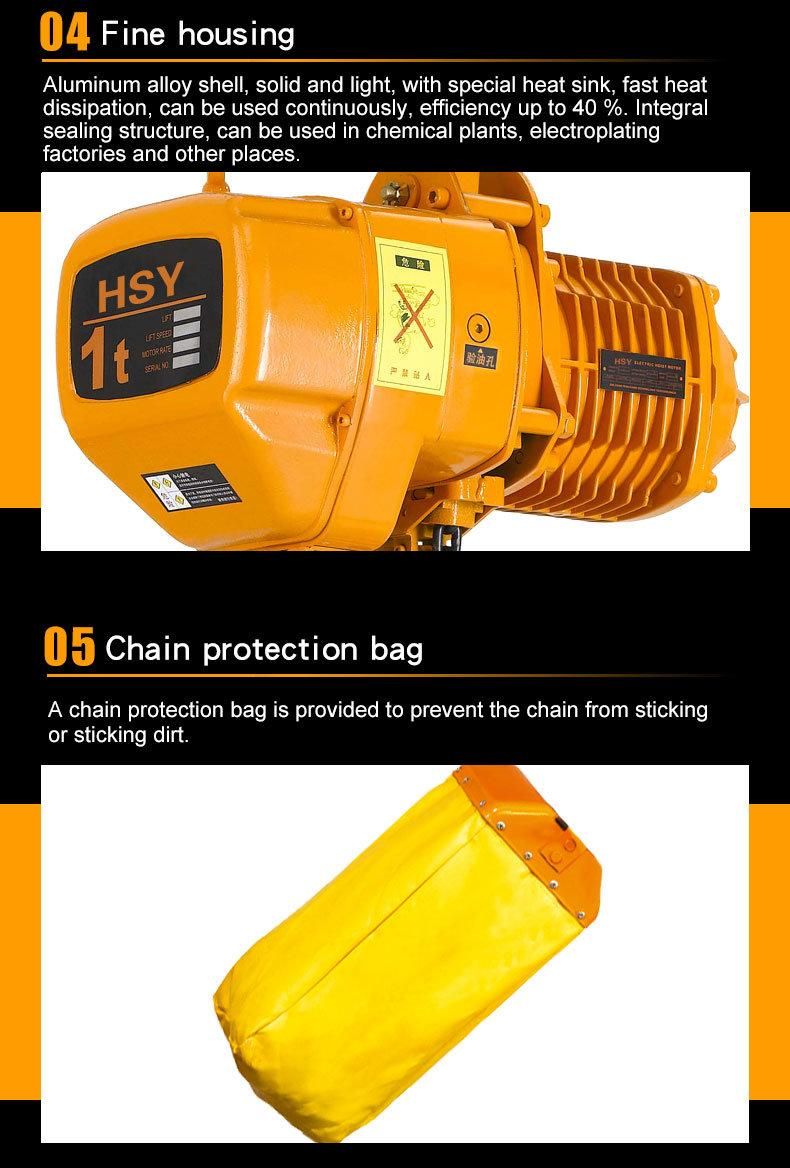

5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.

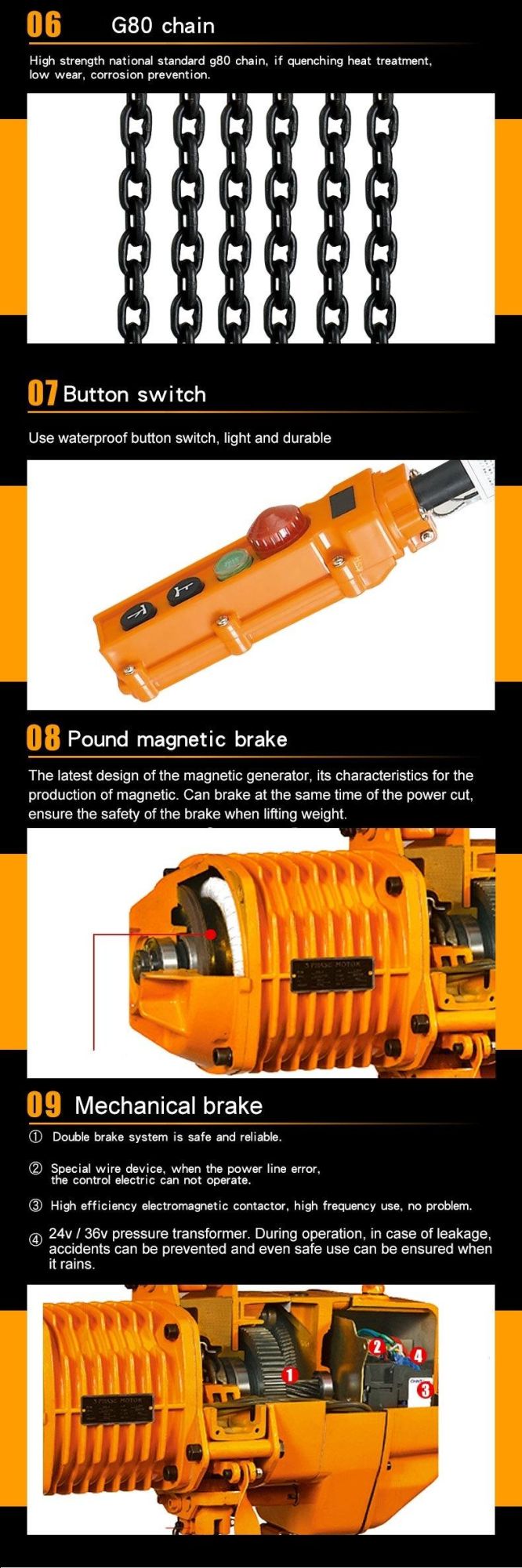

8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.
10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
220V to 380V Converter Tower Crane Hoist Motor

220V to 380V Converter Tower Crane Hoist Motor
220V to 380V Converter Tower Crane Hoist Motor
220V to 380V Converter Tower Crane Hoist Motor Service Payment term:   T/T or L/C Warranty Period:  1 year Delivery time:  5 days after order Packing:  export carton and pallet
