High Quality Complete Details About Design 1ton Electric Chain Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Wire Rope
- Lift Speed：2~8m,min
- Maximum Lifting Height：20m
- Chain Falls：2
Base Info
- Model NO.：HSY
- Certification：CE, ISO9001:2000, TUV SGS
- Condition：New
- Color：Yellow
- Delivery Time：on Time
- Company：Shanghai Yiying Crane Machinery Co., Ltd
- Brake System：Electromagnetic Brake
- Chain：Fec or Made in China
- Over Load Limit：Available
- Wire Less Control：Yes

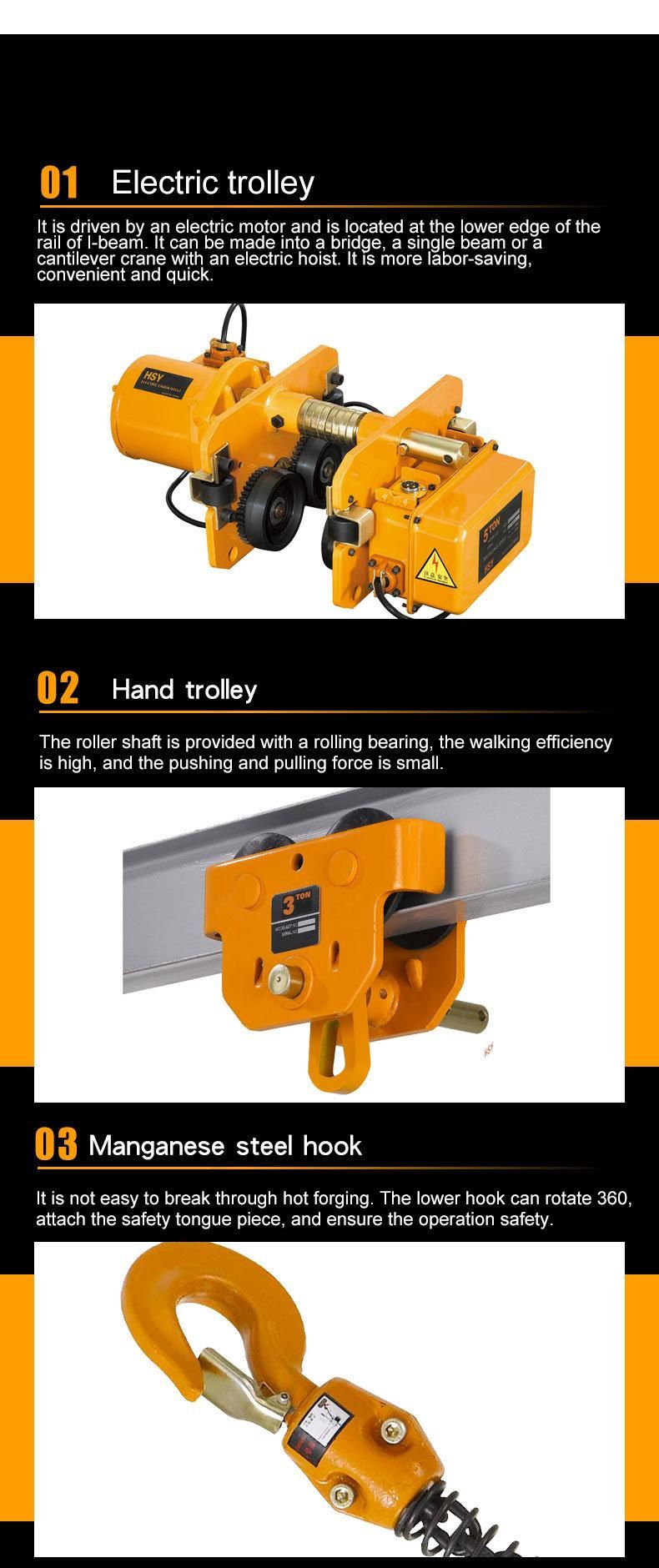

- Trolley Type：Available
- Single Speed：Yes
- Double Speed：Available
- Chain Bag：Yes
- Transport Package：High Quality Wooden Case
- Specification：CE ISO SGS TUV
- Trademark：HUGO
- Origin：Shanghai
- HS Code：8425110000
- Production Capacity：20000 Per Month
Description
Product parametersModel
HSY Capacity
TON Lifting
Height
M Lifting
Speed
M/MIN Lifting motor Drive motor Power
KW Rotational
Speed
R/MIN Ph
ase Voltage
V Frequency
HZ/S Power
KW Rotational
Speed
R/MIN Running
speed
M/MIN Ph
ase Voltage
V Frequency
HZ/S 01-01 1 3/9 6.8 1.5 1440 3 380/220 50/60 0.4 1440 11/21 3 380/220 50/60 02-02 2 3/9 3.4 1.5 1440 3 380/220 50/60 0.4 1440 11/21 3 380/220 50/60 2.5-01 2.5 3/9 6.8 3.0 1440 3 380/220 50/60 0.75 1440 11/21 3 380/220 50/60 03-02 3 3/9 5.8 3.0 1440 3 380/220 50/60 0.75 1440 11/21 3 380/220 50/60 05-02 5 3/9 2.8 3.0 1440 3 380/220 50/60 0.75 1440 11/21 3 380/220 50/60
Features for the electric chain hoist HSY
1. Hooks
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.

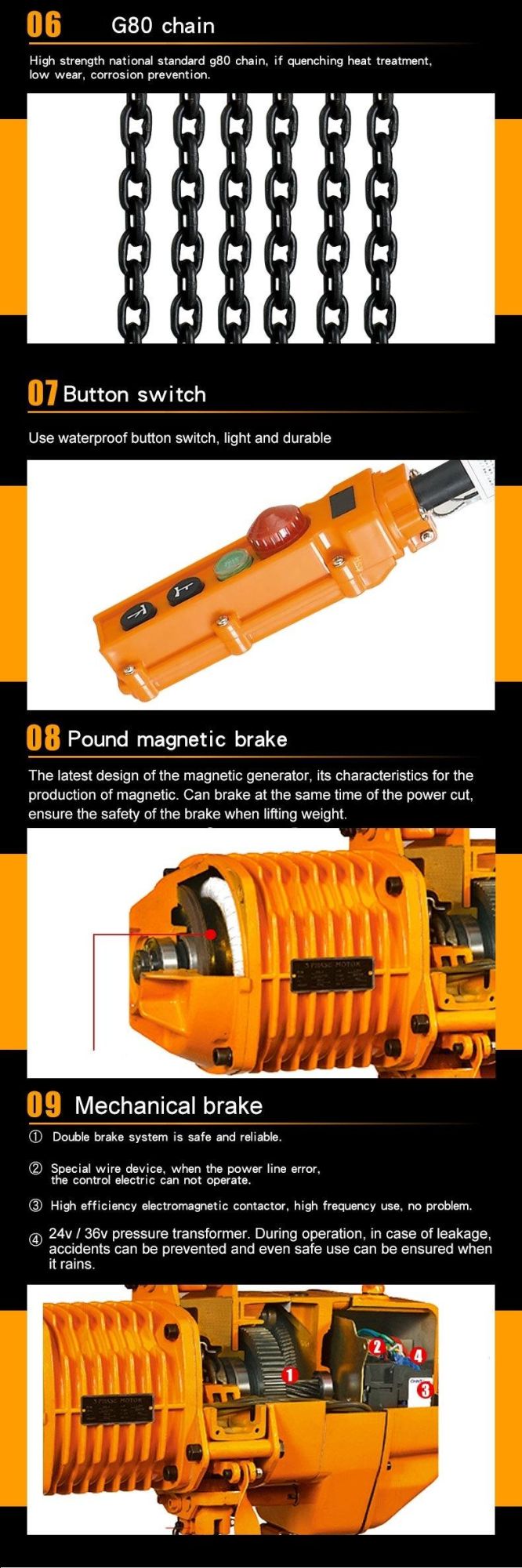

4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.

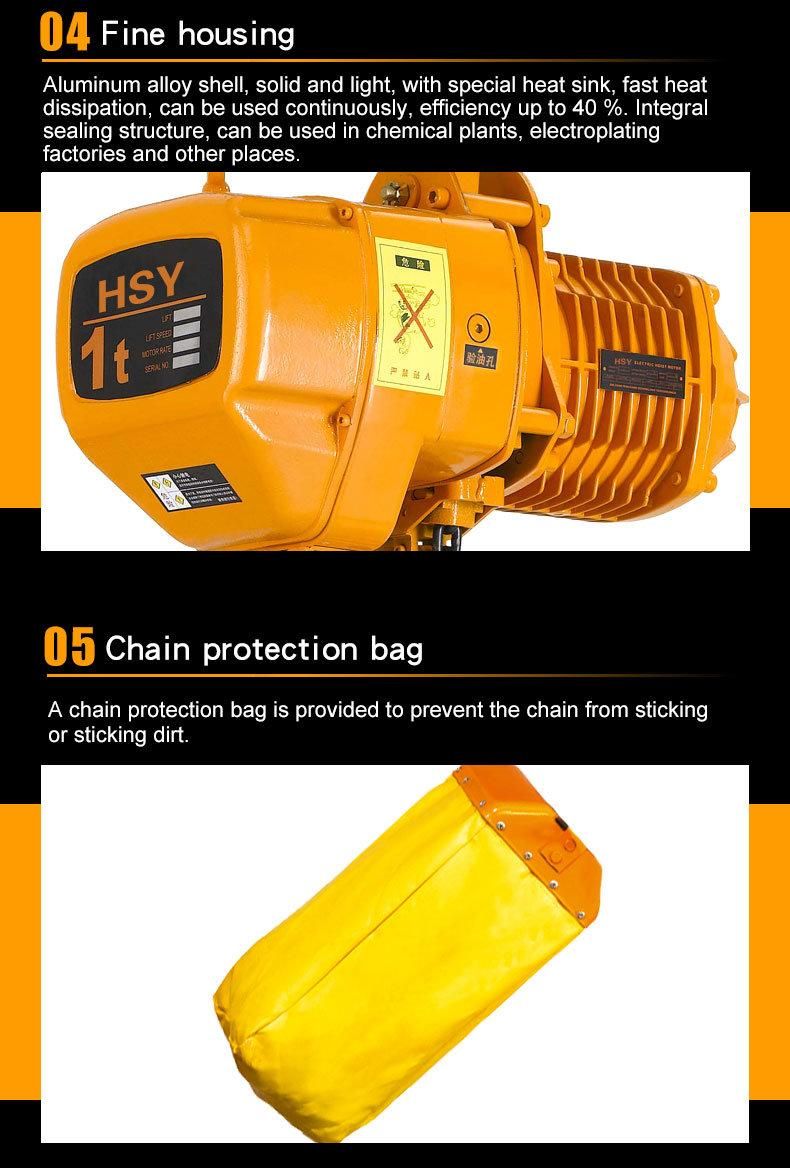

5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.
10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
Our Services Service Payment term: T/T or L/C Warranty Period: 1 year Delivery time: 5 days after order Packing: export carton and pallet
