• Model NO.：MINI-UVL
• Feature：Passenger Wheelchair Lift
• Certification：CE, ISO,Ts 16949
• Platform Size：750*1100mm
• Dimension：1615*970*90mm
• Lifting Height：750mm
• Door Width Require：800mm
• Max Floor Height：820mm
• Lifting Capacity：300kg
• Transport Package：Plywood Case
• Specification：170KG
• Trademark：Xinder
• Origin：China
• HS Code：8428909090
• Production Capacity：5000 Sets

Basic Info.

Model NO. MINI-UVL Feature Passenger Wheelchair Lift Certification CE, ISO/Ts 16949 Platform Size 750*1100mm Dimension 1615*970*90mm Lifting Height 750mm Door Width Require 800mm Max Floor Height 820mm Lifting Capacity 300kg Transport Package Plywood Case Specification 170KG Trademark Xinder Origin China HS Code 8428909090 Production Capacity 5000 Sets

Product Description

INTRODUCTION:

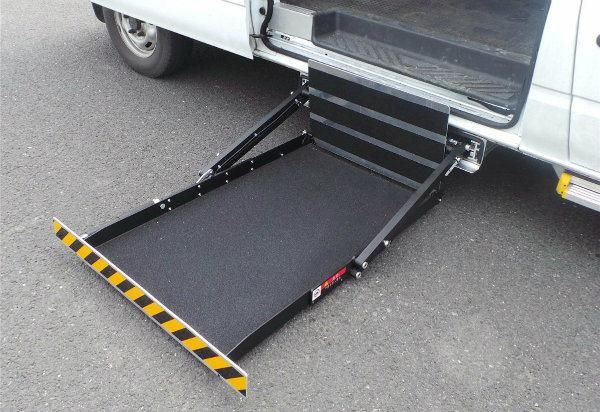

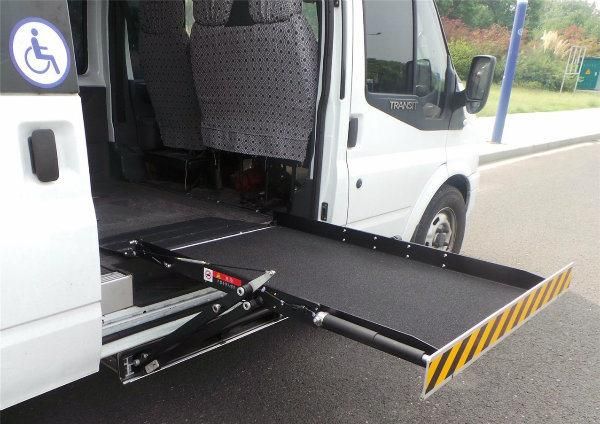

1. Mini-UVL series wheelchair lift is designed for van side door and help wheelchair passenger to get in.
2. This lift has a super thin thickness, so it can be installed at rear door or side door and occupy little space.
3. The platform is anti-ship and equipped with side boards which is more safety.
4. Mini-UVL lift is driven by hydraulic system which can ensure the stable and safe movement.
5. Loading capacity reaches 300kg.
6. There is manual function for emergency.



ADVANTAGES:

1. Super thin frame, thickness is only 90mm;
2. Anti-skip platform with protective side boards
3. Main material is aluminum which makes lift light but with high quality
4. High quality of surface treatment (cataphoresis and powder coating)
5. Manual function for emergency
6. Warning sound during movement
7. CE certificate;
8. High-gloss polyester powder coat finish to prevent corrosion;

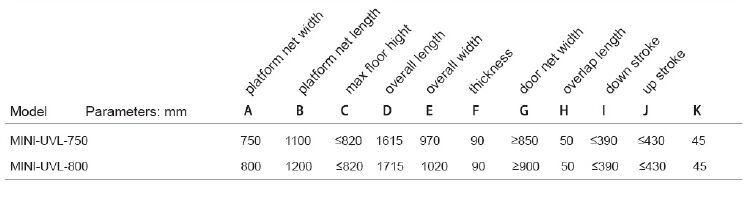

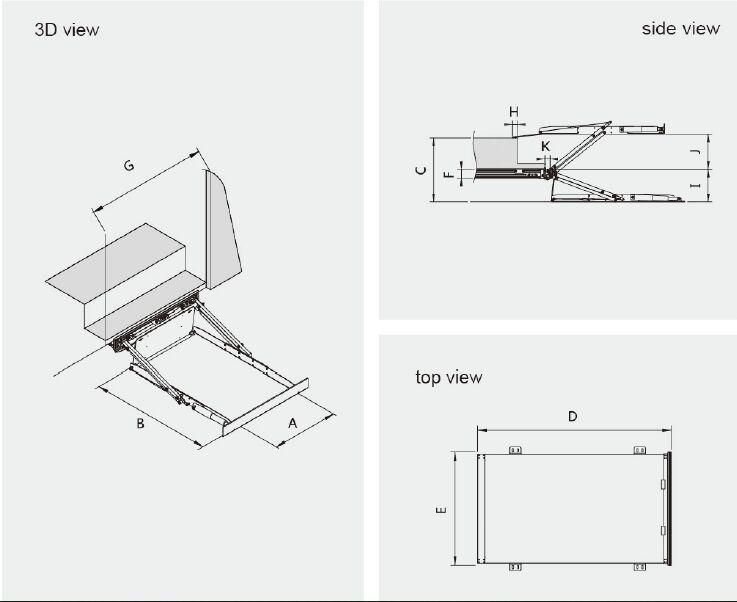

SPECIFICATIONS:
